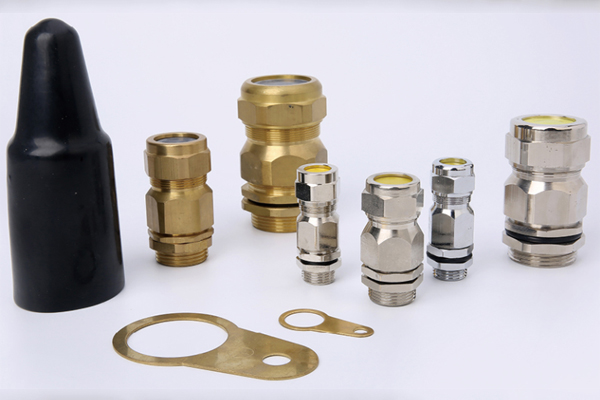

Wire Cable Clamp Stuffing Connector Explosion-proof Stainless Steel
Specification:
Material: Stainless Steel, SS304/SS316L
Sealing: Silicone Rubber, Neoprene
Treatment of surface: Passivation
Explosion-proof: Exd IIC Gb
Flame Rating: UL94-V0
Protection Rating: IP66 – 10bar
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic state: -20 C to 80 °C, short time to 100°C
Halogen Free
(In mm)
| M Metric | G Inch | Outer diameter cable | L1 Thread length | L length | L2 length | EX-mark | Protection Rating | |
| Outlet line A | Incoming line B | |||||||
| M16X1.5 | — | 8 | 7—15 | 15 | 68 | 85 | Exd IIC Gb | IP66 |
| M20X1.5 | G1/2 | 8 | 7—15 | 15 | 68 | 85 | ||
| M25X1.5 | G3/4 | 13 | 11 一20 | 15 | 72 | 87 | ||
| M32X1.5 | G1 | 16 | 14-25 | 17 | 11 | 92 | ||
| M40X1.5 | G1 1/4 | 21 | 19-33 | 17 | 11 | 95 | ||
| M50X1.5 | G1 1/2 | 25 | 24-41 | 17 | 95 | 100 | ||
| M63X1.5 | G2 | 32.5 | 30-50 | 17 | 99 | 110 | ||
| M75X1.5 | G2 1/2 | 44 | 38-64 | 17 | 113 | 127 | ||
| M85X1.5 | G3S | 52 | 47-74 | 18 | 113 | 127 | ||
| M90X1.5 | G3 | 52 | 47-74 | 18 | 127 | 137 | ||
| M100X1.5 | G4S | 64 | 57-90 | 18 | 127 | 137 | ||
| M110X1.5 | G4 | 72 | 62-103 | 18 | 127 | 137 | ||
