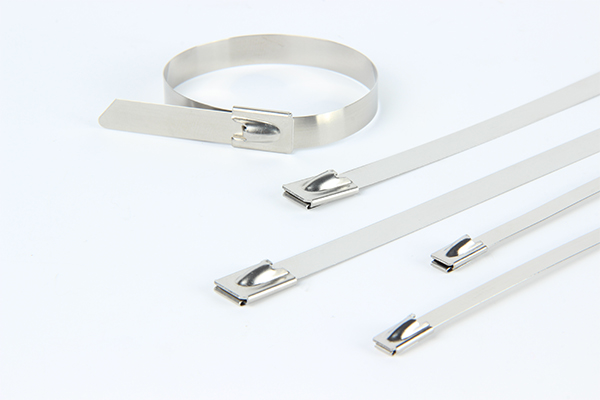

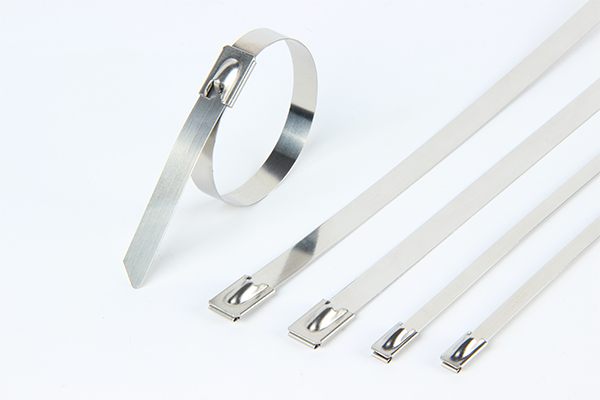

Uncoated Stainless Steel Cable Ties
Specification:
Material: Stainless Steel Grade 304 or 316
Working Temperature: -80℃ to 538℃
Description: Entirely metallic
Flammability: Fireproof
UV-resistant
Features: The Ball-Lock type self-lock system will speed the installation
| Model Number | Width | Length | Thickness | Max.Bundle Dia. | Min.Bundle Dia. | Min. Tensile Strength | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | lbs | |
| BZ-C 4.6×100 | 4.6 | 0.18 | 100 | 3.9 | 0.26 | 0.010 | 25 | 1.00 | 12.7 | 0.50 | 1100 | 250 |
| BZ-C 4.6×150 | 150 | 5.9 | 37 | 1.46 | ||||||||
| BZ-C 4.6×200 | 200 | 7.9 | 50 | 1.97 | ||||||||
| BZ-C 4.6×250 | 250 | 9.8 | 63 | 2.50 | ||||||||
| BZ-C 4.6×300 | 300 | 11.8 | 76 | 3.00 | ||||||||
| BZ-C 4.6×350 | 350 | 13.8 | 89 | 3.51 | ||||||||
| BZ-C 4.6×400 | 400 | 15.7 | 102 | 4.00 | ||||||||
| BZ-C 4.6×450 | 450 | 17.7 | 115 | 4.50 | ||||||||
| BZ-C 4.6×500 | 500 | 19.7 | 128 | 5.00 | ||||||||
| BZ-C 4.6×550 | 550 | 21.7 | 141 | 5.56 | ||||||||
| BZ-C 4.6×650 | 650 | 25.6 | 167 | 6.58 | ||||||||
| BZ-C 4.6×700 | 700 | 27.6 | 179 | 7.05 | ||||||||
| BZ-C 4.6×800 | 800 | 31.5 | 193 | 7.60 | ||||||||
| BZ-C 4.6×900 | 900 | 35.4 | 200 | 7.87 | ||||||||
| BZ-C 4.6×1000 | 1000 | 39.4 | 206 | 8.12 | ||||||||
| BZ-C 4.6×1100 | 1100 | 43.3 | 278 | 10.94 | ||||||||
| BZ-C 7.9×150 | 7.9 | 0.31 | 150 | 5.9 | 0.26 | 0.01 | 37 | 1.46 | 12.7 | 0.50 | 1500 | 340 |
| BZ-C 7.9 x 200 | 200 | 7.9 | 50 | 1.97 | ||||||||
| BZ-C 7.9×250 | 250 | 9.8 | 63 | 2.50 | ||||||||
| BZ-C 7.9×300 | 300 | 11.8 | 76 | 3.00 | ||||||||
| BZ-C 7.9×350 | 350 | 13.8 | 89 | 3.50 | ||||||||
| BZ-C 7.9×400 | 400 | 15.7 | 102 | 4.00 | ||||||||
| BZ-C 7.9×500 | 500 | 19.7 | 128 | 5.00 | ||||||||
| BZ-C 7.9×600 | 600 | 23.6 | 154 | 6.07 | ||||||||
| BZ-C 7.9×800 | 800 | 31.5 | 193 | 7.60 | ||||||||
| BZ-C 7.9×1000 | 1000 | 39.4 | 206 | 8.12 | ||||||||
| BZ-C 10×300 | 10 | 0.39 | 300 | 11.8 | 0.26 | 0.010 | 76 | 3.00 | 12.7 | 0.50 | 2100 | 480 |
| BZ-C 10×350 | 350 | 13.8 | 89 | 3.50 | ||||||||
| BZ-C 10×400 | 400 | 15.7 | 102 | 4.00 | ||||||||
| BZ-C 10×500 | 500 | 19.7 | 128 | 5.00 | ||||||||
| BZ-C 10×600 | 600 | 23.6 | 154 | 6.07 | ||||||||
| BZ-C 10×800 | 800 | 31.5 | 193 | 7.60 | ||||||||
| BZ-C 10×1000 | 1000 | 39.4 | 206 | 8.12 | ||||||||
| BZ-C 12×350 | 12 | 0.47 | 350 | 13.8 | 0.35 | 0.014 | 78 | 3.07 | 25.4 | 1.00 | 3000 | 675 |
| BZ-C 12×400 | 400 | 15.7 | 102 | 4.02 | ||||||||
| BZ-C 12×500 | 500 | 19.7 | 128 | 5.04 | ||||||||
| BZ-C 12×600 | 600 | 23.6 | 154 | 6.06 | ||||||||
| BZ-C 12×750 | 750 | 29.5 | 188 | 7.40 | ||||||||
| BZ-C 12×900 | 900 | 35.4 | 228 | 8.98 | ||||||||
| BZ-C 12×1100 | 1100 | 43.3 | 278 | 10.94 | ||||||||
| BZ-C 12.7×350 | 12.7 | 0.50 | 350 | 13.8 | 0.35 | 0.014 | 78 | 3.07 | 25.4 | 1.00 | 3200 | 720 |
| BZ-C 12.7×400 | 400 | 15.7 | 102 | 4.02 | ||||||||
| BZ-C 12.7×500 | 500 | 19.7 | 128 | 5.04 | ||||||||
| BZ-C 12.7×600 | 600 | 23.6 | 154 | 6.06 | ||||||||
| BZ-C 12.7×750 | 750 | 29.5 | 188 | 7.40 | ||||||||
| BZ-C 12.7×900 | 900 | 35.4 | 228 | 8.98 | ||||||||
| BZ-C 12.7×1100 | 1100 | 43.3 | 278 | 10.94 | ||||||||
| BZ-C 15×350 | 15 | 0.59 | 350 | 13.8 | 0.35 | 0.014 | 78 | 3.07 | 25.4 | 1.00 | 4000 | 900 |
| BZ-C 15×400 | 400 | 15.7 | 102 | 4.02 | ||||||||
| BZ-C 15×450 | 450 | 17.7 | 108 | 4.25 | ||||||||
| BZ-C 15×600 | 600 | 23.6 | 148 | 5.83 | ||||||||
| BZ-C 15×750 | 750 | 29.5 | 184 | 7.24 | ||||||||
| BZ-C 15×900 | 900 | 35.4 | 220 | 8.66 | ||||||||
