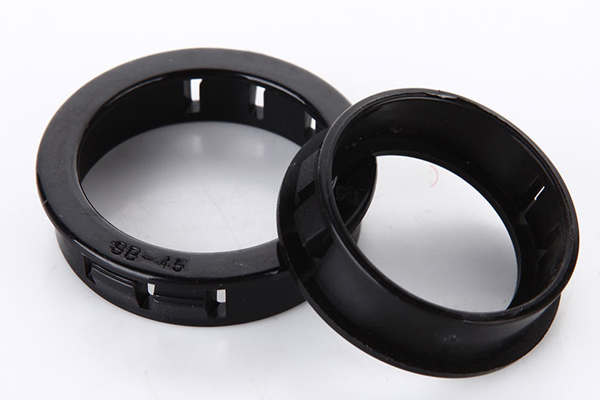

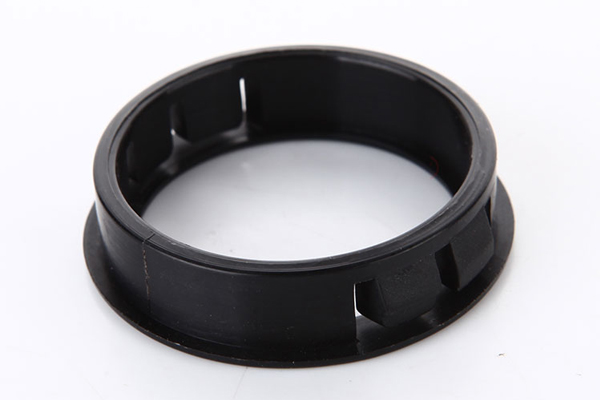

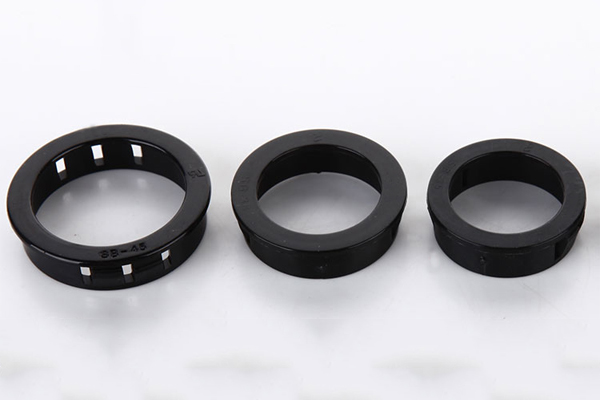

Snap Bushing Nylon Snap Bushings SB
Specification：
Material: Nylon 66
Flammability: 94V-2
Certificate: UL
Color: White, Black, Available

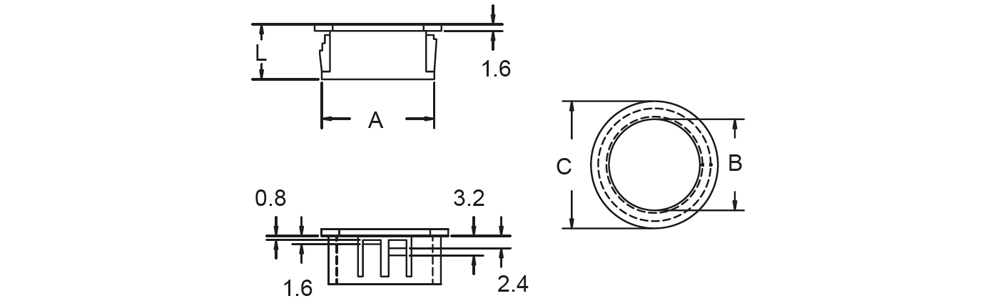

| Item No. | Mounting Hole A (mm) |
Max. cable range B(mm) |
Covering C(mm) |
Height L(mm) |
Packing |
| SB-8 | 7.8 | 5.8 | 10.5 | 8 | 100pcs |
| SB-10 | 9.5 | 6.4 | 12 | 10.3 | |
| SB-13 | 12.7 | 8 | 15 | 10.3 | |
| SB-16 | 15.9 | 12.7 | 18.6 | 10.3 | |
| SB-19 | 19 | 14.3 | 21.7 | 10.3 | |
| SB-22 | 22.2 | 17.5 | 24.2 | 11.5 | |
| SB-26 | 25.5 | 19.1 | 28.5 | 11.5 | |
| SB-28 | 28 | 23 | 30.7 | 11.5 | |
| SB-30 | 30 | 24.1 | 33.3 | 11.5 | |
| SB-35 | 34.2 | 29.3 | 37.5 | 11.3 | |
| SB-38 | 38.1 | 29 | 42.1 | 11.4 | |
| SB-45 | 44.5 | 35.4 | 47.8 | 11.6 | |
| SB-50 | 50.1 | 41.6 | 54.6 | 11.8 |
| Item No. | Mounting Hole A (mm) |
Max. cable range B(mm) |
Covering C(mm) |
Height L(mm) |
Packing |
| SB-8A | 7.8 | 5.8 | 10.5 | 8 | 100pcs |
| SB-10A | 9.5 | 6.4 | 12 | 10.3 | |
| SB-13A | 12.7 | 8 | 15 | 10.3 | |
| SB-16A | 15.9 | 12.7 | 18.6 | 10.3 | |
| SB-19A | 19 | 14.3 | 21.7 | 10.3 | |
| SB-22A | 22.2 | 17.5 | 24.2 | 11.5 | |
| SB-26A | 25.5 | 19.1 | 28.5 | 11.5 | |
| SB-28A | 28 | 23 | 30.7 | 11.5 | |
| SB-30A | 30 | 24.1 | 33.3 | 11.5 | |
| SB-35A | 34.2 | 29.3 | 37.5 | 11.3 | |
| SB-38A | 38.1 | 29 | 42.1 | 11.4 | |
| SB-45A | 44.5 | 35.4 | 47.8 | 11.6 | |
| SB-50A | 50.1 | 41.6 | 54.6 | 11.8 |
