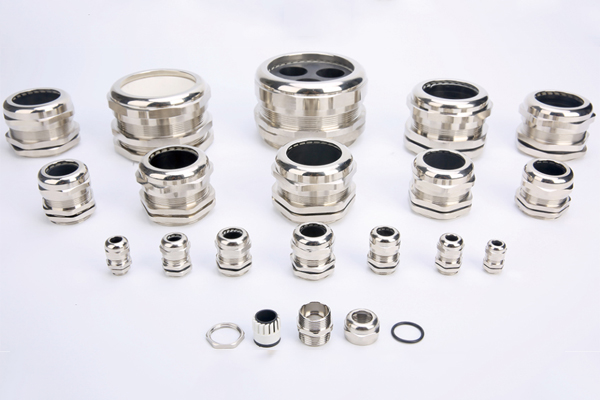

Small Range Brass Cable Gland Waterproof
Specification:
Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS, approved

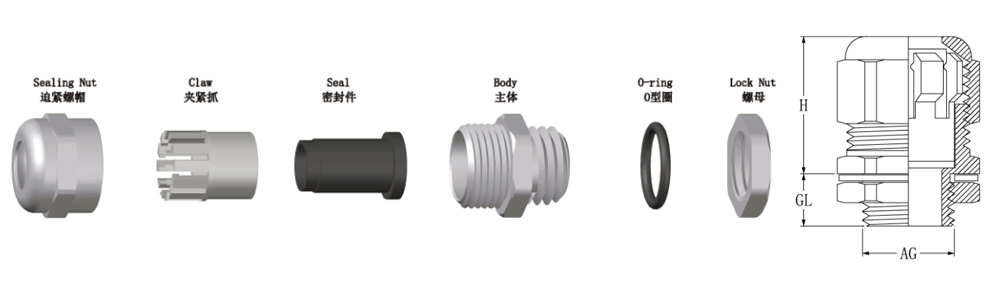

(In mm)
| Item | Cable Range | Thread Length GL |
Thread O.D. AG |
Joint Length H |
Spanner size | Item No. |
| M10X1 | 2-5 | 6.5 | 10.0 | 17 | 14 | BSRM10-5 |
| M12X1.5 | 2-5 | 6.5 | 12.0 | 17 | 14 | BSRM12-5 |
| MMX 1.5 | 3-6 | 8 | 14.0 | 18 | 17 | BSRM14-6 |
| M16X1.5 | 3-6 | 8 | 16.0 | 19 | 18 | BSRM16-6 |
| M18X1.5 | 3-7 | 8 | 18.0 | 20 | 20 | BSRM18-7 |
| M20X1.5 | 5-10 | 8 | 20.0 | 21 | 22 | BSRM20-10 |
| M22X1.5 | 8-12 | 8 | 22.0 | 22 | 24 | BSRM22-12 |
| M24X1.5 | 8-12 | 9 | 24.0 | 22 | 24/27 | BSRM24-12 |
| M25X1.5 | 8-12 | 9 | 25.0 | 22 | 24/27 | BSRM25-12 |
| M27X1.5 | 12-16 | 9 | 27.0 | 27 | 30 | BSRM27-16 |
| M30X2 | 12-16 | 9 | 30.0 | 27 | 30/32 | BSRM30-16 |
| M32X1.5 | 13-18 | 10 | 32.0 | 29 | 35 | BSRM32-18 |
| M33X2 | 14-20 | 10 | 33.0 | 29 | 35/36 | BSRM33-20 |
| M36X1.5 | 13-18 | 10 | 36.0 | 31 | 40 | BSRM36-18 |
| M36X1.5 | 15-22 | 10 | 36.0 | 31 | 40 | BSRM36-22 |
| M40X1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | BSRM40-25 |
| M47X1.5 | 23-30 | 11 | 47.0 | 37 | 50 | BSRM47-30 |
| M48X2 | 23-30 | 11 | 48.0 | 37 | 50/52 | BSRM48-30 |
| M50X1.5 | 30-35 | 13 | 50.0 | 37 | 57/55 | BSRM50-35 |
| M60X1.5 | 35-40 | 14 | 60.0 | 38 | 64 | BSRM60-40 |
| M63X1.5 | 35-40 | 14 | 63.0 | 38 | 64/68 | BSRM63-40 |
