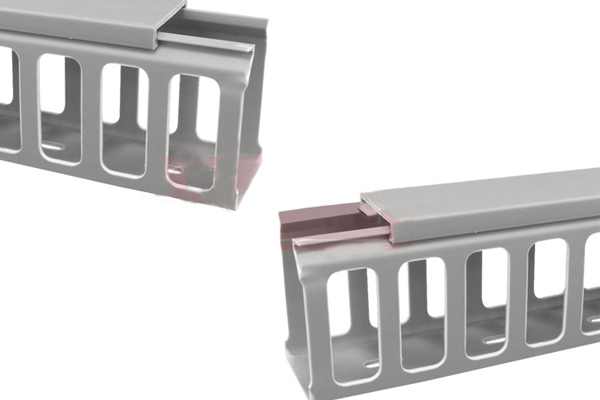

Slotted Cable Ducting BVDCL

Slotted Cable Ducting BVDCL
Category:

Slotted Cable Ducting Wiring Duct 17mm*8mm

Specification:

Material: Rigid PVC
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 65°C
Certificates: UL, CE, RoHS, REACH
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
Our Wide Slotted Cable Ducting is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.

Specification: Material: Rigid PVC Color Option: Gray, white, blue, black and other special colors Work Temperature: -40°C to 65°C Certificates: UL, CE, RoHS, REACH UL Recognized continuous use temperature: 50°C (122°F) UL94 Flammability Rating of V-0 Provided with mounting holes Gray is the common color, other colors need more MOQ Standard Length:2M/PCS Our Wide Slotted Cable Ducting is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.

Item No. W*H Hole width Tooth width Wire Capacity Packing/M
Q P Calculated in terms of 2.0 square feet
BVD2560CL 25*60 17 8 40~50pcs 100
BVD3060CL 30*60 17 8 60~80pcs 80
BVD4060CL 40*60 17 8 100~115pcs 60
BVD4560CL 45*60 17 8 110~125pcs 30
BVD5060CL 50*60 17 8 120~135pcs 60
BVD6060CL 60*60 17 8 120~135pcs 48
BVD8060CL 80*60 17 8 180~210pcs 36
BVD10060CL 100*60 17 8 240~290pcs 48
BVD11060CL 110*60 17 8 250~300pcs 48
