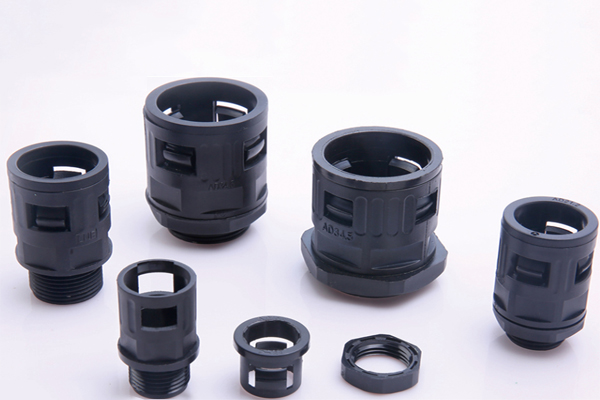

Plastic Pipe Fittings Nylon Connector Flexible NKM
Specification:
Material: Nylon PA66
Flammability Rating: UL94-2
Certificate: CE, RoHS
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic temperature: -20°C to 80°C, short time to 100°C
(In mm)
| Item | Conduit size | Thread O.D. AG |
Thread Length GL |
Item No. |
| M12 x 1.5 | AD 10.0 | 12 | 8.5 | NKM12 -10.0 |
| M12 x 1.5 | AD 13.0 | 12 | 10 | NKM12 -13.0 |
| M16 x 1.5 | 16 | 10 | NKM16 -13.0 | |
| M18 x 1.5 | 18 | 10 | NKM18 -13.0 | |
| M16 x 1.5 | AD 15.8 | 16 | 10 | NKM16 -15.8 |
| M18 x 1.5 | 18 | 12.5 | NKM18 -15.8 | |
| M20 x 1.5 | 20 | 12.5 | NKM20 -15.8 | |
| M20 x 1.5 | AD18.5 | 20 | 12.5 | NKM20 -18.5 |
| M22 x 1.5 | 22 | 12.5 | NKM22 -18.5 | |
| M20 x 1.5 | AD21.2 | 20 | 13 | NKM20 -21.2 |
| M24 x 1.5 | 24 | 13 | NKM24 -21.2 | |
| M25 x 1.5 | 25 | 13 | NKM25 -21.2 | |
| M25 x 1.5 | AD25.0 | 25 | 13 | NKM25 -25.0 |
| M25 x 1.5 | AD28.5 | 25 | 13 | NKM25 -28.5 |
| M27 x 1.5 | 21 | 13 | NKM27 -28.5 | |
| M30 x 1.5 | 30 | 13 | NKM30 -28.5 | |
| M32 x 1.5 | 32 | 13 | NKM32 -28.5 | |
| M32 x 1.5 | AD34.5 | 32 | 14 | NKM32 -34.5 |
| M36 x 1.5 | 36 | 14 | NKM36 -34.5 | |
| M40 x 1.5 | 40 | 14 | NKM40 -34.5 | |
| M40 x 1.5 | AD42.5 | 40 | 15 | NKM40 -42.5 |
| M48 x 1.5 | 48 | 15 | NKM48 -42.5 | |
| M50 x 1.5 | AD54.5 | 50 | 16 | NKM50 -54.5 |
| M63 x 1.5 | 60 | 16 | NKM63 -54.5 |
