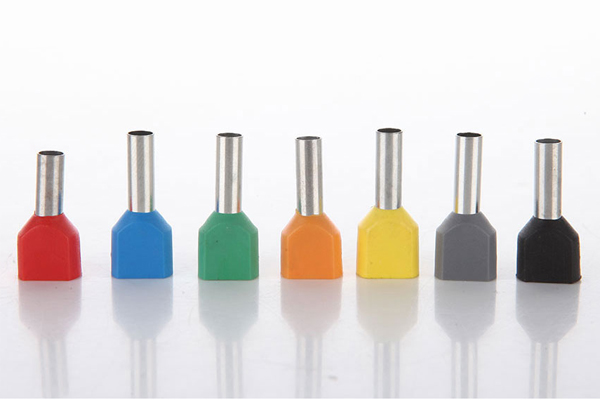

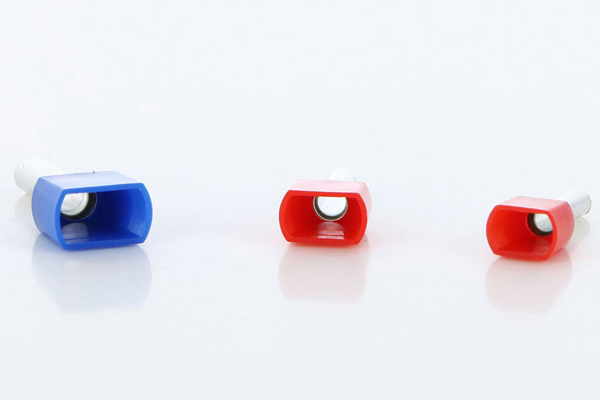

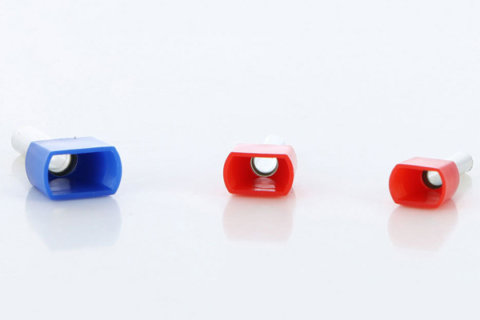

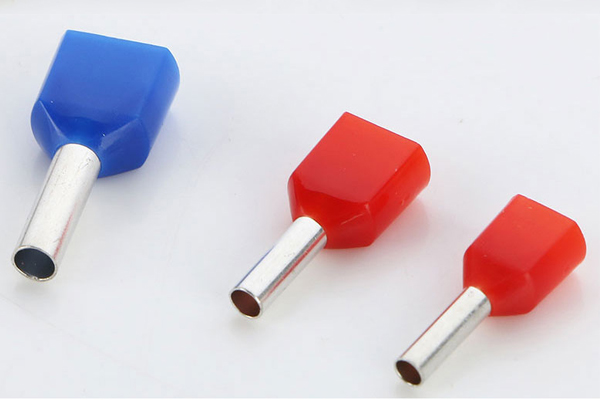

Nylon Insulated Twin Cord Terminals Electrical Terminal Wire Connectors BEWN
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Nylon
Certification: CE, RoHS, UL Approved
Limited Working Temperature: -14℃ to 105℃ Ui=300V
Twin Cord End Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Limited W.T: 105℃ Ui=300V Terminal material: Tin coated copper | |||||||||

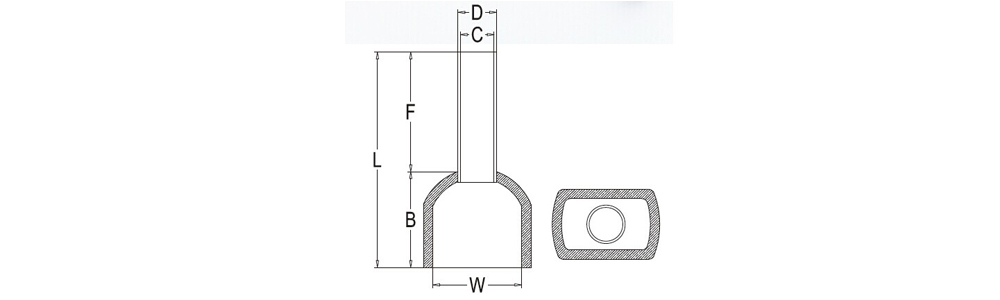

| Item No. | CONDUCTOR | DIMENSION（mm) | Color | ||||||
| F | L | W | B | DΦ | CΦ | Germany | France | ||
| BEW0.5-8N | 2 x 0.5 | 8 | 14.5 | 8 | 6.5 | 1.8 | 1.5 | White | White |
| BEW0.75-8N | 2 x 0.75 | 8 | 14.7 | 8 | 6.7 | 2.1 | 1.8 | Blue | Gray |
| BEW0.75-10N | 2 x 0.75 | 10 | 16.7 | 10 | 6.7 | 2.1 | 1.8 | ||
| BEW1.0-8N | 2 x 1.0 | 8 | 15.1 | 8 | 7.1 | 2.3 | 2 | Red | Red |
| BEW1.0-10N | 2 x 1.0 | 10 | 17.1 | 10 | 7.1 | 2.3 | 2 | ||
| BEW1.5-8N | 2 x 1.5 | 8 | 15.5 | 8 | 7.2 | 2.6 | 2.3 | Black | Yellow |
| BEW1.5-12N | 2 x 1.5 | 12 | 19.5 | 12 | 7.5 | 2.6 | 2.3 | ||
| BEW2.5-10N | 2 x 2.5 | 10 | 18.5 | 10 | 8.5 | 3.3 | 2.9 | Gray | Blue |
| BEW2.5-13N | 2 x 2.5 | 13 | 21.5 | 13 | 8.5 | 3.3 | 2.9 | ||
| BEW4.0-12N | 2 x 4.0 | 12 | 23.1 | 12 | 11.1 | 4.2 | 3.8 | Orange | Gray |
| BEW6.0-14N | 2 x 6.0 | 14 | 26.1 | 14 | 12.1 | 5.3 | 4.9 | Green | Yellow |
| BEW10 – 14N | 2 x 10.0 | 14 | 26.6 | 14 | 12 | 6.9 | 6.5 | Brown | Red |
| BEW16 -14N | 2 x 16.0 | 14 | 31.3 | 8.9 | 17.3 | 8.7 | 8.3 | Milk | Blue |
