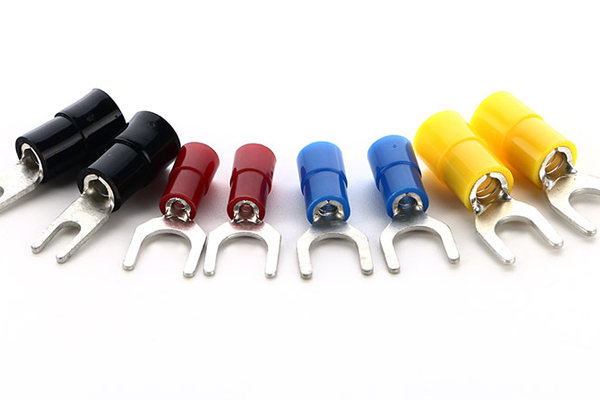

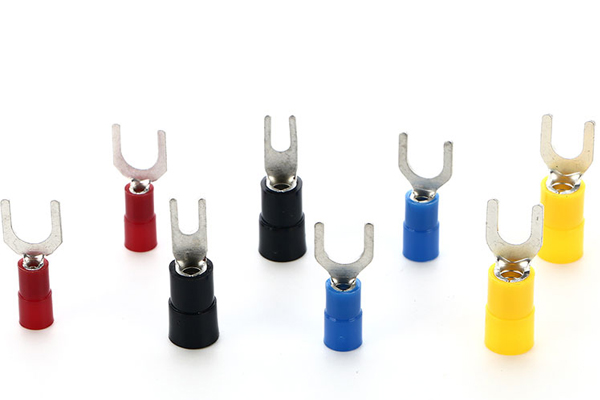

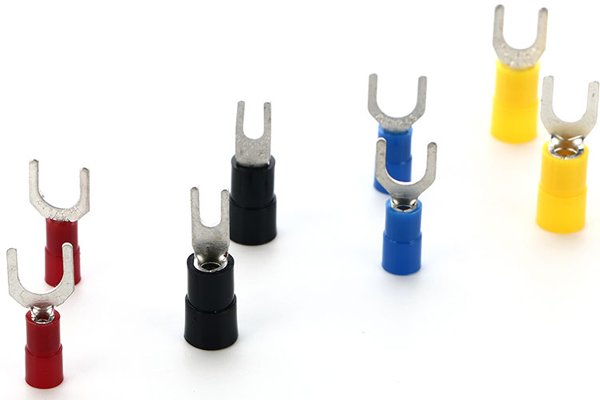

Nylon Insulated Spade Terminals Wire Connector BYFN
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Nylon, PA66
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 105℃ Heat-resistance
Nylon Insulated Spade Terminals offer a termination security in high vibration areas with easy insert insulator, easy to process. hard connecting inside and groove construction. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance. Halogen-free, temperature up to 105 °C
| Size of cable: 0.5-1.5mm²(American standar 22-16) Max.Current=19A.Package:1000Pcs | ||||||||
| Item No. | DIMENSION | color | ||||||
| America | Dia. of bolt | B | L | F | H | D Φ | ||
| Bolt no. | D2 | mm | mm | mm | mm | mm | ||
| BYF1.25-3N | #4 | 3.2mm | 5.7 | 22.2 | 6.5 | 11 | 4 | Red |
| BYFS1.25-3.5N | #6 | 3.7mm | 5.7 | 22.2 | 6.5 | |||
| BYFL1.25-3.5N | #6 | 3.7mm | 6.4 | 22.2 | 6.5 | |||
| BYFS1.25-4N | #8 | 4.3mm | 6.4 | 22.2 | 6.5 | |||
| BYFM1.25-4N | #8 | 4.3mm | 7.2 | 22.2 | 6.5 | |||
| BYFL1.25-4N | #8 | 4.3mm | 8.1 | 22.2 | 6.5 | |||
| BYFS1.25-5N | #10 | 5.3mm | 8.1 | 22.2 | 6.5 | |||
| BYFL1.25-5N | #10 | 5.3mm | 9.5 | 22.2 | 6.5 | |||
| BYFS1.25-6N | 1/4 | 6.4mm | 9.5 | 22.2 | 6.5 | |||
| BYFL1.25-6N | 1/4 | 6.4mm | 12 | 28.2 | 11 | |||
| Size of cable: 0.5-2.5mm²(American standar 16-14) Max.Current=27A.Package:1000Pcs | ||||||||
| Item No. | DIMENSION | color | ||||||
| America | Dia. of bolt | B | L | F | H | D Φ | ||
| Bolt no. | D2 | mm | mm | mm | mm | mm | ||
| BYF2-3N | #4 | 3.2mm | 5.7 | 22.2 | 6.5 | 11 | 4.5 | Blue |
| BYFS2-3.5N | #6 | 3.7mm | 5.7 | 22.2 | 6.5 | |||
| BYFL2-3.5N | #6 | 3.7mm | 6 | 22.2 | 6.5 | |||
| BYFS2-4N | #8 | 4.3mm | 6.4 | 22.2 | 6.5 | |||
| BYFM2-4N | #8 | 4.3mm | 7.2 | 22.2 | 6.5 | |||
| BYFL2-4N | #8 | 4.3mm | 8.1 | 22.2 | 6.5 | |||
| BYFS2-5N | #10 | 5.3mm | 8.1 | 22.2 | 6.5 | |||
| BYFL2-5N | #10 | 5.3mm | 9.5 | 22.2 | 6.5 | |||
| BYFS2-6N | 1/4 | 6.4mm | 9.5 | 22.2 | 6.5 | |||
| BYFL2-6N | 1/4 | 6.4mm | 12 | 28.2 | 11 | |||
| Size of cable: 4-6mm²(American standar 12-10) Max.Current=37A.Package:500Pcs | ||||||||
| Item No. | DIMENSION | color | ||||||
| America | Dia. of bolt | B | L | F | H | D Φ | ||
| Bolt no. | D2 | mm | mm | mm | mm | mm | ||
| BYF3.5-3N | #4 | 3.2mm | 5.7 | 25.7 | 7 | 13.4 | 6.4 | Black |
| BYF3.5-4N | #8 | 4.3mm | 8 | 25.7 | 7 | |||
| BYF3.5-5N | #10 | 5.3mm | 5.3 | 25.7 | 7 | |||
| BYF3.5-6N | 1/4 | 6.5mm | 6.5 | 25.7 | 7 | |||
| Insulation square：4～6mm²(AWG12～10)Max current: lmax=48A Package:1000Pcs | ||||||||
| Item No. | DIMENSION | color | ||||||
| America | Dia. of bolt | B | L | F | H | D Φ | ||
| Bolt no. | D2 | mm | mm | mm | mm | mm | ||
| BYFS5.5-3.5N | #6 | 3.7mm | 7.2 | 24.4 | 7.5 | 13.4 | 6.4 | Yellow |
| BYF5.5-3.5N | #6 | 3.7mm | 8.3 | 25.2 | 7.5 | |||
| BYFS5.5-4N | #8 | 4.3mm | 8.3 | 26.9 | 7.5 | |||
| BYFL5.5-4N | #8 | 4.3mm | 9 | 26.9 | 7.5 | |||
| BYF5.5-5N | #10 | 5.3mm | 9 | 27 | 7.5 | |||
| BYFS5.5-6N | 1/4 | 6.5mm | 9 | 27 | 7.5 | |||
| BYFL5.5-6N | 1/4 | 6.5mm | 12 | 31.5 | 12 | |||
| BYF5.5-8N | 5/16 | 8.4mm | 14 | 30.5 | 10.5 | |||
