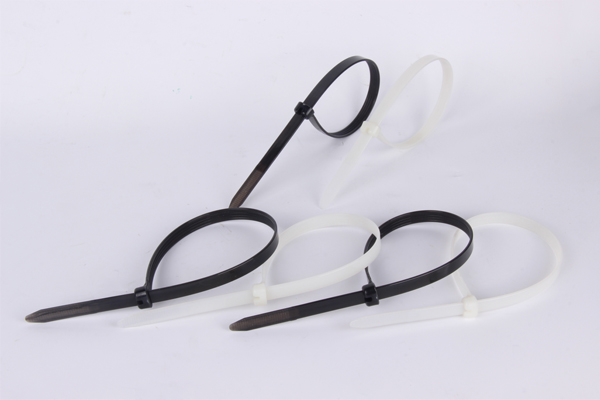

Nylon Cable Ties with Stainless Steel Barb Inlay NZ-1
Specification：
Material: Nylon 66

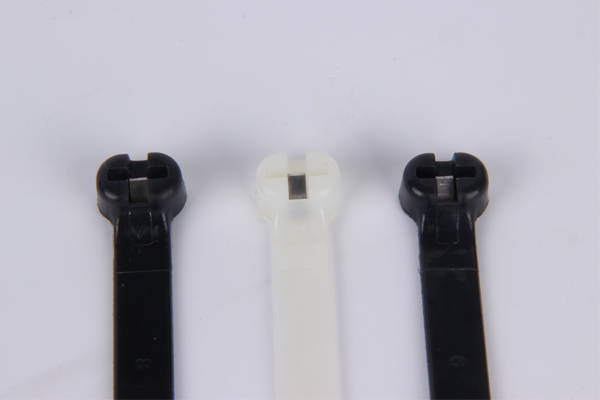

Inlay: Stainless Steel 304 or 316
Working Temperature: -40℃ to 85℃
Color: Black, white, customized available
Flammability: UL94V-2
UV-resistant, Halogen Free, Non-toxic
Features: Nylon Stainless Steel Inlay cables ties offer extreme strength and durability over normal nylon cable ties. Nylon Cable Ties with Stainless Steel Barb Inlay provides consistent performance for the longer time. Higher tension strengthens than standards.
| Item No | Specification(WxL) (mm) |
Effective length (mm) |
Max.Bundle Dia. (mm) | Min. Tensile Strength | |
| N | lbs | ||||
| NZ-1 | 3X100 | 80 | 25 | 80 | 18 |
| NZ-1 | 4X150 | 120 | 35 | 180 | 40 |
| NZ-1 | 4X200 | 170 | 50 | ||
| NZ-1 | 5X250 | 200 | 65 | 220 | 50 |
| NZ-1 | 5X300 | 115 | 80 | ||
| NZ-1 | 8X145 | 260 | 35 | 500 | 112 |
| NZ-1 | 8X175 | 145 | 45 | ||
| NZ-1 | 8X200 | 170 | 50 | ||
| NZ-1 | 8X240 | 200 | 60 | ||
| NZ-1 | 8X300 | 260 | 80 | ||
| NZ-1 | 8X400 | 360 | 110 | ||
| NZ-1 | 10X300 | 260 | 80 | 550 | 124 |
| NZ-1 | 10X350 | 310 | 95 | ||
| NZ-1 | 10X400 | 360 | 110 | ||
| NZ-1 | 10X450 | 410 | 130 | ||
| NZ-1 | 10X550 | 510 | 160 | ||
| NZ-1 | 10X600 | 560 | 175 | ||
