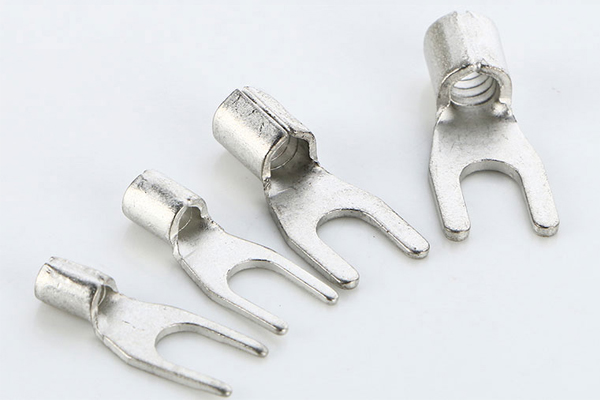

Non-Insulated Fork Terminal Spade Terminal Wire Connector Y

Specification:

Material: Copper, Tin-plated Copper
Certification: CE, RoHS, UL Approved
Working Temperature: -40 degrees to 80-degree
Non-Insulated Fork Terminal can be crimped or soldered, widely used in the electrical wire connecting of the switchboard, mechanical equipment factory and so on

Size of cable: 0.5-1.5mm²(American standar 22-16) Max.Current=19A
Item No DIMENSION
American bolt number Dia.of bolt
D2		 B
mm		 L
mm		 F
mm		 H
mm		 Dφ
mm		 dφ
mm
Y1.25-3 #4 3.2mm 5.7 16 6.5 4.8 3.4 1.7
YS1.25-3.5 #6 3.7mm 5.7 16 6.5
YL1.25-3.5 #6 3.7mm 6.4 16 6.5
YS1.25-4 #8 4.3mm 6.4 16 6.5
YM1.25-4 #8 4.3mm 7.2 16 6.5
YL1.25-4 #8 4.3mm 8.1 16 6.5
YS1.25-5 #10 5.3mm 8.1 16 6.5
YL1.25-5 #10 5.3mm 9.5 16 6.5
YS1.25-6 1/4 6.5mm 9.5 16 6.5
YL1.25-6 1/4 6.5mm 12 22 11
Size of cable: 1.5-2.5mm²(American standar 16-14) Max.Current=27A
Item No DIMENSION
American bolt number Dia.of bolt
D2		 B
mm		 L
mm		 F
mm		 H
mm		 Dφ
mm		 dφ
mm
Y2-3 #4 3.2mm 5.7 16 6.5 4.8 4.1 2.3
YS2-3.5 #6 3.7mm 5.7 16 6.5
YL 2-3.5 #6 3.7mm 6 16 6.5
YS 2-4 #8 4.3mm 6.4 16 6.5
YM2-4 #8 4.3mm 7.2 16 6.5
YL2-4 #8 4.3mm 8.1 16 6.5
YS2-5 #10 5.3mm 8.1 16 6.5
YL2-5 #10 5.3mm 9.5 16 6.5
YS2-6 1/4 6.5mm 9.5 16 6.5
YL2-6 1/4 6.5mm 12 22 11
Size of cable: 2.5-4mm²(American standar 14-12) Max.Current=37A
Item No DIMENSION
American bolt number Dia.of bolt
D2		 B
mm		 L
mm		 F
mm		 H
mm		 Dφ
mm		 dφ
mm
Y3.5-3 #4 3.2mm 5.7 18.3 7 6 5 3
Y3.5-4 #8 4.3mm 8 18.3 7
Y3.5-5 #10 5.3mm 8 18.3 7
Y3.5-6 1/4 6.5mm 12 21.5 12.1
Size of cable: 4-6mm²(American standar 12-10) Max.Current=48A
Item No DIMENSION
American bolt number Dia.of bolt
D2		 B
mm		 L
mm		 F
mm		 H
mm		 Dφ
mm		 dφ
mm
Y5.5-3.5 #6 3.7mm 8.3 19.5 7.5 6.8 5.6 3.4
Y5.5-3.5 #6 3.7mm 8.3 18.5 7
YS5.5-4 #8 4.3mm 8.3 19.5 7.5
YL5.5-4 #8 4.3mm 9 18.2 7.5
Y5.5-5 #10 5.3mm 9 18.2 7.5
YS5.5-6 1/4 6.5mm 9 18.2 7.5
YL5.5-6 1/4 6.5mm 12 25.5 12
Y5.5-8 5/16 8.4mm 14 24.5 11.5
Size of cable: 6-10mm²(American standar 8) Max.Current=62A
Item No DIMENSION
American bolt number Dia.of bolt
D2		 B
mm		 L
mm		 F
mm		 H
mm		 Dφ
mm		 dφ
mm
Y8-4 #8 4.3mm 9 20.8 8.1 8.5 7.2 4.5
Y8-5 #10 5.3mm 9 20.8 8.1
Y8-6 1/4 6.5mm 12 23.8 9.2
Y8-8 5/16 8.4mm 13.8 25.4 10.7
Y8-10 3/8 10.5mm 15.9 25.4 10.7
Size of cable: 10-16mm²(American standar 6) Max.Current=88A
Item No DIMENSION
American bolt number Dia.of bolt
D2		 B
mm		 L
mm		 F
mm		 H
mm		 Dφ
mm		 dφ
mm
Y14-4 #8 4.3mm 11 25.5 10.7 10.5 9 5.8
Y14-5 #10 5.3mm 11 25.5 10.7
Y14-6 1/4 6.5mm 11 25.5 10.7
Y14-8 5/16 8.4mm 13.8 28.5 10.7
Y14-10 3/8 10.5mm 15.9 28.5 10.7
Size of cable: 16-25mm²(American standar 4) Max.Current=115A
Item No DIMENSION
American bolt number Dia.of bolt
D2		 B
mm		 L
mm		 F
mm		 H
mm		 Dφ
mm		 dφ
mm
Y22-5 #10 5.3mm 11 27.7 9.5 12 11.5 7.7
Y22-6 1/4 6.5mm 11 27.7 9.5
Y22-8 5/16 8.4mm 16.5 33.5 13.5
Y22-10 3/8 10.5mm 16.5 33.5 13.5
Size of cable: 35-50mm²(American standar 2) Max.Current=160A
Item No DIMENSION
American bolt number Dia.of bolt
D2		 B
mm		 L
mm		 F
mm		 H
mm		 Dφ
mm		 dφ
mm
Y38-6 1/4 6.5mm 15.9 35 13.5 14 13.3 9.4
Y38-8 5/16 8.4mm 15.9 35 13.5
Y38-10 3/8 10.5mm 15.9 35 13.5
Y38-12 1/2 13.0mm 19 39 15.5
