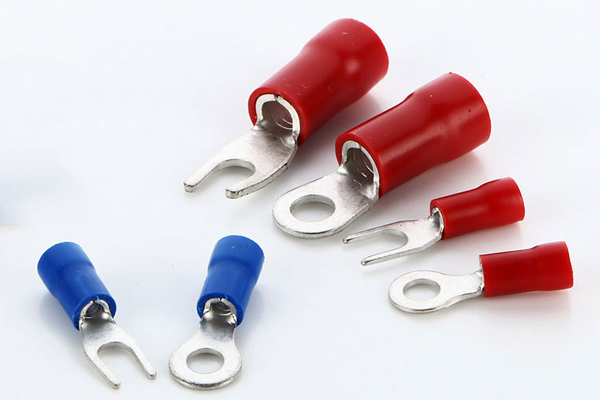

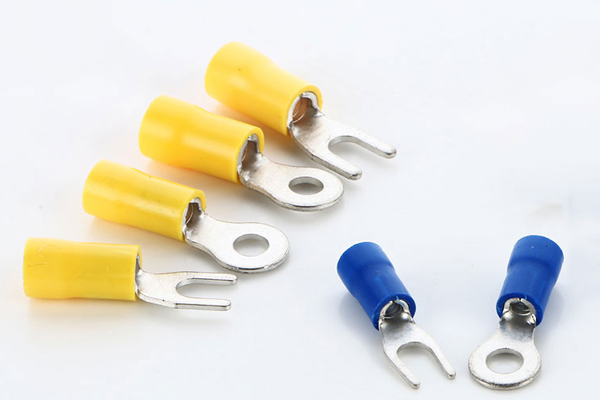

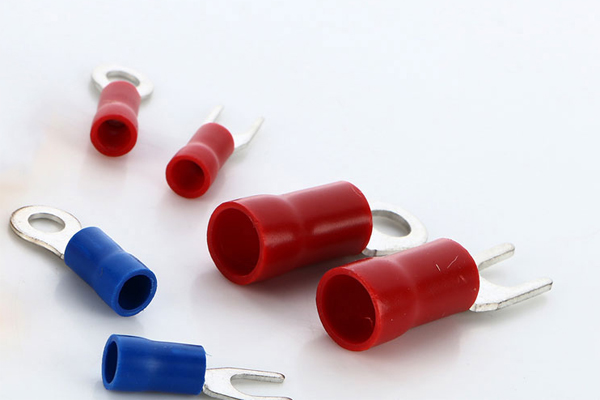

Insulated Ring Terminal Wire Connector Funnel Entry Vinyl RF Type
Specification:
Material: Copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40 degrees to 80-degree heat resistant
Insulated ring terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

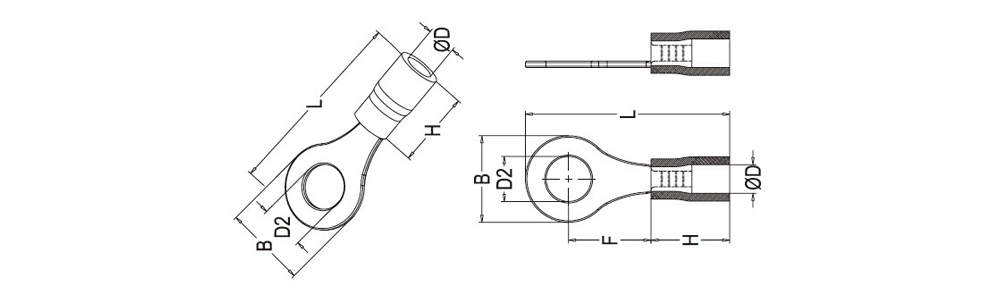

| Item No. | AWG/mm2 | Diamater of bolt D2 |
B mm |
L mm |
F mm |
H mm |
Dφ mm |
Color |
| BRF1.25-3 | AWG:22-16 mm2:0.5-1.5 Current:19A Packing:1000PCS |
3.2mm | 5.7 | 17.8 | 4.95 | 10 | 4.3 | Red |
| BRFS1.25-3.5 | 3.7mm | 5.7 | 17.8 | 4.95 | ||||
| BRFM1.25-3.5 | 3.7mm | 6.6 | 20.1 | 6.3 | ||||
| BRFL1.25-3.5 | 3.7mm | 8 | 21.5 | 7 | ||||
| BRFS1.25-4 | 4.3mm | 6.6 | 20.1 | 6.3 | ||||
| BRFL1.25-4 | 4.3mm | 8 | 21.5 | 7 | ||||
| BRF1.25-5 | 5.3mm | 8 | 21.5 | 7 | ||||
| BRFL1.25-5 | 5.3mm | 9.8 | 23 | 8.5 | ||||
| BRFS1.25-6 | 6.5mm | 9.8 | 23 | 8.5 | ||||
| BRF1.25-6 | 6.5mm | 11.6 | 27.5 | 11.1 | ||||
| BRF1.25-8 | 8.4mm | 11.6 | 27.5 | 11.1 | ||||
| BRF1.25-10 | 10.5mm | 13.6 | 31.6 | 13.9 | ||||
| BRF1.25-12 | 13.0mm | 19.2 | 36 | 16.5 | ||||
| BRF2-3 | AWG:16-14 mm2:1.5-2.5 Current:27A Packing:1000PCS |
3.2mm | 6.6 | 17.8 | 4.3 | 10 | 4.9 | Blue |
| BRFS2-3.5 | 3.7mm | 6.6 | 17.8 | 4.3 | ||||
| BRFM2-3.5 | 3.7mm | 6.6 | 21 | 7 | ||||
| BRFL2-3.5 | 3.7mm | 8.5 | 22.5 | 7.75 | ||||
| BRFS2-4 | 4.3mm | 6.6 | 19.5 | 6.5 | ||||
| BRFL2-4 | 4.3mm | 8.5 | 22.5 | 7.75 | ||||
| BRFS2-5 | 5.3mm | 8.5 | 22.5 | 7.75 | ||||
| BRFL2-5 | 5.3mm | 9.5 | 22.5 | 7.25 | ||||
| BRF2-6 | 6.5mm | 12 | 27.6 | 11 | ||||
| BRF2-8 | 8.4mm | 12 | 27.6 | 11 | ||||
| BRF2-10 | 10.5mm | 14 | 31 | 13.9 | ||||
| BRF2-12 | 13.0mm | 19.2 | 36.5 | 16.5 | ||||
| BRF3.5-4 | AWG:12-14 mm2:2.5-4 Current:37A Packing:500PCS |
4.3mm | 8 | 24.5 | 7.7 | 13.5 | 6.7 | Black |
| BRFS3.5-5 | 5.3mm | 8 | 24.5 | 7.7 | ||||
| BRFL3.5-5 | 5.3mm | 12 | 27.9 | 7.7 | ||||
| BRF3.5-6 | 6.5mm | 12 | 27.9 | 7.7 | ||||
| BRF3.5-8 | 8.4mm | 15 | 32 | 13.5 | ||||
| BRF3.5-10 | 10.5mm | 15 | 32 | 13.5 | ||||
| BRF5.5-3.5 | AWG:12-10 mm2:4-6 Current:48A Packing:500PCS |
3.7mm | 7.2 | 21.4 | 5.9 | 13.5 | 6.7 | Yellow |
| BRFS5.5-4 | 4.3mm | 7.2 | 21.4 | 5.9 | ||||
| BRFL5.5-4 | 4.3mm | 9.5 | 26.5 | 8.3 | ||||
| BRF5.5-5 | 5.3mm | 9.5 | 26.5 | 8.3 | ||||
| BRF5.5-6 | 6.5mm | 12 | 31 | 13 | ||||
| BRF5.5-8 | 8.4mm | 15 | 33.7 | 13.7 | ||||
| BRF5.5-10 | 10.5mm | 15 | 33.7 | 13.7 | ||||
| BRF5.5-12 | 13.0mm | 19.2 | 38.1 | 16 | ||||
| BRF8-3 | AWG:8 mm2:6-10 Current:62A Packing:100PCS |
3.7mm | 10 | 30 | 17.5 | 4.5 | Red | |
| BRF8-4 | 4.3mm | 10 | 30 | |||||
| BRF8-5 | 5.3mm | 10 | 30 | |||||
| BRF8-6 | 6.4mm | 11 | 31.5 | |||||
| BRF8-8 | 8.4mm | 14 | 36 | |||||
| BRF8-10 | 10.5mm | 18 | 39.5 | |||||
| BRF14-5 | AWG:6 mm2:10-16 Current:88A Packing:100PCS |
5.3mm | 11 | 37.5 | 23 | 5.9 | Red/Blue | |
| BRF14-6 | 6.4mm | 11 | 37.5 | |||||
| BRF14-8 | 8.4mm | 14 | 43 | |||||
| BRF14-10 | 10.5mm | 18 | 45 | |||||
| BRF14-12 | 13.0mm | 18 | 45 |
