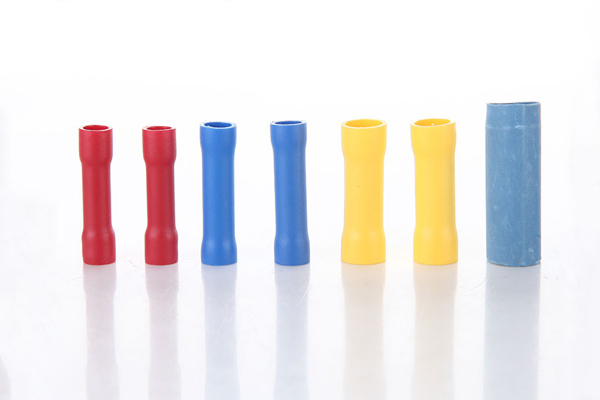

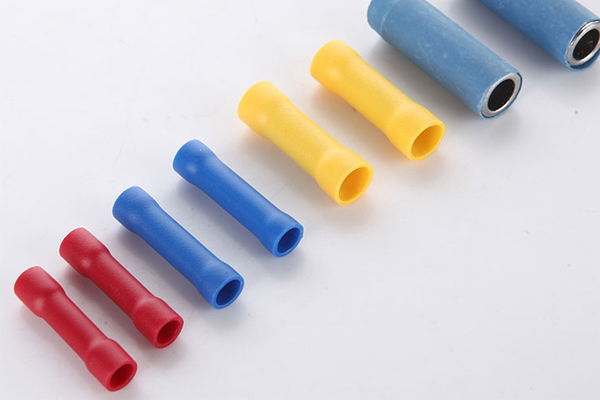

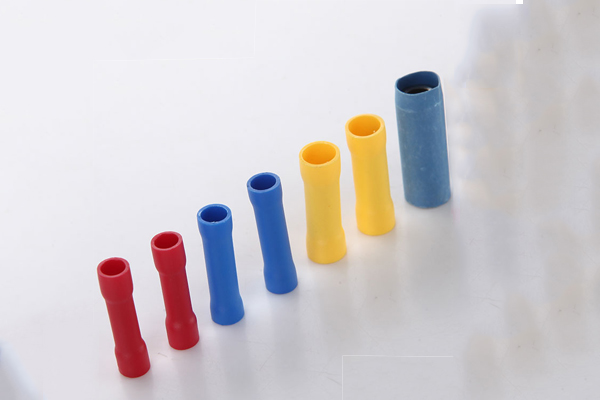

Insulated Butt Terminals Crimp Wire Terminals Wire Connector BF
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Butt Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| BF Insulated Butt Spice Terminals Standard style | |||||||

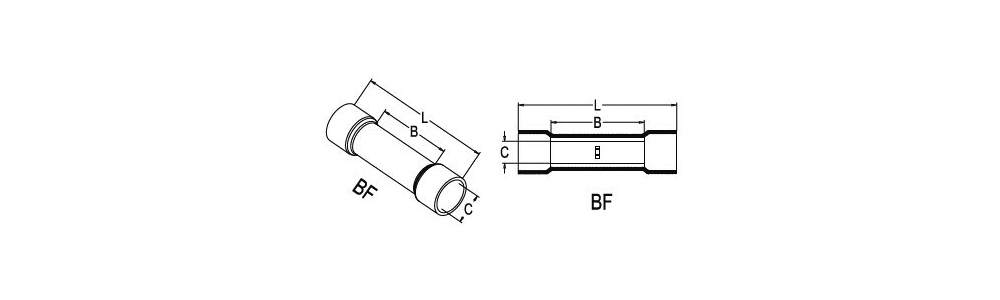

| Item No | Conduct square | DIMENSION | Imax | INSULATION COLOR |
|||
| A.W.G | mm² | B | C | L | |||
| mm | mm | mm | |||||
| BF1.25 | 22～16 | 0.5～1.5 | 15 | 1.7 | 26 | 19A | Red |
| BF2 | 16～14 | 1.5～2.5 | 15 | 2.3 | 26 | 27A | Blue |
| BF5.5 | 12～10 | 4～6 | 15 | 3.4 | 26 | 48A | Yellow |
| BF8 | #8 | 6～10 | 21 | 4.5 | 32 | 62A | Red |
| BF14 | #6 | 10～16 | 26 | 5.8 | 42 | 88A | Blue |
| BF22 | #4 | 16～25 | 29 | 7.7 | 50 | 115A | Yellow |
| BF38 | #2 | 35～50 | 32 | 9.4 | 55 | 160A | Red |
| SHORT BUTT Short form style | |||||||
| Item No | Conduct square | DIMENSION | Imax | INSULATION COLOR |
|||
| A.W.G | mm² | B | C | L | |||
| mm | mm | mm | |||||
| BFS1.25 | 22～16 | 0.5～1.5 | 8 | 1.7 | 16 | 19A | Red |
| BFS2 | 16～14 | 1.5～2.5 | 8 | 2.3 | 16 | 27A | Blue |
| BFS5.5 | 12～10 | 4～6 | 8.5 | 3.4 | 20.5 | 48A | Yellow |
