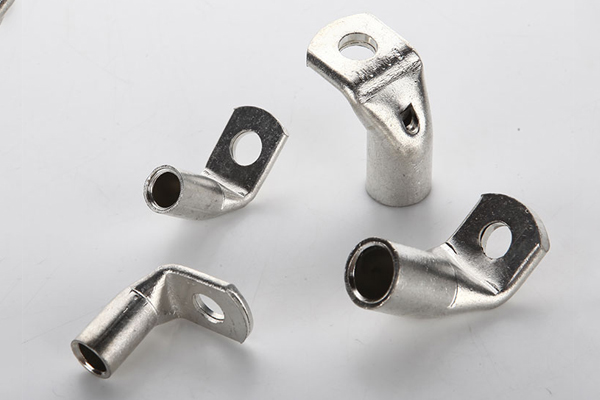

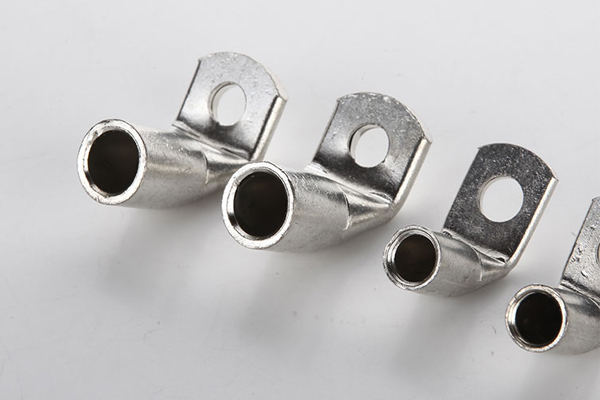

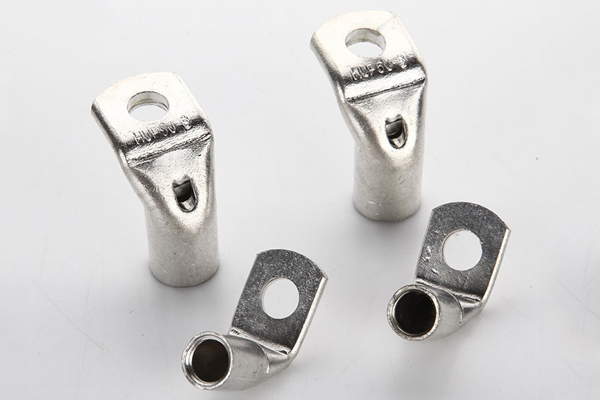

HUP Copper Lugs Type Electrical Cable Lugs HUPD90
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The HUP Copper Lugs are made of the high-quality copper which ensures good conductivity at its user end. The HUP Copper Lugs are tin plated to provide excellent corrosion resistance. Tube size is for small wire, HUP standard.
(In mm)
| Item No. | E | Dφ | dφ | W | B | L1 |
| HUPD90-10/5 | 5.3 | 8 | 5.5 | 12 | 14 | 13.5 |
| HUPD90-10/6 | 6.5 | 8 | 5.5 | 12 | 14 | 13.5 |
| HUPD90-10/8 | 8.5 | 8 | 5.5 | 16 | 14 | 18.5 |
| HUPD90-10/10 | 10.5 | 8 | 5.5 | 16 | 14 | 22.5 |
| HUPD90-10/12 | 13 | 8 | 5.5 | 19 | 14 | 22.5 |
| HUPD90-16/5 | 5.3 | 9.5 | 6.6 | 13 | 15 | 13.5 |
| HUPD90-16/6 | 6.5 | 9.5 | 6.6 | 13 | 15 | 13.5 |
| HUPD90-16/8 | 8.5 | 9.5 | 6.6 | 16 | 15 | 20 |
| HUPD90-16/10 | 10.5 | 9.5 | 6.6 | 17 | 15 | 24 |
| HUPD90-16/12 | 13 | 9.5 | 6.6 | 19 | 15 | 24 |
| HUPD90-25/5 | 5.3 | 11 | 7.9 | 15 | 17 | 15 |
| HUPD90-25/6 | 6.5 | 11 | 7.9 | 15 | 17 | 15 |
| HUPD90-25/8 | 8.5 | 11 | 7.9 | 17 | 17 | 20 |
| HUPD90-25/10 | 10.5 | 11 | 7.9 | 17 | 17 | 24 |
| HUPD90-25/12 | 13 | 11 | 7.9 | 19 | 17 | 24 |
| HUPD90-35/6 | 6.5 | 12.5 | 9.2 | 17 | 19 | 15 |
| HUPD90-35/8 | 8.5 | 12.5 | 9.2 | 18 | 19 | 20 |
| HUPD90-35/10 | 10.5 | 12.5 | 9.2 | 18 | 19 | 24 |
| HUPD90-35/12 | 13 | 12.5 | 9.2 | 19 | 19 | 24 |
| HUPD90-35/14 | 15 | 12.5 | 9.2 | 21 | 19 | 24 |
| HUPD90-50/6 | 6.5 | 15 | 11 | 21 | 21 | 20 |
| HUPD90-50/8 | 8.5 | 15 | 11 | 21 | 21 | 20 |
| HUPD90-50/10 | 10.5 | 15 | 11 | 21 | 21 | 24 |
| HUPD90-50/12 | 13 | 15 | 11 | 21 | 21 | 26 |
| HUPD90-50/14 | 15 | 15 | 11 | 23 | 21 | 26 |
| HUPD90-50/16 | 17 | 15 | 11 | 28 | 21 | 26 |
| HUPD90-70/8 | 8.5 | 17 | 13 | 25 | 25 | 20 |
| HUPD90-70/10 | 10.5 | 17 | 13 | 25 | 25 | 24 |
| HUPD90-70/12 | 13 | 17 | 13 | 25 | 25 | 26 |
| HUPD90-70/14 | 15 | 17 | 13 | 25 | 25 | 26 |
| HUPD90-70/16 | 17 | 17 | 13 | 25 | 25 | 26 |
| HUPD90-95/8 | 8.5 | 19 | 14.5 | 28 | 26 | 24 |
| HUPD90-95/10 | 10.5 | 19 | 14.5 | 28 | 26 | 24 |
| HUPD90-95/12 | 13 | 19 | 14.5 | 28 | 26 | 26 |
| HUPD90-95/14 | 15 | 19 | 14.5 | 28 | 26 | 26 |
| HUPD90-95/16 | 17 | 19 | 14.5 | 28 | 26 | 26 |
| HUPD90-120/8 | 8.5 | 21 | 16.2 | 30 | 30 | 28 |
| HUPD90-120/10 | 10.5 | 21 | 16.2 | 30 | 30 | 28 |
| HUPD90-120/12 | 13 | 21 | 16.2 | 30 | 30 | 30 |
| HUPD90-120/14 | 15 | 21 | 16.2 | 30 | 30 | 30 |
| HUPD90-120/16 | 17 | 21 | 16.2 | 30 | 30 | 30 |
| HUPD90-120/20 | 21 | 21 | 16.2 | 36 | 30 | 30 |
| HUPD90-150/8 | 8.5 | 23 | 18 | 34 | 32 | 31 |
| HUPD90-150/10 | 10.5 | 23 | 18 | 34 | 32 | 31 |
| HUPD90-150/12 | 13 | 23 | 18 | 34 | 32 | 34 |
| HUPD90-150/14 | 15 | 23 | 18 | 34 | 32 | 37 |
| HUPD90-150/16 | 17 | 23 | 18 | 34 | 32 | 37 |
| HUPD90-150/20 | 21 | 23 | 18 | 40 | 32 | 37 |
| HUPD90-185/10 | 10.5 | 26 | 20.6 | 39 | 35 | 40 |
| HUPD90-185/12 | 13 | 26 | 20.6 | 39 | 35 | 40 |
| HUPD90-185/14 | 15 | 26 | 20.6 | 39 | 35 | 40 |
| HUPD90-185/16 | 17 | 26 | 20.6 | 39 | 35 | 40 |
| HUPD90-185/20 | 21 | 26 | 20.6 | 39 | 35 | 40 |
| HUPD90-240/10 | 10.5 | 28 | 23.1 | 41 | 44 | 33 |
| HUPD90-240/12 | 13 | 28 | 23.1 | 41 | 44 | 33 |
| HUPD90-240/14 | 15 | 28 | 23.1 | 41 | 44 | 39 |
| HUPD90-240/16 | 17 | 28 | 23.1 | 41 | 44 | 39 |
| HUPD90-240/20 | 21 | 28 | 23.1 | 41 | 44 | 39 |
| HUPD90-300/12 | 13 | 32 | 26.1 | 47 | 44 | 41 |
| HUPD90-300/14 | 15 | 32 | 26.1 | 47 | 44 | 41 |
| HUPD90-300/16 | 17 | 32 | 26.1 | 47 | 44 | 41 |
| HUPD90-300/20 | 21 | 32 | 26.1 | 47 | 44 | 41 |
