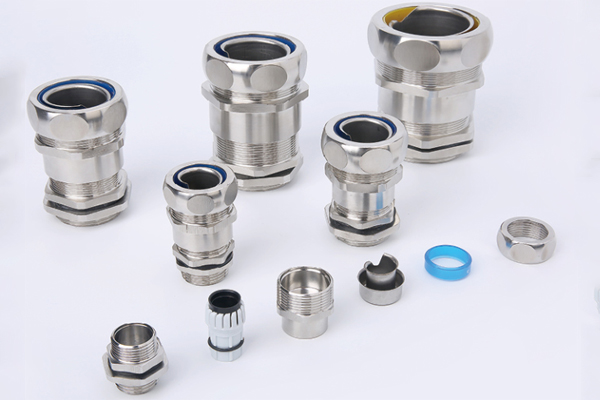

Hose Connector Brass Locking Joint SRPG
Specification:
Material:
Nickel-plated Brass
Retainer: TPE
Ferrule: Galvanized Steel
Sealing: Modified Rubber
Sealing Ring: PA6
Certificate: CE, RoHS
Protection Rating: IP65
Working Temperature:
Static state: -60°C to 100°C, short tim e to 120°C
(In mm)
| Item | Cable Range | Thread Length GL | Spanner size | Conduit Size (Nominal bore diameter) |
Item No. |
| PG7-Φ6 | 3-5.5 | 6 | 18/17/14 | Φ6 | SRPG7-Φ6 |
| PG9-Φ8 | 4-7 | 7 | 20/19/17 | Φ8 | SRPG9-Φ8 |
| PG11-Φ10 | 5-9 | 7 | 24/23/20 | Φ10 | SRPG11-Φ10 |
| PG13.5-Φ12 | 6-11 | 7 | 26/26/22 | Φ12 | SRPG13.5-Φ12 |
| PG16-Φ15 | 8-14 | 7 | 30/30/24 | Φ15 | SRPG16-Φ15 |
| PG21-Φ20 | 13-18 | 8 | 36/34/30 | Φ20 | SRPG21-Φ20 |
| PG29-Φ25 | 15-22 | 8 | 45/45/40 | Φ25 | SRPG29-Φ25 |
| PG36-Φ32 | 22-30 | 9 | 55/52/50 | Φ32 | SRPG36-Φ32 |
| PG42-Φ38 | 30-35 | 9 | 60/58/58 | Φ38 | SRPG42-Φ38 |
| PG48-Φ51 | 37-44 | 10 | 75/75/65 | Φ51 | SRPG48-Φ51 |
