High Voltage Lugs Copper Cable Lugs Crimping Lug CLH

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

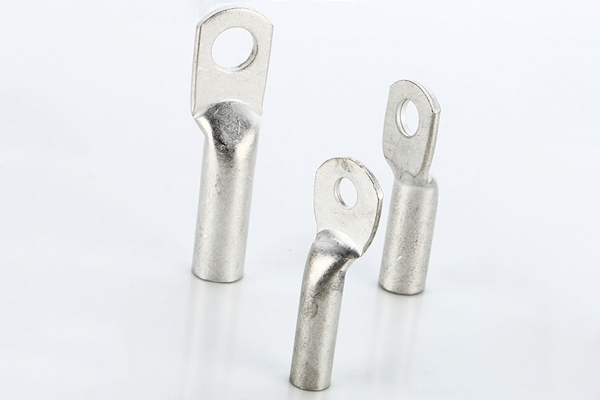

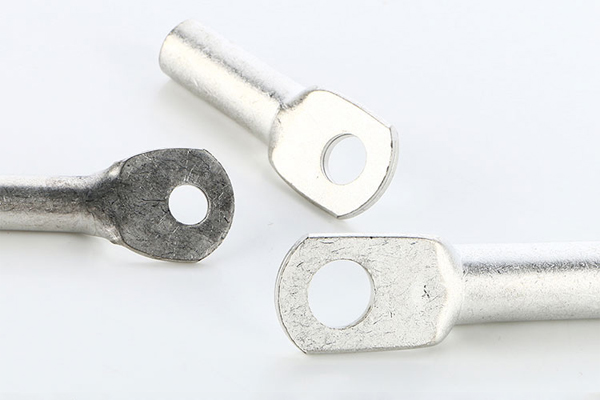

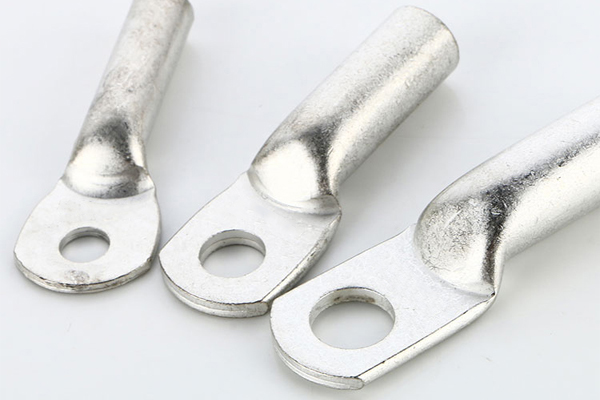

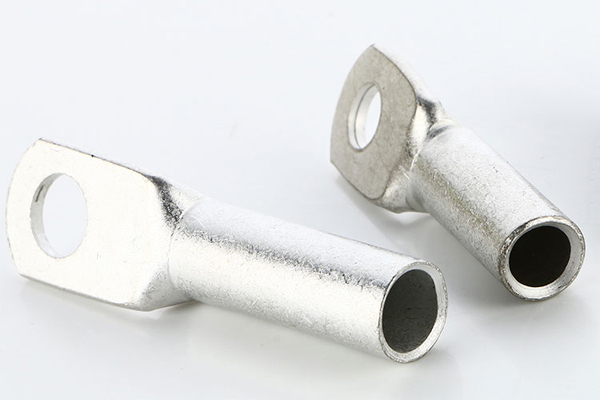

The High Voltage Lugs are made of the high-quality copper which ensures good conductivity at its user end. The High Voltage Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. E Dφ dφ W B L
CL14-6 6.4 8.8 5.8 18.3 28.5 50
CL22-8 8.4 11.3 7.7 18.3 28.5 52
CL38-10 10.5 12.4 9.8 18.3 34 64
CL38-12 13 12.4 9.8 18.3 34 64
CL60-10 10.5 14 11 20.5 36 70
CL60-12 13 14 11 20.5 36 70
CL70-10 10.5 15 12 21.4 38 72
CL70-12 13 15 12 21.4 38 72
CL80-12 13 16 13 23.2 38 75
CL100-12 13 18 14 26 40 75
CL125-12 13 20 16 28 40 85
CL150-12 13 22 17 31.5 46 94
CL180-12 13 23 18.2 33 46 98
CL200-12 13 26 20 37 48 104
CL250-12 13 28 22 41 48 114
CL325-12 13 32 25 46 50 118
CL400-12 13 37 30 54 60 130
CL500-12 13 40 31 57.5 60 150
B-CL14-6 6.4 8.3 5.8 18.3 28.5 50
B-CL22-8 8.4 10.7 7.7 18.3 28.5 52
B-CL38-10 10.5 11.9 9.8 17.2 34 64
B-CL38-12 13 11.9 9.8 17.2 34 64
B-CL60-10 10.5 13.5 11 20 36 70
B-CL60-12 13 13.5 11 20 36 70
B-CL70-10 10.5 14.5 12 21.4 38 72
B-CL70-12 13 14.5 12 21.4 38 72
B-CL80-12 13 15.5 13 23.2 38 75
B-CL100-12 13 17.3 14 25.5 40 75
B-CL125-12 13 19.3 16 28 40 85
B-CL150-12 13 21.1 17 30.5 46 94
B-CL180-12 13 22.1 18.2 32.5 46 98
B-CL200-12 13 24.9 20 36 48 104
B-CL250-12 13 26.9 22 39.5 48 114
B-CL325-12 13 30.7 25 45 50 118
B-CL400-12 13 35.7 30 54 60 130
B-CL500-12 13 38.4 31 56 60 150
