Material: Halogen free PC/ABS
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 110°C
Certificates: UL, CE, RoHS, REACH
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS

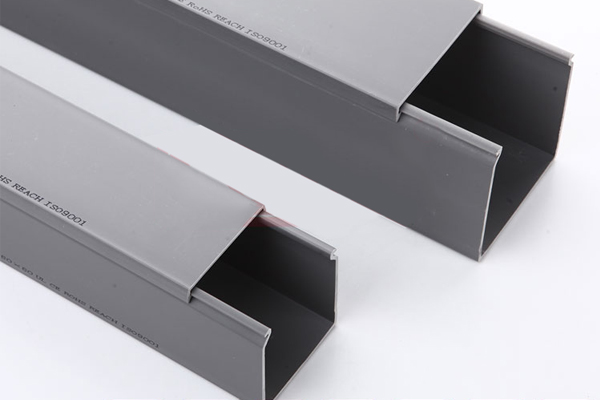

The Halogen Free Wiring Duct is made of PC/ABS and in case of fire does not emit any halogenated toxic fumes.
Item No. | W*H | Wire Capacity | Packing/M |
Calculated in terms of 2.0 square feet | |||
BSD1616-HF | 16*16 | 3~10pcs | 300M |
*BSD2516-HF | 25*16 | 5~15pcs | 240M |
*BSD4016-HF | 40*16 | 15~30pcs | 200M |
BSD1520-HF | 15*20 | 8~12pcs | 260M |
BSD2020-HF | 20*20 | 10~20pcs | 240M |
BSD4020-HF | 40*20 | 20-30pcs | 140M |
BSD1525-HF | 15*25 | 5~15pcs | 260M |
BSD2025-HF | 20*25 | 5~15pcs | 200M |
BSD2525-HF | 25*25 | 10~25pcs | 200M |
BSD3025-HF | 30*25 | 12~28pcs | 160M |
*BSD4025-HF | 40*25 | 20~25pcs | 120M |
*BSD5025-HF | 50*25 | 20~25pcs | 100M |
BSD1530-HF | 15*30 | 8~15pcs | 200M |
BSD2030-HF | 20*30 | 25~35pcs | 180M |
BSD2530-HF | 25*30 | 25~35pcs | 160M |
BSD3030-HF | 30*30 | 25~35pcs | 140M |
BSD4030-HF | 40*30 | 30~40pcs | 100M |
GDR5030-HF | 50*30 | 40-50pcs | 80M |
GDR6030-HF | 60*30 | 50-60pcs | 60M |
BSD2233-HF | 22*33 | 15~25pcs | 180M |
BSD3333-HF | 33*33 | 30~40pcs | 160M |
BSD2035-HF | 20*35 | 30~40pcs | 100M |
BSD3535-HF | 35*35 | 35~45pcs | 112M |
BSD5035-HF | 50*35 | 40~60pcs | 88M |
*BSD2040-HF | 20*40 | 20~25pcs | 110M |
BSD2540-HF | 25*40 | 20~25pcs | 112M |
BSD3540-HF | 35*40 | 50-60pcs | 100M |
BSD4040-HF | 40*40 | 60~70pcs | 100M |
BSD6040-HF | 60*40 | 100~115pcs | 68M |
BSD8040-HF | 80*40 | 120~135pcs | 48M |
BSD10040-HF | 100*40 | 120~135pcs | 32M |
BSD12040-HF | 120*40 | 140-165pcs | / |
BSD2545-HF | 25*45 | 20~25pcs | 104M |
BSD3345-HF | 33*45 | 40~55pcs | 108M |
BSD4545-HF | 45*45 | 60~70pcs | 72M |
BSD6545-HF | 65*45 | 110~120pcs | 56M |
BSD2050-HF | 20*50 | 20~30pcs | 100M |
BSD2550-HF | 25*50 | 20~30pcs | 100M |
BSD3050-HF | 30*50 | 25~40pcs | 84M |
BSD3550-HF | 35*50 | 40~60pcs | 80M |
BSD4050-HF | 40*50 | 60~70pcs | 68M |
BSD4550-HF | 45*50 | 70~80pcs | 60M |
BSD5050-HF | 50*50 | 80~90pcs | 60M |
BSD5550-HF | 55*50 | 85~95pcs | 50M |
BSD6050-HF | 60*50 | 100~120pcs | 48M |
BSD7550-HF | 75*50 | 140~160pcs | 40M |
BSD8050-HF | 80*50 | 160~180pcs | 40M |
BSD10050-HF | 100*50 | 200~250pcs | 26M |
BSD12555-HF | 125*55 | 220~270pcs | 20M |
BSD2060-HF | 20*60 | 5~45pcs | 100M |
BSD2560-HF | 25*60 | 40~50pcs | 100M |
BSD3060-HF | 30*60 | 60~80pcs | 80M |
*BSD3560-HF | 35*60 | 65~85pcs | 70M |
BSD4060-HF | 40*60 | 100~115pcs | 60M |
BSD4560-HF | 45*60 | 110~125pcs | 30M |
BSD5060-HF | 50*60 | 120~135pcs | 60M |
BSD6060-HF | 60*60 | 120~135pcs | 48M |
BSD8060-HF | 80*60 | 180~210pcs | 36M |
BSD10060-HF | 100*60 | 240~290pcs | 28M |
BSD11060-HF | 110*60 | 250~300pcs | 48M |
*BSD12060-HF | 120*60 | 260~320pcs | 48M |
SDE15060-HF | 150*60 | 300-360pcs | 16M |
BSD2565-HF | 25*65 | 40~50pcs | 88M |
BSD3365-HF | 33*65 | 40~70pcs | 80M |
BSD4565-HF | 45*65 | 110~120pcs | 52M |
BSD6565-HF | 65*65 | 180~200pcs | 44M |
BSD7265-HF | 72*65 | 190~210pcs | 40M |
BSD2575-HF | 25*75 | 140-170pcs | / |
BSD3575-HF | 35*75 | 160-190pcs | / |
BSD5075-HF | 50*75 | 180~210pcs | 32M |
BSD7575-HF | 75*75 | 200~240pcs | 24M |
BSD10075-HF | 100*75 | 220~260pcs | 24M |
BSD2580-HF | 25*80 | 100~120pcs | 72M |
BSD3080-HF | 30*80 | 110~125pcs | 56M |
BSD3580-HF | 35*80 | 110~130pcs | 56M |
BSD4080-HF | 40*80 | 140~160pcs | 48M |
BSD4580-HF | 45*80 | 140~160pcs | 40M |
BSD5080-HF | 50*80 | 160~180pcs | 40M |
BSD5580-HF | 55*80 | 160~180pcs | 32M |
BSD6080-HF | 60*80 | 180~210pcs | 32M |
BSD8080-HF | 80*80 | 240~290pcs | 24M |
BSD10080-HF | 100*80 | 260~350pcs | 24M |
BSD12080-HF | 120*80 | 280~380pcs | 16M |
BSD14080-HF | 140*80 | 350~450pcs | 16M |
BSD25100-HF | 25*100 | 110~160pcs | 60M |
BSD33100-HF | 33*100 | 130~165pcs | 44M |
BSD40100-HF | 40*100 | 130~175pcs | 40M |
BSD50100-HF | 50*100 | 220~250pcs | 40M |
BSD60100-HF | 60*100 | 240~290pcs | 32M |
BSD70100-HF | 70*100 | 240~290pcs | 32M |
BSD75100-HF | 75*100 | 260~350pcs | 24M |
BSD80100-HF | 80*100 | 260~350pcs | 24M |
BSD100100-HF | 100*100 | 300~400pcs | 24M |
BSD120100-HF | 120*100 | 350~450pcs | 16M |
BSD150100-HF | 150*100 | 400~650pcs | 16M |
BSD150130-HF | 150*130 | 400~650pcs | 16M |
BSD100130-HF | 100*130 | 350~450pcs | 16M |
*BSD200100-HF | 200*100 | 600~800pcs | 12M |
*BSD200150-HF | 200*150 | 900~1200pcs | 10M |
*BSD200200-HF | 200*200 | 1200-1600pcs | / |
