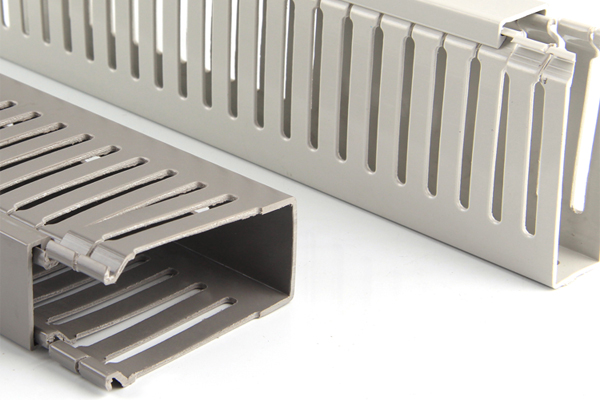

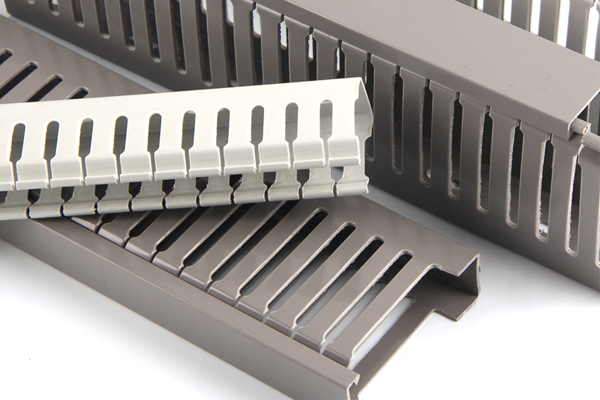

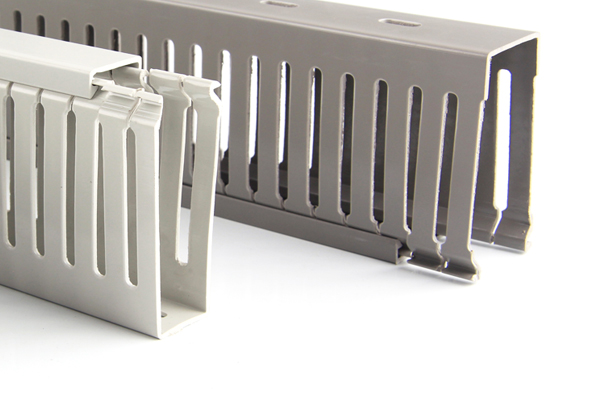

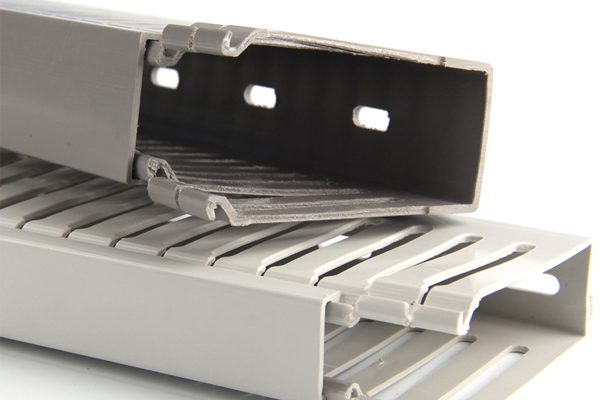

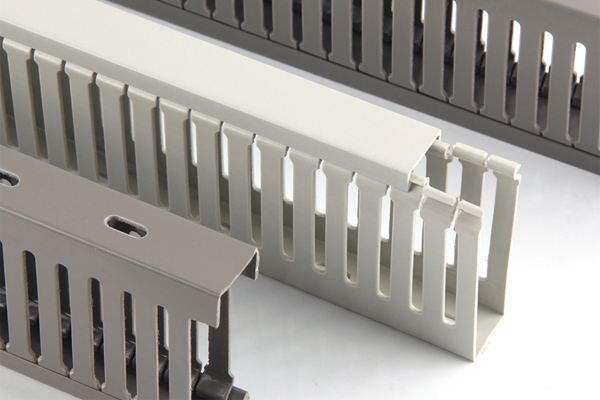

Halogen Free Slotted Wire Raceway, Wiring Duct
Specification:
Material: Halogen free PC/ABS

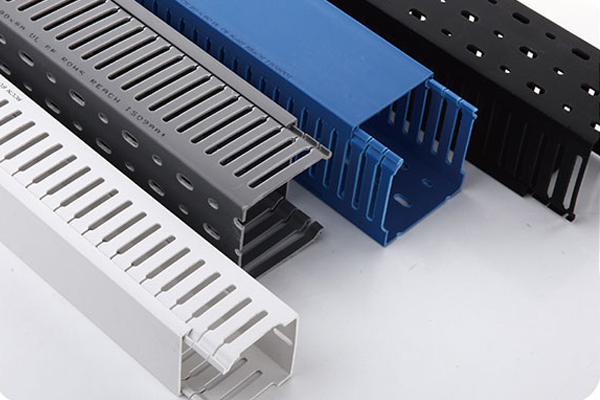

Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 110°C
Certificates: UL, CE, RoHS, REACH
UL94 Flammability Rating of V-0

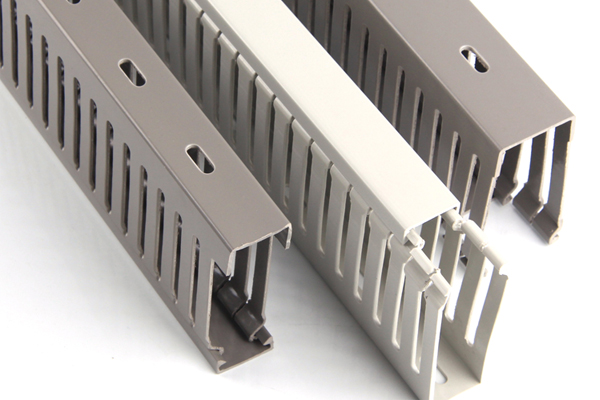

Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
The Halogen Free Wiring Duct is made of PC/ABS and in case of fire does not emit any halogenated toxic fumes.
| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BHVD1616T-HF | 16*16 | 5 | 8 | 3-10pcs | 300M |
| BHVD2516T-HF | 25*16 | 5 | 8 | 8-12pcs | 100M |
| BHVD1520T-HF | 15*20 | 5 | 8 | 8-12pcs | 260M |
| BHVD2020T-HF | 20*20 | 5 | 8 | 10-20pcs | 240M |
| BHVD4020T-HF | 40*20 | 5 | 8 | 15-30pcs | 140M |
| BHVD1525T-HF | 15*25 | 5 | 8 | 5-15pcs | 260M |
| *BHVD2025T-HF | 20*25 | 5 | 8 | 5~15pcs | 200M |
| *BHVD2525T-HF | 25*25 | 5 | 8 | 10~pcs | 200M |
| *BHVD3025T-HF | 30*25 | 5 | 8 | 12~28pcs | 160M |
| BHVD4025T-HF | 40*25 | 5 | 8 | 20-35pcs | 100M |
| BHVD5025T-HF | 50*25 | 5 | 8 | 12-28PCS | 100M |
| BHVD1530T-HF | 15*30 | 5 | 8 | 8-15pcs | 180M |
| BHVD2030T-HF | 20*30 | 5 | 8 | 25-35pcs | 160M |
| BHVD2530T-HF | 25*30 | 5 | 8 | 25~35pcs | 160M |
| BHVD3030T-HF | 3030 | 5 | 8 | 25~35pcs | 140M |
| BHVD4030T-HF | 40*30 | 5 | 8 | 30~40pcs | 100M |
| BHVD5030T-HF | 50*30 | 5 | 8 | 40-50pcs | 80M |
| BHVD6030T-HF | 60*30 | 5 | 8 | 50-60pcs | 60M |
| BHVD2233T-HF | 22*33 | 5 | 8 | 25-35pcs | 160M |
| BHVD3333T-HF | 33*33 | 5 | 8 | 35-45pcs | 160M |
| BHVD2035T-HF | 20*35 | 5 | 8 | 30-40pcs | 100M |
| BHVD3535T-HF | 35*35 | 5 | 8 | 35-45pcs | 112M |
| BHVD5035T-HF | 50*35 | 5 | 8 | 40-60pcs | 88M |
| BHVD2040T-HF | 2040 | 5 | 8 | 16-22pcs | 110M |
| BHVD2540T-HF | 25*40 | 5 | 8 | 20~25pcs | 112M |
| BHVD3540T-HF | 35*40 | 5 | 8 | 35-45pcs | 100M |
| BHVD4040T-HF | 40*40 | 5 | 8 | 60~70pcs | 100M |
| BHVD6040T-HF | 60*40 | 5 | 8 | 100~115pcs | 68M |
| BHVD8040T-HF | 80*40 | 5 | 8 | 120~135pcs | 48M |
| BHVD10040T-HF | 100*40 | 5 | 8 | 120~135pcs | 32M |
| BHVD12040T-HF | 120*40 | 5 | 8 | 140-155pcs | / |
| BHVD2545T-HF | 25*45 | 5 | 8 | 20~25pcs | 104M |
| BHVD3345T-HF | 33*45 | 5 | 8 | 40~55pcs | 108M |
| BHVD4545T-HF | 45*45 | 5 | 8 | 60~70pcs | 72M |
| BHVD6545T-HF | 65*45 | 5 | 8 | 110~120pcs | 56M |
| BHVD2050T-HF | 20*50 | 5 | 8 | 18-28pcs | 100M |
| BHVD2550T-HF | 25*50 | 5 | 8 | 20~30pcs | 100M |
| BHVD3050T-HF | 30*50 | 5 | 8 | 25~40pcs | 84M |
| BHVD3550T-HF | 35*50 | 5 | 8 | 40~60pcs | 80M |
| BHVD4050T-HF | 40*50 | 5 | 8 | 60~70pcs | 68M |
| BHVD4550T-HF | 45*50 | 5 | 8 | 70~80pcs | 60M |
| BHVD5050T-HF | 50*50 | 5 | 8 | 80~90pcs | 60M |
| BHVD5550T-HF | 50*50 | 5 | 8 | 80~90pcs | 48M |
| BHVD6050T-HF | 60*50 | 5 | 8 | 100~120pcs | 48M |
| BHVD7550T-HF | 75*50 | 5 | 8 | 150-170pcs | 40M |
| BHVD8050T-HF | 80*50 | 5 | 8 | 160~180pcs | 40M |
| BHVD10050T-HF | 100*50 | 5 | 8 | 200~250pcs | 26M |
| BHVD12555T-HF | 125*55 | 5 | 8 | 220-270pcs | 20M |
| *BHVD2060T-HF | 20*60 | 5 | 8 | 35~45pcs | 100M |
| BHVD2560T-HF | 25*60 | 5 | 8 | 40~50pcs | 100M |
| BHVD3060T-HF | 30*60 | 5 | 8 | 60~80pcs | 80M |
| BHVD3560T-HF | 35*60 | 5 | 8 | 90-105pcs | 78M |
| BHVD4060T-HF | 40*60 | 5 | 8 | 100~115pcs | 60M |
| BHVD4560T-HF | 45*60 | 5 | 8 | 110~125pcs | 30M |
| BHVD5060T-HF | 50*60 | 5 | 8 | 120~135pcs | 60M |
| BHVD6060T-HF | 60*60 | 5 | 8 | 120~135pcs | 48M |
| BHVD8060T-HF | 80*60 | 5 | 8 | 180~210pcs | 36M |
| BHVD10060T-HF | 100*60 | 5 | 8 | 240~290pcs | 28M |
| BHVD11060T-HF | 110*60 | 5 | 8 | 250~300pcs | 48M |
| *BHVD12060T-HF | 120*60 | 5 | 8 | 260~320pcs | 48M |
| BHVD2565T-HF | 25*65 | 5 | 8 | 40~50pcs | 96M |
| BHVD3365T-HF | 33*65 | 5 | 8 | 40~70pcs | 80M |
| BHVD4565T-HF | 45*65 | 5 | 8 | 110~120pcs | 52M |
| BHVD6565T-HF | 65*65 | 5 | 8 | 180~200pcs | 44M |
| BHVD7265T-HF | 72*65 | 5 | 8 | 180-230pcs | 42M |
| BHVD2575T-HF | 25*75 | 5 | 8 | 180~210pcs | / |
| BHVD5075T-HF | 50*75 | 5 | 8 | 180-210pcs | 42M |
| BHVD7575T-HF | 75*75 | 5 | 8 | 200-240pcs | 40M |
| BHVD10075T-HF | 100*75 | 5 | 8 | 250-290pcs | 24M |
| BHVD2580T-HF | 25*80 | 5 | 8 | 100~120pcs | 72M |
| BHVD3080T-HF | 30*80 | 5 | 8 | 110~125pcs | 56M |
| BHVD3580T-HF | 35*80 | 5 | 8 | 110~130pcs | 56M |
| BHVD4080T-HF | 40*80 | 5 | 8 | 140~160pcs | 48M |
| BHVD4580T-HF | 45*80 | 5 | 8 | 140~160pcs | 40M |
| BHVD5080T-HF | 50*80 | 5 | 8 | 160~180pcs | 40M |
| BHVD5580T-HF | 55*80 | 5 | 8 | 160~180pcs | 32M |
| BHVD6080T-HF | 60*80 | 5 | 8 | 180~210pcs | 32M |
| BHVD8080T-HF | 80*80 | 5 | 8 | 240~290pcs | 24M |
| BHVD10080T-HF | 100*80 | 5 | 8 | 260~350pcs | 24M |
| BHVD12080T-HF | 120*80 | 5 | 8 | 280~380pcs | 16M |
| BHVD14080T-HF | 140*80 | 5 | 8 | 350~450pcs | 16M |
| *BHVD25100T-HF | 25*100 | 5 | 8 | 110~160 pcs | 60M |
| BHVD33100T-HF | 33*100 | 5 | 8 | 130~165 pcs | 44M |
| BHVD40100T-HF | 40*100 | 5 | 8 | 130~175 pcs | 40M |
| BHVD50100T-HF | 50*100 | 5 | 8 | 220~250 pcs | 40M |
| BHVD60100T-HF | 60*100 | 5 | 8 | 240~290 pcs | 32M |
| BHVD70100T-HF | 70*100 | 5 | 8 | 250~340 pcs | 24M |
| BHVD75100T-HF | 75*100 | 5 | 8 | 260~350 pcs | 24M |
| BHVD80100T-HF | 80*100 | 5 | 8 | 260~350 pcs | 24M |
| BHVD100100T-HF | 100*100 | 5 | 8 | 300-400pcs | 24M |
| BHVD120100T-HF | 120*100 | 5 | 8 | 350-450pcs | 16M |
| BHVD150100T-HF | 150*100 | 5 | 8 | 400-650pcs | 16M |
| BHVD150130T-HF | 150*130 | 5 | 8 | 400-650pcs | 16M |
| BHVD100130T-HF | 150*130 | 5 | 8 | 350-450pcs | / |
| BHVD200100T-HF | 200*100 | 5 | 8 | 600-800pcs | 16M |
| BHVD200150T-HF | 200*150 | 5 | 8 | 900-1200pcs | / |
