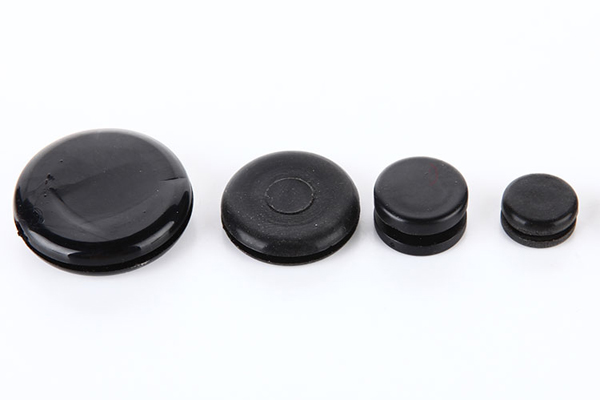

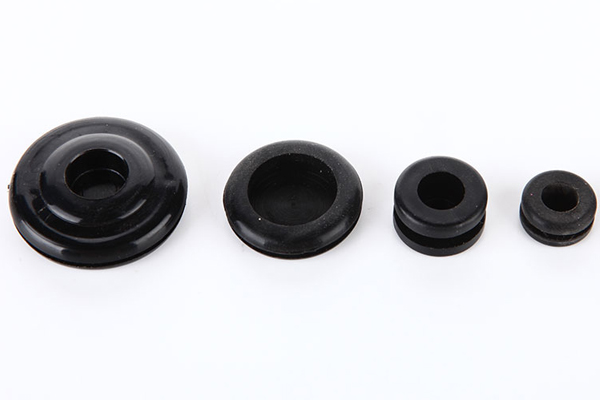

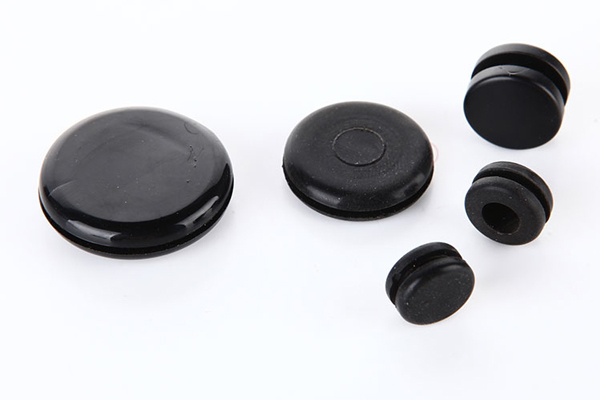

Grommet Nylon Snap Grommets GM
Specification：
Material: Silicon Rubber
Certificate: RoHS
Color: White, Black, Available

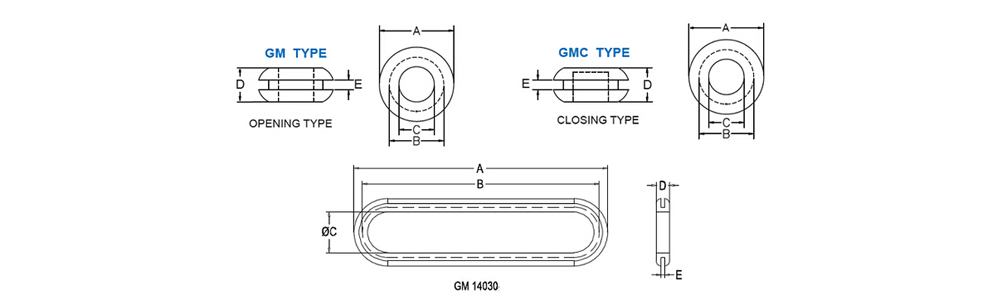

| Item No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Packing | |
| OPEN | CLOSED | ||||||
| GM-0603 | GMC-0603 | 8.5 | 6 | 3 | 4.7 | 1.7 | 100pcs |
| GM-0705 | GMC-0705 | 10.2 | 7.2 | 5 | 4.4 | 1.7 | |
| GM-1006 | GMC-1006 | 13.3 | 10 | 6.4 | 6.3 | 1.7 | |
| GM-1108 | GMC-1108 | 15.5 | 11 | 8 | 9 | 3 | |
| GM-1410/2.0 | GMC-1410/2.0 | 19.5 | 13.9 | 10.5 | 6.4 | 2 | |
| GM-1410/3.4 | 19.5 | 13.9 | 10.5 | 6.4 | 3.4 | ||
| GM-2015 | GMC-2015 | 23.7 | 20.1 | 15.5 | 6.1 | 1.7 | |
| GM-2518 | GMC-2518 | 29.9 | 25.1 | 18.9 | 7.2 | 1.5 | |
| GM-3225 | GMC-3225 | 38.1 | 31.7 | 25 | 7.8 | 1.5 | |
| GM-3831 | – | 45 | 38 | 31 | 7.8 | 1.5 | |
| GMC-6457 | 75 | 64 | 57 | 8 | 1.7 | ||
| GMC-6647 | 66 | 58 | 47 | 10 | 3 | ||
| GM-14030 | – | 150 | 140 | 22.5 | 8 | 2 | |
