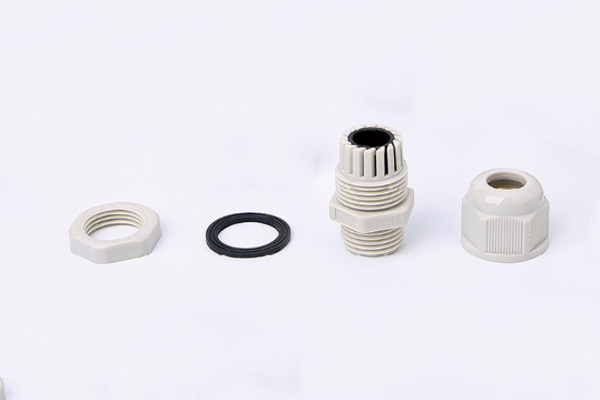

Gray Reinforced Nylon Cable Gland Lengthen
Specification:
Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Color: Gray, White, Black and so on.
Certificate: CE, RoHS approved
waterproof. IP68
(In mm)
| Item | Cable Range | Thread O.D. AG |
Thread Length GL |
Spanner Size | Item NO. |
| M10x1.5 | 2.5-6 | 10 | 8 | 12/15 | NM10B |
| M12x1.5 | 3-6.5 | 12 | 8.5 | 18/15 | NM12B |
| 4-8 | 12 | 8.5 | 18/19 | NM12-8B | |
| 3-6.5 | 12 | 15 | 18/15 | NM12LB | |
| 4-8 | 12 | 15 | 18/19 | NM12L-8B | |
| M16x1.5 | 4-8 | 16 | 10 | 22/19 | NM16-8B |
| 6-10 | 16 | 10 | 22/19 | NM16-10B | |
| 4-7 | 16 | 10 | 22/22 | NM16-7B | |
| 4-8 | 16 | 15 | 22/19 | NM16L-8B | |
| 6-10 | 16 | 15 | 22/22 | NM16L-10B | |
| 4-7 | 16 | 15 | 22/22 | NM16L-7B | |
| M18x1.5 | 6-10 | 18 | 10 | 24/22 | NM18-10B |
| 4-7 | 18 | 10 | 24/22 | NM18-7B | |
| 6-10 | 18 | 15 | 24/22 | NM18L-10B | |
| 4-7 | 18 | 15 | 24/22 | NM18L-7B | |
| M20x1.5 | 6-12 | 20 | 10 | 27/24 | NM20-12B |
| 5-9 | 20 | 10 | 27/24 | NM20-9B | |
| 8.5-14 | 20 | 10 | 27/27 | NM20-14B | |
| 6-12 | 20 | 10 | 27/27 | NM20-12B | |
| 6-12 | 20 | 15 | 27/24 | NM20L-12B | |
| 5-9 | 20 | 15 | 27/24 | NM20L-9B | |
| M20x1.5 | 8.5-14 | 20 | 15 | 27/27 | NM20L-14B |
| 6-11 | 20 | 15 | 27/27 | NM20L-11B | |
| M22x1.5 | 9-14 | 22 | 10 | 29/27 | NM22-14B |
| 6-11 | 22 | 10 | 29/27 | NM22-11B | |
| M25x1.5 | 8.5-14 | 25 | 11.6 | 33/27 | NM25-14B |
| 6-10.5 | 25 | 11.6 | 33/27 | NM25-10.5B | |
| 6-11 | 25 | 11.6 | 33/27 | NM25-11B | |
| 12.5-18 | 25 | 11.6 | 33/33 | NM25-18B | |
| 7-13 | 25 | 11.6 | 33/33 | NM25-13B | |
| 12.5-18 | 25 | 15 | 33/33 | NM25L-18B | |
| 7-13 | 25 | 15 | 33/33 | NM25L-13B | |
| M32x1.5 | 18-25 | 32 | 15 | 41/41 | NM32L-25B |
| 8-12 | 32 | 15 | 41/41 | NM32L-12B | |
| M36x1.5 | 18-25 | 36 | 12 | 45/41 | NM36-25B |
| M40x1.5 | 24-32 | 40 | 15 | 50/50 | NM40-32B |
| 18-25 | 40 | 15 | 50/50 | NM40-25B | |
| M50x1.5 | 31-41 | 50 | 15 | 62/62 | NM50-41B |
| 22-28 | 50 | 15 | 62/62 | NM50-28B | |
| M63x1.5 | 35-45 | 63 | 18 | 75/65 | NM63-45B |
