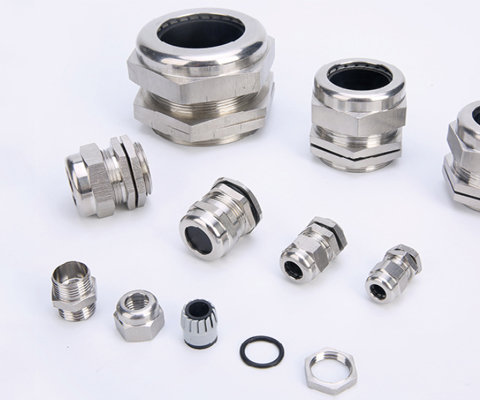

Explosion proof Cable Gland SS IP68
Specification:
Material:
Stainless Steel SS304/316L
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS, EX approved
Explosion proof, waterproof. IP68
(In mm)
| Item | Cable Range | Thread Length GL |
Thread O.D. AG |
Joint Length H |
Spanner size | Item No. |
| PG7 | 3-6.5 | 7 | 12.5 | 19.0 | 14/15 | SSPG7 |
| PG9 | 4-8 | 8 | 15.2 | 20.0 | 17/18 | SSPG9 |
| PG11 | 5-10 | 8 | 18.6 | 21.0 | 20/21 | SSPG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 22.0 | 22/23 | SSPG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 23.0 | 24/25 | SSPG16 |
| PG21 | 13-18 | 9 | 28.3 | 27.0 | 30 | SSPG21 |
| PG29 | 18-25 | 10 | 37.0 | 31.0 | 40 | SSPG29 |
| PG36 | 25-33 | 11 | 47.0 | 37.0 | 50 | SSPG36 |
| PG42 | 32-38 | 13 | 54.0 | 38.0 | 60 | SSPG42 |
| PG48 | 37-44 | 14 | 59.3 | 38.0 | 65 | SSPG48 |
| PG63 | 42-52 | 16 | 72.0 | 42.0 | 76/80 | SSPG63 |
