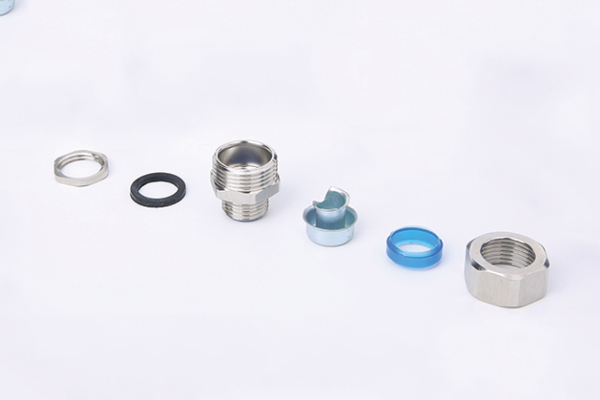

End Hose Fittings DPJ Type Stainless Steel IP68
Specification:
Material: Stainless Steel SS304/316L
Retainer: TPE
Sealing: Modified Rubber
Mouth: SS304
Explosion-proof: Exd IIC Gb
Certificate: CE, RoHS, REACH, EX Available
Protection Rating: IP68 – 10bar
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic state: -20 C to 80 °C, short time to 100°C
End Hose Fittings, Hose specification and thread size, example “DPJ-15-G1/2 “, one end with 15mm(diameter)hose,
the other end with G1/2” external thread.
(In mm)

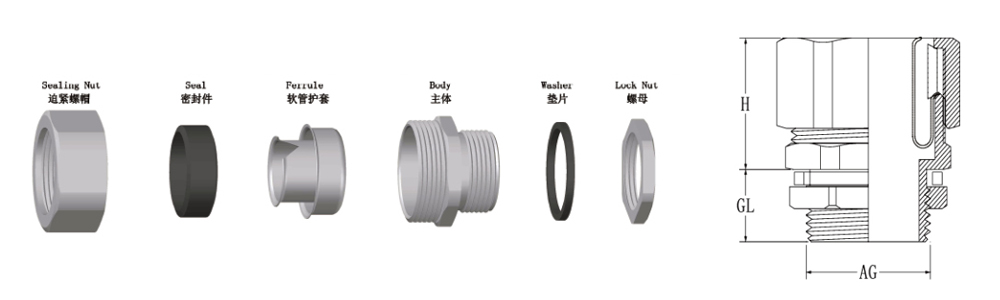

| Conduit size | Inch Thread | Thread Length GL |
Metric Thread | Thread Length GL |
PG Thread | Spanner size | Item No. | |
| Metric | Inch | |||||||
| Φ6 | 3/16″ | G1/4″ | 7 | M12/M14 | 7 | PG7 | 18/16 | DPJ Series |
| Φ8 | 5/16″ | G3/8″ | 7 | M14/M16 | 8 | PG9 | 24/22 | |
| Φ10 | 1/4″ | G3/8″ | 7 | M16 | 8 | PG9 | 24/22 | |
| Φ12(13) | 3/8″ | G3/8″ | 10 | M18/M20 | 10 | PG11/ | 26 | |
| Φ15 (16) | 1/2″ | G1/2 | 12 | M20/M22/M24 | 10 | PG13.5/ | 30 | |
| Φ20(19) | 3/4″ | G3/4″ | 12 | M25/M27/M30 | 12 | PG21 | 35 | |
| Φ25 | 1″ | G1″ | 14 | M32/M33/M36 | 12 | PG29 | 43 | |
| Φ32 | 1-1/4″ | G1-1/4″ | 14 | M36/M40/M42/M48 | 14 | PG29 | 52 | |
| Φ38(40) | 1-1/2″ | G1-1/2″ | 16 | M48/M50 | 14 | PG36/PG42 | 60 | |
| Φ51(50) | 2″ | G2″ | 16 | M60/M63/M64/M72 | 15 | PG48 | 75 | |
| Φ64(70) | 2-1/2″ | G2-1/2″ | 24 | M76 | 20 | 89/87 | ||
| Φ75(80) | 3W | G3″ | 25 | M88 | 22 | 102/97 | ||
| Φ100 | 4″ | G4″ | 25 | M114 | 28 | 133/128 | ||
| Φ125 | 5W | G5″ | 25 | M140 | 29 | 158 | ||
| Φ150 | 6″ | G6″ | 25 | M164 | 29 | 183 | ||
