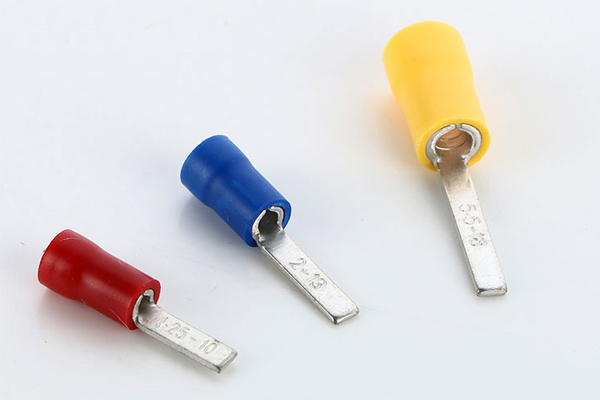

Insulated Crimping Spade Terminals Easy Entry Wire Connector BDBF
Specification:
Material: Copper, Tin-plated copper
Insulated Material: PVC
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance

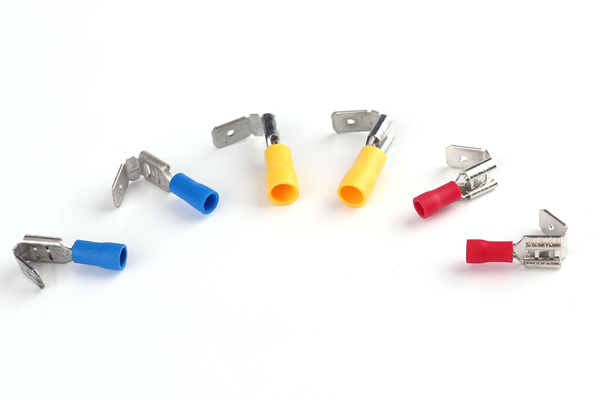

Insulated Piggyback Spade Connector offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(AWG22～16)Max. current: lmax=19A | |||||
| Item No | DIMENSION | Color | |||

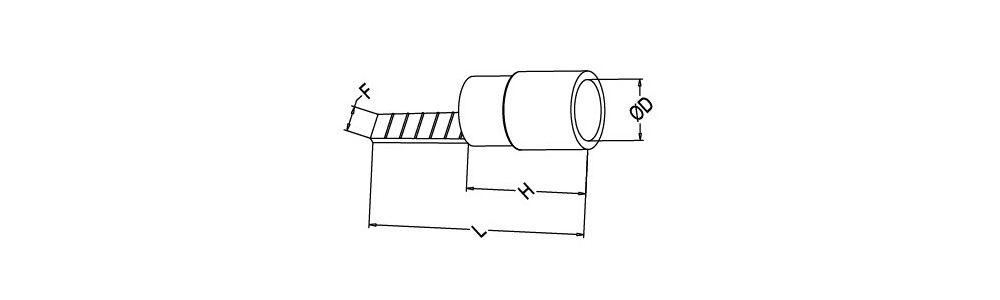

| PVC | Fφ | L | H | Dφ | Red |
| BDBF1.25-10 | 2.3 | 20 | 11 | 4 | |
| BDBF1.25-11 | 3 | 21 | 11 | 4 | |
| BDBF1.25-14 | 3 | 24 | 11 | 4 | |
| BDBF1.25-18 | 2.2 | 28 | 11 | 4 | |
| Insulated square：1.5～2.5mm²(AWG16～14)Max. current: lmax=19A | |||||
| Item No | DIMENSION | Color | |||
| PVC | Fφ | L | H | Dφ | Blue |
| BDBF2-10 | 2.4 | 19 | 11 | 4.5 | |
| BDBF2-14 | 2.4 | 24 | 11 | 4.5 | |
| BDBF2-18 | 2.4 | 28 | 11 | 4.5 | |
| Insulated square：4～6mm²(AWG12～10)Max. current: lmax=48A | |||||
| Item No | DIMENSION | Color | |||
| PVC | Fφ | L | H | Dφ | Yellow |
| BDBF5.5-10 | 2.8 | 22.5 | 13.5 | 6.4 | |
| BDBF5.5-14 | 4.5 | 26.5 | 13.5 | 6.4 | |
| BDBF5.5-18 | 4.5 | 30.5 | 13.5 | 6.4 | |
