Copper Lugs HUP Type Wire Lugs HUPD
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

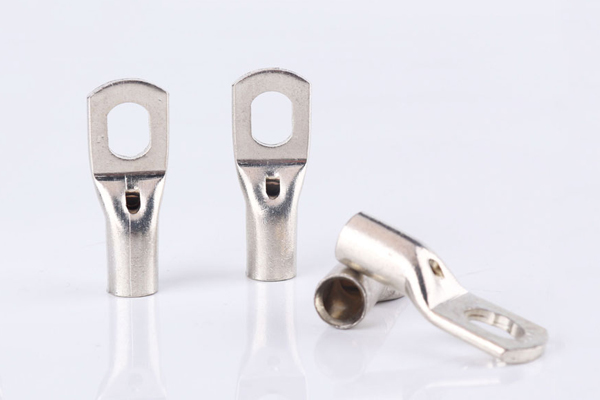

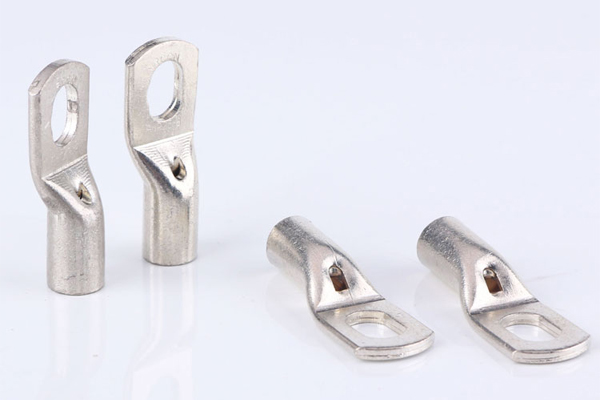

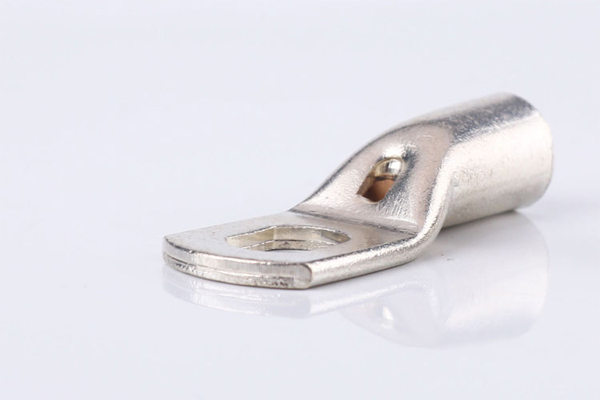

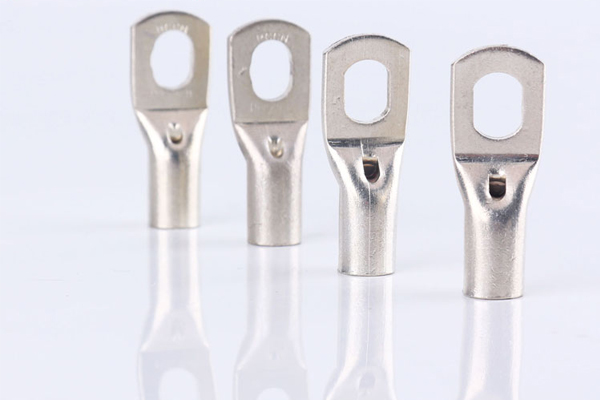

The Copper Lugs HUP Type are made of the high-quality copper which ensures good conductivity at its user end. The Copper Lugs are tin plated to provide excellent corrosion resistance. Tube size is for small wire, HUP standard.
(In mm)
| Item No. | E2*E1 | ΦD | Φd | W | B | L |
| HUPD25-6.5×8.5 | 6.5×8.5 | 11 | 7.9 | 15 | 17 | 39.5 |
| HUPD25-8.5×12 | 8.5×12 | 11 | 7.9 | 17 | 17 | 44 |
