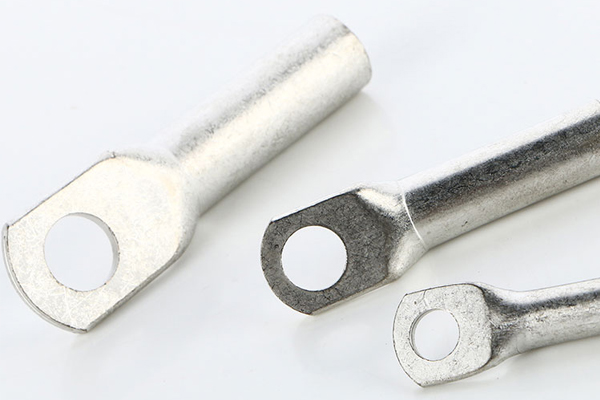

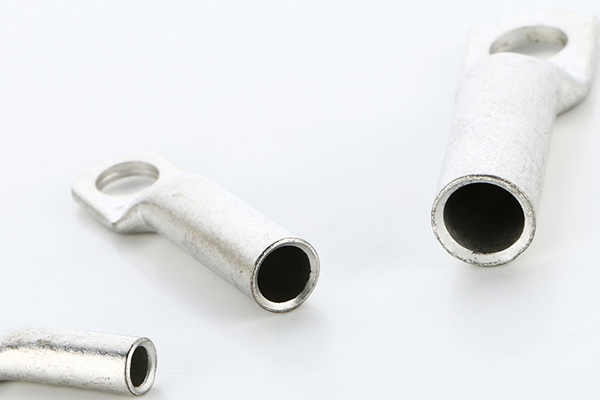

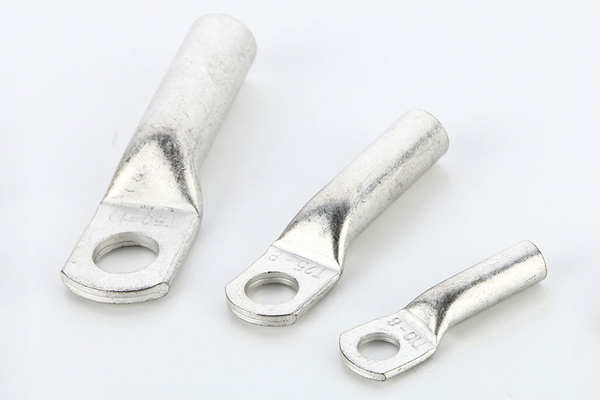

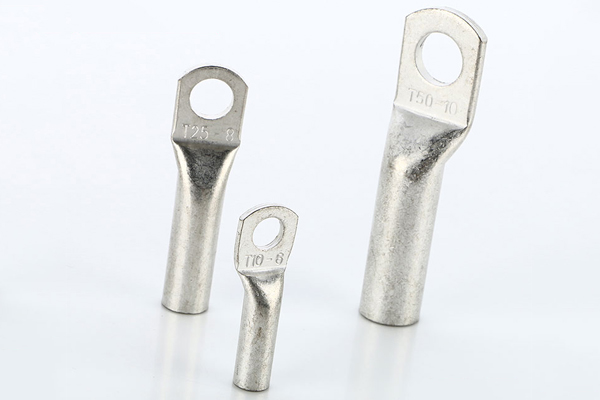

Copper Lug Terminals Electrical Lugs TL
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Copper Lug Terminals are made of the high-quality copper which ensures good conductivity at its user end. The Copper Lug Terminals are tin plated to provide excellent corrosion resistance.
(In mm)
| Item No. | E | Dφ | dφ | W | B | L |
| TL10-6 | 6.4 | 6.9 | 4.7 | 11.9 | 19 | 35 |
| TL10-8 | 8.3 | 6.9 | 4.7 | 13.5 | 19 | 38 |
| TL16-6 | 6.4 | 7.8 | 5.6 | 11.9 | 23 | 39 |
| TL16-8 | 8.3 | 7.8 | 5.6 | 13.6 | 23 | 42 |
| TL25-8 | 8.3 | 9.5 | 7.1 | 14 | 29 | 50 |
| TL25-10 | 10.5 | 9.5 | 7.1 | 16 | 29 | 53 |
| TL35-8 | 8.3 | 11 | 8.2 | 16.5 | 30 | 54 |
| TL35-10 | 10.5 | 11 | 8.2 | 16.5 | 30 | 58 |
| TL50-10 | 10.5 | 12.5 | 9.5 | 17.9 | 35 | 64 |
| TL50-12 | 13 | 12.5 | 9.5 | 17.9 | 35 | 64 |
| TL70-10 | 10.5 | 15 | 11.5 | 21.5 | 38 | 70 |
| TL70-12 | 13 | 15 | 11.5 | 21.5 | 38 | 70 |
| TL95-14 | 14.5 | 17 | 13.5 | 24.7 | 43 | 88 |
| TL95-16 | 16.5 | 17 | 13.5 | 24.7 | 43 | 88 |
| TL120-14 | 14.5 | 20 | 15.6 | 28.9 | 49 | 94 |
| TL120-16 | 16.5 | 20 | 15.6 | 28.9 | 49 | 94 |
| TL150-14 | 14.5 | 21 | 16.5 | 30.4 | 56 | 102 |
| TL150-16 | 16.5 | 21 | 16.5 | 30.4 | 56 | 102 |
| TL185-14 | 14.5 | 23.6 | 18.4 | 37 | 63 | 113 |
| TL185-16 | 16.5 | 23.6 | 18.4 | 37 | 63 | 113 |
| TL240-14 | 14.5 | 26.4 | 21.2 | 38.5 | 66 | 119 |
| TL240-16 | 16.5 | 26.4 | 21.2 | 38.5 | 66 | 119 |
| TL300-14 | 14.5 | 28.6 | 23.4 | 42 | 77 | 133 |
| TL400-16 | 16.5 | 32.8 | 26.8 | 48 | 71.7 | 140 |
| S-TL10-6 | 6.4 | 6.8 | 4.7 | 11.9 | 18 | 35 |
| S-TL10-8 | 8.3 | 6.8 | 4.7 | 15 | 18 | 38 |
| S-TL16-6 | 6.4 | 7.8 | 5.6 | 11.9 | 21.5 | 39 |
| S-TL16-8 | 8.3 | 7.8 | 5.6 | 15 | 21.5 | 41.5 |
| S-TL25-8 | 8.3 | 9.4 | 7.1 | 15 | 29 | 50 |
| S-TL25-10 | 10.5 | 9.4 | 7.1 | 18 | 29 | 55 |
| S-TL35-8 | 8.3 | 11.3 | 8.7 | 16 | 31 | 53 |
| S-TL35-10 | 10.5 | 11.3 | 8.7 | 19 | 31 | 57 |
| S-TL50-10 | 10.5 | 12.6 | 9.8 | 20 | 35 | 63 |
| S-TL50-12 | 13 | 12.6 | 9.8 | 21 | 35 | 67 |
| S-TL70-10 | 10.5 | 14.7 | 11.5 | 21.5 | 39 | 69 |
| S-TL70-12 | 13.2 | 14.7 | 11.5 | 21.5 | 39 | 71 |
| S-TL95-12 | 13 | 16.9 | 13.5 | 24.7 | 46 | 79 |
| S-TL95-14 | 14.5 | 16.9 | 13.5 | 24.7 | 46 | 83 |
| S-TL95-16 | 16.5 | 16.9 | 13.5 | 27 | 46 | 86 |
| S-TL120-1 | 13 | 19.9 | 15.6 | 28.9 | 51 | 87 |
| S-TL120-1 | 14.5 | 19.9 | 15.6 | 28.9 | 51 | 91 |
| S-TL120-1 | 16.5 | 19.9 | 15.6 | 28.9 | 52 | 95 |
| S-TL150-1 | 13 | 20.9 | 16.5 | 30.4 | 56 | 99 |
| S-TL150-1 | 14.5 | 20.9 | 16.5 | 30.4 | 56 | 103 |
| S-TL150-1 | 16.5 | 20.9 | 16.5 | 30.4 | 56 | 103 |
| S-TL185-1 | 13 | 23.7 | 18.8 | 34 | 62 | 108 |
| S-TL185-1 | 14.5 | 23.7 | 18.8 | 34 | 62 | 112 |
| S-TL185-1 | 16.5 | 23.7 | 18.8 | 34 | 62 | 113 |
| S-TL240-1 | 13 | 26.2 | 21.2 | 38.4 | 66 | 114 |
| S-TL240-1 | 14.5 | 26.2 | 21.2 | 38.4 | 66 | 118 |
| S-TL240-1 | 16.5 | 26.2 | 21.2 | 38.4 | 66 | 119 |
| S-TL300-1 | 14.5 | 28.6 | 23.4 | 41.7 | 75 | 132 |
| S-TL300-1 | 16.5 | 28.6 | 23.4 | 41.7 | 75 | 132 |
| S-TL400-1 | 16.5 | 32.8 | 26.8 | 47.8 | 79 | 140 |
| S-TL500-1 | 16.5 | 38.4 | 29.8 | 54.8 | 78 | 143 |
