Copper Cable Lug Wire Lugs SC

Specification:

Material: Copper, Tin-plated copper， Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

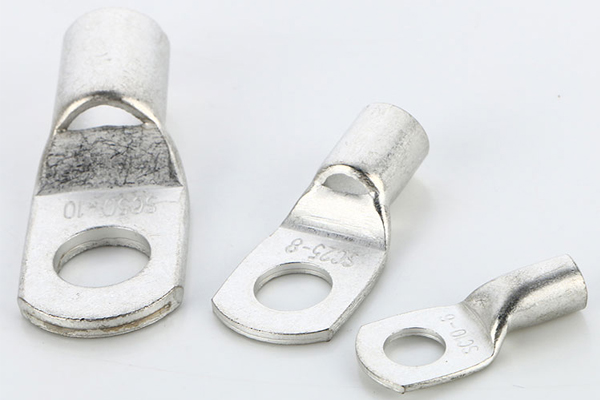

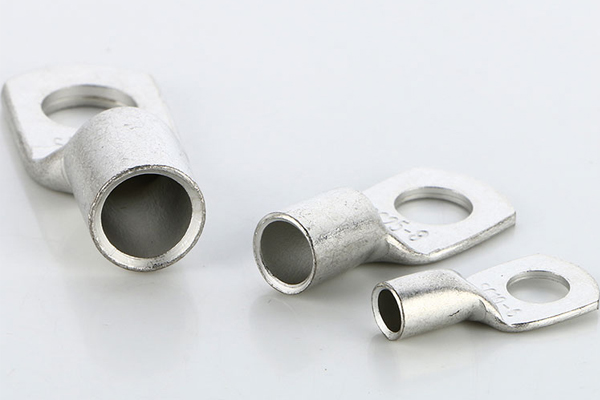

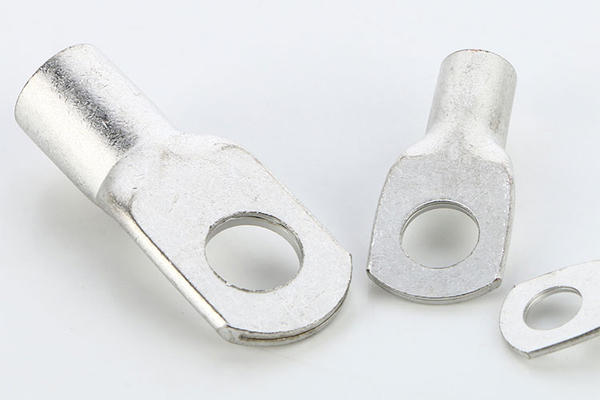

The Copper Cable Lug is made of the high-quality copper which ensures good conductivity at its user end. The Copper Cable Lug is tin plated to provide excellent corrosion resistance.
No cracking, beautiful finish with no sharp edges.

Item No. E Dφ dφ W B L
SC1.5-3 3.2 3.7 1.8 8 5 16
SC1.5-4 4.2 3.7 1.8 8 5 16
SC1.5-5 5.2 3.7 1.8 10 5 17
SC1.5-6 6.5 3.7 1.8 10 5 18
SC2.5-4 4.2 4 2.4 8 7 18
SC2.5-5 5.2 4 2.4 10 7 20
SC2.5-6 6.5 4 2.4 10 7 20
SC2.5-8 8.4 4 2.4 12.5 7 23
SC4-4 4.2 4.8 3.1 10 7 20
SC4-5 5.2 4.8 3.1 10 7 20
SC4-6 6.5 4.8 3.1 10 7 20
SC4-8 8.4 4.8 3.1 12.5 7 23
SC6-4 4.2 5.5 3.8 10 9 24
SC6-5 5.2 5.5 3.8 10 9 24
SC6-6 6.5 5.5 3.8 12 9 24
SC6-8 8.4 5.5 3.8 12.5 9 26
SC6-10 10.5 6.2 4 15 9 28
SC10-5 5.2 6.2 4.5 12 9 25
SC10-6 6.5 6.2 4.5 12 9 25
SC10-8 8.4 6.2 4.5 12.5 9 27
SC10-10 10.5 6.2 4.5 15 9 29
SC10-12 13 6.2 4.5 17 9 31
SC16-5 5.2 7.1 5.4 12 12 30
SC16-6 6.5 7.1 5.4 12 12 30
SC16-8 8.4 7.1 5.4 12.5 12 30
SC16-10 10.5 7.1 5.4 16 12 33
SC16-12 13 7.1 5.4 17 12 35
SC25-5 5.2 8.8 6.8 13 12 33
SC25-6 6.5 8.8 6.8 13 12 33
SC25-8 8.4 8.8 6.8 15 12 33
SC25-10 10.5 8.8 6.8 18 12 34
SC25-12 13 8.8 6.8 18 12 35
SC25-14 15 8.8 6.8 20 12 38
SC35-5 5.2 10.6 8.2 16 14 38
SC35-6 6.5 10.6 8.2 16 14 38
SC35-8 8.4 10.6 8.2 16 14 38
SC35-10 10.5 10.6 8.2 18 14 39
SC35-12 13 10.6 8.2 19 14 40.5
SC35-14 15 10.6 8.2 20 14 42
SC50-6 6.5 12.4 9.5 17.8 16 45
SC50-8 8.4 12.4 9.5 17.8 16 45
SC50-10 10.5 12.4 9.5 17.8 16 45
SC50-12 13 12.4 9.5 20 16 45
SC50-14 15 12.4 9.5 22 16 46
SC50-16 17 12.4 9.5 24 16 47
SC70-8 8.4 14.7 11.2 21 20 52
SC70-10 10.5 14.7 11.2 21 20 52
SC70-12 13 14.7 11.2 21 20 52
SC70-14 15 14.7 11.2 21 20 52
SC70-16 17 14.7 11.2 25 20 53
SC95-8 8.4 17.4 13.5 25 23 58
SC95-10 10.5 17.4 13.5 25 23 58
SC95-12 13 17.4 13.5 25 23 58
SC95-14 15 17.4 13.5 25 23 58
SC95-16 17 17.4 13.5 25 23 58
SC120-8 8.4 19.4 15 28 22 63
SC120-10 10.5 19.4 15 28 22 63
SC120-12 13 19.4 15 28 22 63
SC120-14 15 19.4 15 28 22 63
SC120-16 17 19.4 15 28 22 63
SC120-20 21 19.4 15 28 22 63
SC150-8 8.4 21.2 16.5 30.5 26 70
SC150-10 10.5 21.2 16.5 30.5 26 70
SC150-12 13 21.2 16.5 30.5 26 70
SC150-14 15 21.2 16.5 30.5 26 70
SC150-16 17 21.2 16.5 30.5 26 70
SC150-20 21 21.2 16.5 30.5 26 70
SC185-10 10.5 23.5 18.5 34 32 75
SC185-12 13 23.5 18.5 34 32 75
SC185-14 15 23.5 18.5 34 32 75
SC185-16 17 23.5 18.5 34 32 75
SC185-20 21 23.5 18.5 34 32 75
SC240-10 10.5 26.5 21 38.5 38 90
SC240-12 13 26.5 21 38.5 38 90
SC240-14 15 26.5 21 38.5 38 90
SC240-16 17 26.5 21 38.5 38 90
SC240-18 19 26.5 21 38.5 38 90
SC240-20 21 26.5 21 38.5 38 90
SC300-10 10.5 30 23.5 43 42 98
SC300-12 13 30 23.5 43 42 98
SC300-14 15 30 23.5 43 42 98
SC300-16 17 30 23.5 43 42 98
SC300-20 21 30 23.5 43 42 98
SC400-10 10.5 36.5 28.5 52 44 110
SC400-12 13 36.5 28.5 52 44 110
SC400-14 15 36.5 28.5 52 44 110
SC400-16 17 36.5 28.5 52 44 110
SC400-20 21 36.5 28.5 52 44 110
SC500-10 10.5 39 30 56 48 120
SC500-12 13 39 30 56 48 120
SC500-14 15 39 30 56 48 120
SC500-16 17 39 30 56 48 120
SC500-20 21 39 30 56 48 120
SC630-10 10.5 45 35 65 56 140
SC630-12 13 45 35 65 56 140
SC630-14 15 45 35 65 56 140
SC630-16 17 45 35 65 56 140
SC630-20 21 45 35 65 56 140
