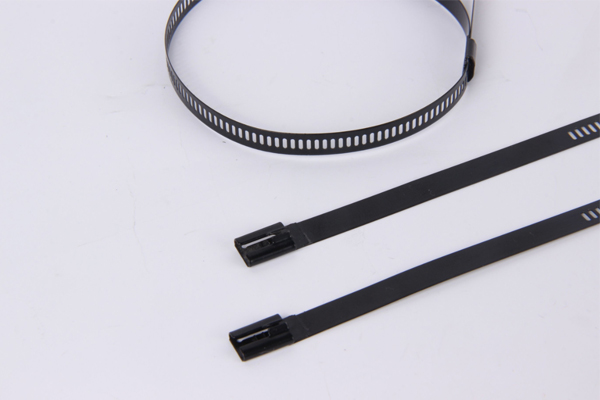

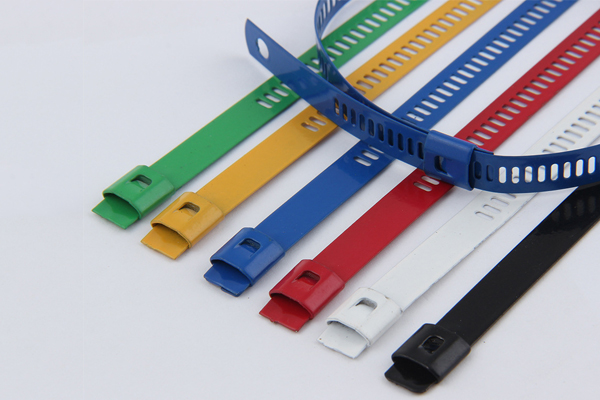

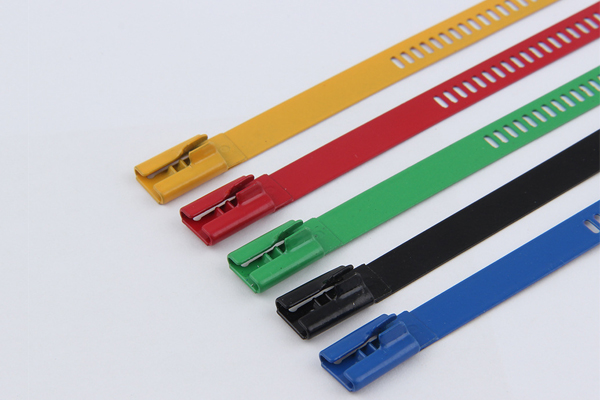

Coated Wire Ties Stainless Steel Cable Ties MLTP Corrosion Resistant
Specification：
Material: Stainless Steel Grade 304 or 316
Coating: Polyester/Epoxy, Nylon 11
Working Temperature: -80℃ to 150℃
Color: Entirely Metallic
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic, corrosion resistant
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. Larger slot at the end, for the tools of hook-type. Coated Wire Ties also available with coating for customized applications.
| Item No. | Width | Length | Thickness | Max.Bundle Dia. | Min.Bundle Dia. | Min. Tensile Strength | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | lbs | |
| MLTP7x150 | 7 | 0.28 | 150 | 5.91 | 0.40 | 0.016 | 40 | 1. 57 | 12.7 | 0.50 | 1120 | 250 |
| MLTP7x225 | 225 | 8.86 | 62 | 2. 44 | ||||||||
| MLTP7x300 | 300 | 11.81 | 81 | 3. 19 | ||||||||
| MLTP7x400 | 400 | 15.75 | 113 | 4. 45 | ||||||||
| MLTP7x450 | 450 | 17.72 | 127 | 5. 00 | ||||||||
| MLTP7x550 | 550 | 21.65 | 159 | 6. 26 | ||||||||
| MLTP7x600 | 600 | 23.62 | 176 | 6. 93 | ||||||||
| MLTP7x700 | 700 | 27.56 | 207 | 8. 15 | ||||||||
| MLTP7x800 | 800 | 31.50 | 238 | 9. 37 | ||||||||
| MLTP12x150 | 12 | 0.47 | 150 | 5.91 | 0.50 | 0.020 | 40 | 1. 57 | 25.4 | 1.00 | 2000 | 450 |
| MLTP12x225 | 225 | 8.86 | 62 | 2. 44 | ||||||||
| MLTP12x300 | 300 | 11.81 | 81 | 3. 19 | ||||||||
| MLTP12x400 | 400 | 15.75 | 113 | 4. 45 | ||||||||
| MLTP12x450 | 450 | 17.72 | 127 | 5. 00 | ||||||||
| MLTP12x550 | 550 | 21.65 | 159 | 6. 26 | ||||||||
| MLTP12x600 | 600 | 23.62 | 176 | 6. 93 | ||||||||
| MLTP12x700 | 700 | 27.56 | 207 | 8. 15 | ||||||||
| MLTP12x800 | 800 | 31.50 | 238 | 9. 37 | ||||||||
