Cable Terminal Lugs Electrical Lugs LYF

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

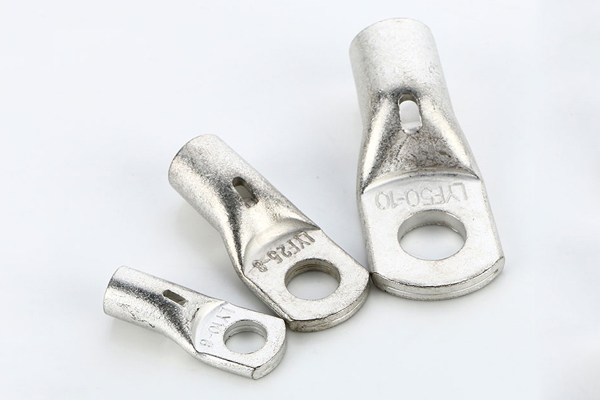

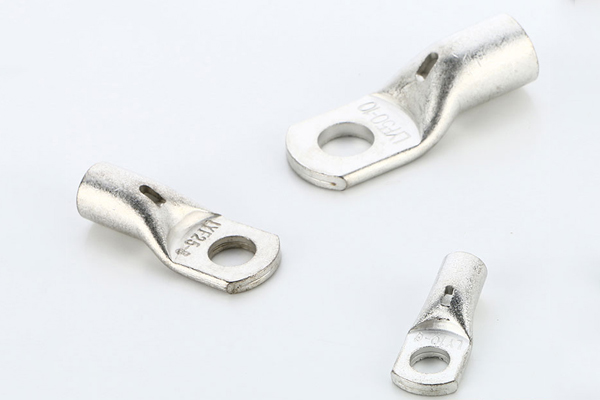

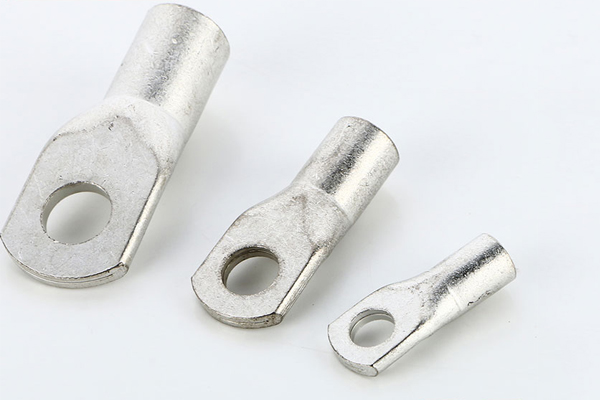

The Cable Terminal Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Cable Terminal Lugs are tin plated to provide excellent corrosion resistance.

Cable Terminal Lugs

(In mm)

Item No. E Dφ dφ W B L
LYF10-5 5.3 8 5 11.5 9 28
LYF10-6 6.5 8 5 11.5 9 28
LYF10-8 8.4 8 5 13.5 9 32
LYF10-10 10.5 8 5 16 9 34
LYF16-6 6.5 9 6 13 10 33
LYF16-8 8.4 9 6 13 10 33
LYF16-10 10.5 9 6 16 10 38
LYF16-12 13 9 6 22 10 47
LYF25-6 6.5 11 8 16 11 37
LYF25-8 8.4 11 8 16 11 38
LYF25-10 10.5 11 8 17 11 42
LYF25-12 13 11 8 22 11 47
LYF35-6 6.5 13 9 18 14 44
LYF35-8 8.4 13 9 18 14 44
LYF35-10 10.5 13 9 18 14 44
LYF35-12 13 13 9 22 14 52
LYF50-6 6.5 14.5 11 21 17 50
LYF50-8 8.4 14.5 11 21 17 50
LYF50-10 10.5 14.5 11 21 17 50
LYF50-12 13 14.5 11 21 17 53
LYF70-6 6.5 17 13 25 20 55
LYF70-8 8.4 17 13 25 20 55
LYF70-10 10.5 17 13 25 20 55
LYF70-12 13 17 13 25 20 58
LYF70-16 17 17 13 28 20 64
LYF95-8 8.4 20 15 29 23 69
LYF95-10 10.5 20 15 29 23 69
LYF95-12 13 20 15 29 23 69
LYF95-16 17 20 15 29 23 69
LYF120-10 10.5 22 17 32 25 73
LYF120-12 13 22 17 32 25 73
LYF120-16 17 22 17 32 25 73
LYF150-10 10.5 25 19 36 30 80
LYF150-12 13 25 19 36 30 80
LYF150-16 17 25 19 36 30 80
LYF150-20 21 25 19 36 30 87
LYF185-10 10.5 27 21 39 35 86
LYF185-12 13 27 21 39 35 86
LYF185-16 17 27 21 39 35 86
LYF185-20 21 27 21 39 35 93
LYF240-10 10.5 30 24 44 35 95
LYF240-12 13 30 24 44 35 95
LYF240-16 17 30 24 44 35 95
LYF240-20 21 30 24 44 35 95
LYF300-10 10.5 32 26 47 42 114
LYF300-12 13 32 26 47 42 114
LYF300-16 17 32 26 47 42 114
LYF300-20 21 32 26 47 42 114
LYF300-24 26 32 26 47 42 114
LYF400-12 13 36 30 54 48 126
LYF400-16 17 36 30 54 48 126
LYF400-20 21 36 30 54 48 126
LYF400-24 26 36 30 54 48 126
LYF500-20 21 42 33 61 47 134
LYF500-24 26 42 33 61 47 134
LYF630-16 17 53 39 75 68 180
LYF630-20 21 53 39 75 68 180
LYF630-24 26 53 39 75 68 180
