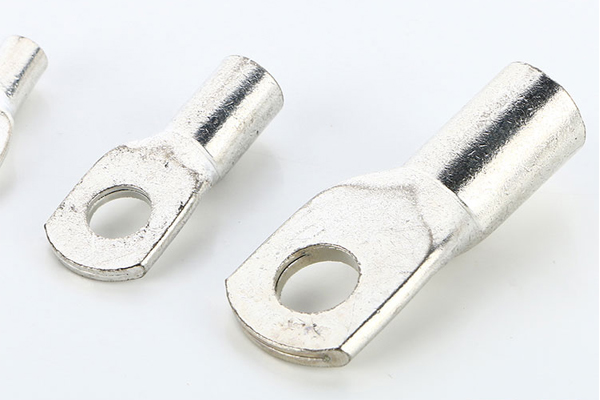

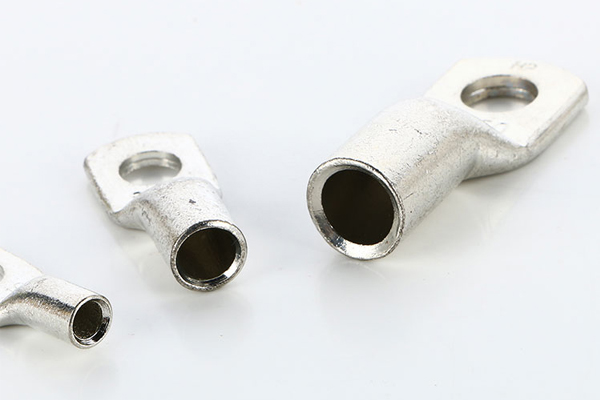

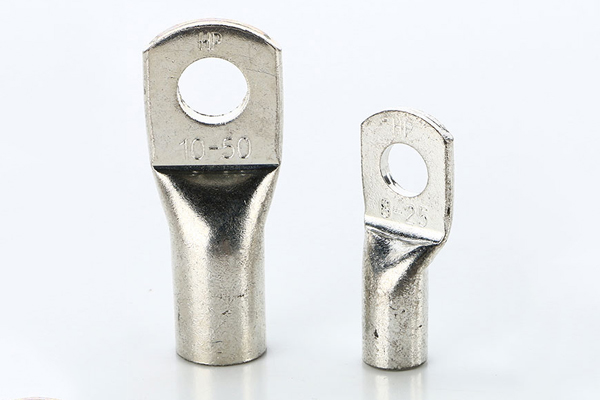

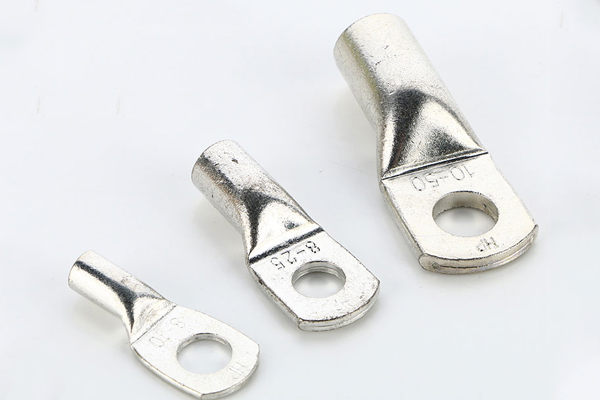

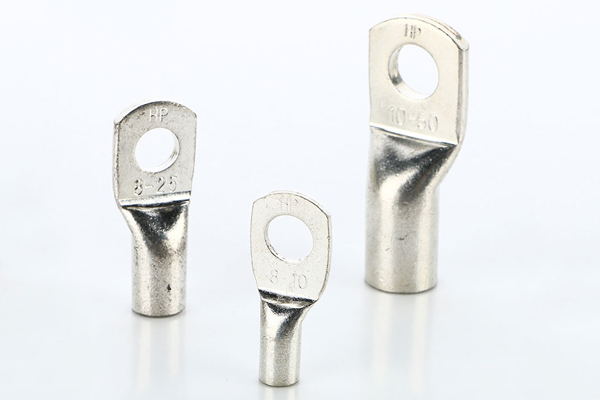

Cable Copper Lugs Compression Lugs Electrical Cable Terminals HP
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Cable Copper Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Cable Copper Lugs are tin plated to provide excellent corrosion resistance.
(In mm)
| Item No. | E | Dφ | dφ | W | B | L |
| HP1.5-3 | 3.2 | 3.3 | 1.8 | 6.5 | 6 | 15.5 |
| HP1.5-4 | 4.3 | 3.3 | 1.8 | 6.5 | 6 | 17.5 |
| HP1.5-5 | 5.3 | 3.3 | 1.8 | 9 | 6 | 19 |
| HP1.5-6 | 6.4 | 3.3 | 1.8 | 9 | 6 | 22.5 |
| HP2.5-4 | 4.3 | 4.2 | 2.2 | 7.5 | 6 | 17.1 |
| HP2.5-5 | 5.3 | 4.2 | 2.2 | 8.5 | 6 | 19.2 |
| HP2.5-6 | 6.4 | 4.2 | 2.2 | 9.5 | 6 | 22.8 |
| HP2.5-8 | 8.4 | 4.2 | 2.2 | 13 | 6 | 28 |
| HP4-4 | 4.3 | 5 | 3 | 8.5 | 8 | 21.8 |
| HP4-5 | 5.3 | 5 | 3 | 9 | 8 | 22.2 |
| HP4-6 | 6.4 | 5 | 3 | 10 | 8 | 22.2 |
| HP6-5 | 5.3 | 6.5 | 3.5 | 10 | 11 | 28.2 |
| HP6-6 | 6.4 | 6.5 | 3.5 | 12 | 11 | 29.1 |
| HP6-8 | 8.4 | 6.5 | 3.5 | 15 | 11 | 31.8 |
| HP6-10 | 10.5 | 6.5 | 3.5 | 17 | 11 | 37 |
| HP10-5 | 5.3 | 7 | 4.5 | 12 | 11 | 28.1 |
| HP10-6 | 6.4 | 7 | 4.5 | 12 | 11 | 29 |
| HP10-8 | 8.4 | 7 | 4.5 | 14.5 | 10 | 33.3 |
| HP10-10 | 10.5 | 7 | 4.5 | 16 | 11 | 36.9 |
| HP16-5 | 5.3 | 8.5 | 5.5 | 12 | 14 | 33.1 |
| HP16-6 | 6.4 | 8.5 | 5.5 | 12.5 | 14 | 33.5 |
| HP16-8 | 8.4 | 8.5 | 5.5 | 13.8 | 14 | 38 |
| HP16-10 | 10.5 | 8.5 | 5.5 | 17 | 14 | 42 |
| HP16-12 | 13.2 | 8.5 | 5.5 | 20 | 14 | 44.5 |
| HP25-6 | 6.4 | 10 | 7 | 14 | 15 | 34.6 |
| HP25-8 | 8.4 | 10 | 7 | 16 | 15 | 39 |
| HP25-10 | 10.5 | 10 | 7 | 18 | 15 | 44.5 |
| HP25-12 | 13.2 | 10 | 7 | 20 | 15 | 47 |
| HP35-6 | 6.4 | 12 | 8.5 | 16.7 | 16 | 38 |
| HP35-8 | 8.4 | 12 | 8.5 | 17.5 | 17 | 43 |
| HP35-10 | 10.5 | 12 | 8.5 | 18.5 | 16 | 46 |
| HP35-12 | 13.2 | 12 | 8.5 | 21.3 | 16 | 50 |
| HP50-8 | 8.4 | 14 | 10 | 21 | 19 | 47 |
| HP50-10 | 10.5 | 14 | 10 | 21 | 19 | 51.2 |
| HP50-12 | 13.2 | 14 | 10 | 21.5 | 19 | 52 |
| HP70-8 | 8.4 | 16.5 | 12 | 23.2 | 21 | 52 |
| HP70-10 | 10.5 | 16.5 | 12 | 23.2 | 21 | 52 |
| HP70-12 | 13.2 | 16.5 | 12 | 23.2 | 21 | 55.7 |
| HP95-8 | 8.4 | 18 | 13.5 | 25.6 | 25 | 59 |
| HP95-10 | 10.5 | 18 | 13.5 | 25.6 | 25 | 59 |
| HP95-12 | 13.2 | 18 | 13.5 | 25.6 | 25 | 61 |
| HP120-10 | 10.5 | 19.5 | 15 | 28.2 | 27 | 68 |
| HP120-12 | 13.2 | 19.5 | 15 | 28.2 | 27 | 68 |
| HP120-16 | 17 | 19.5 | 15 | 30 | 27 | 74 |
| HP150-10 | 10.5 | 21.2 | 16.5 | 30.6 | 30 | 71 |
| HP150-12 | 13.2 | 21.2 | 16.5 | 30.6 | 30 | 71 |
| HP150-16 | 17 | 21.2 | 16.5 | 30.6 | 30 | 77 |
| HP185-10 | 10.5 | 24.2 | 19 | 35.1 | 32 | 79 |
| HP185-12 | 13.2 | 24.2 | 19 | 35.1 | 32 | 79 |
| HP185-16 | 17 | 24.2 | 19 | 35.1 | 32 | 83 |
| HP240-12 | 13.2 | 26.2 | 21 | 37.7 | 36 | 89 |
| HP240-16 | 17 | 26.2 | 21 | 37.7 | 36 | 89 |
| HP240-20 | 21 | 26.2 | 21 | 37.7 | 36 | 95 |
| HP300-12 | 13.2 | 30.2 | 24 | 44 | 44 | 110 |
| HP300-16 | 17 | 30.2 | 24 | 44 | 44 | 110 |
| HP300-20 | 21 | 30.2 | 24 | 44 | 44 | 110 |
| HP400-16 | 17 | 33.7 | 27.5 | 49 | 50 | 119 |
| HP400-20 | 21 | 33.7 | 27.5 | 49 | 50 | 119 |
