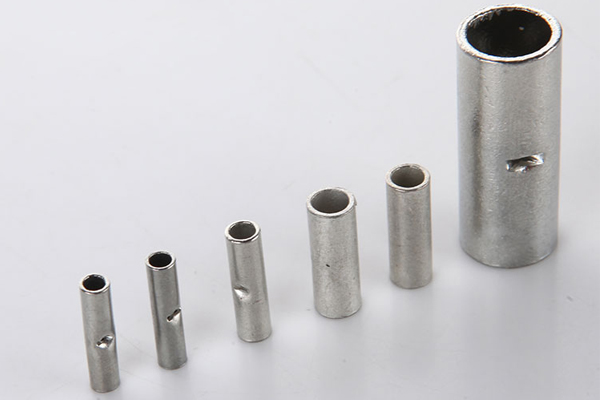

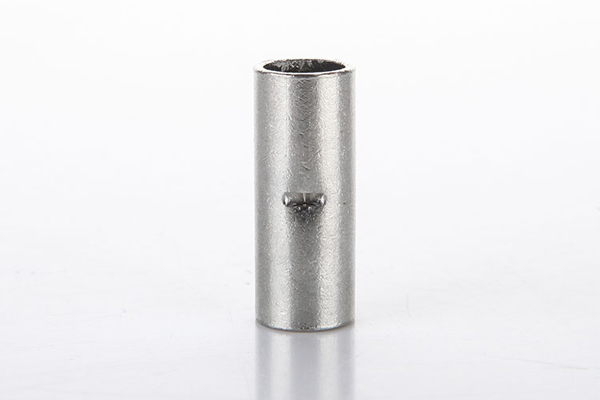

Non-Insulated Butt Connectors Short Butt Terminal Tin-plated BC
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Non-Insulated Butt Connectors offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Item No | Conduct square | DIMENSION | lmax | |||
| A.W.G | mm² | L | dф | Dф | ||
| mm | mm | mm | ||||
| BC-1.25 | 22~16 | 0.5~1.5 | 15 | 2.1 | 3.7 | 19A |
| BC-2 | 16~14 | 1.5~2.5 | 15 | 3 | 4 | 27A |
| BC-3.5 | 12~14 | 2.5-4 | 15 | 3.5 | 4.8 | 37A |
| BC-5.5 | 12~10 | 4~6 | 15 | 4.1 | 5.5 | 48A |
