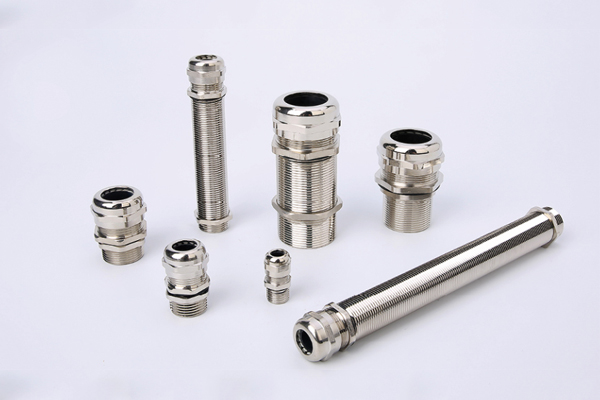

Metal Brass Cable Gland Long Thread Length Type
Specification:
Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved
(In mm)
| Item | Cable Range | Thread Length GL |
Thread O.D. AG |
Joint Length H |
Spanner size | Item No. |
| M12X1.5 | 3-6.5 | 10 | 12 | 17 | 14 | BM12L |
| M16X1.5 | 4-8 | 12 | 16 | 19 | 18 | BM16L |
| M18X1.5 | 5-10 | 12 | 18 | 21 | 20 | BM18L |
| M20X1.5 | 6-12 | 12 | 20 | 22 | 22 | BM20L |
| M22X1.5 | 10-14 | 12 | 22 | 23 | 24 | BM22L |
| M25X1.5 | 10-14 | 12 | 25 | 25 | 24/27 | BM25-14L |
| M25X1.5 | 13-18 | 12 | 25 | 27 | 30/27 | BM25-18L |
| M32X1.5 | 15-22 | 15 | 32 | 29 | 35 | BM32L |
| M40X1.5 | 18-25 | 15 | 40 | 31 | 40/45 | BM40-25L |
| M40X1.5 | 22-30 | 15 | 40 | 35 | 45 | BM40-30L |
| M50X1.5 | 32-38 | 15 | 50 | 37 | 57/55 | BM50L |
| M63X1.5 | 37-44 | 18 | 63 | 38 | 64/68 | BM63L |
