Category:

Bell Mouth Copper Lugs Cable Lugs HESL

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

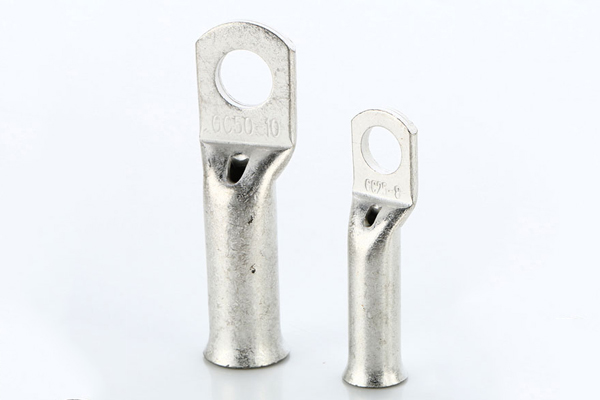

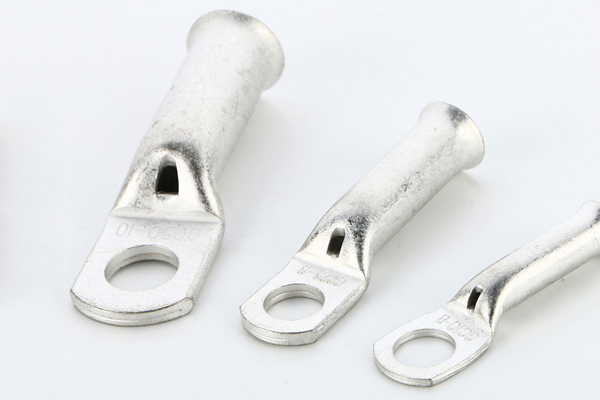

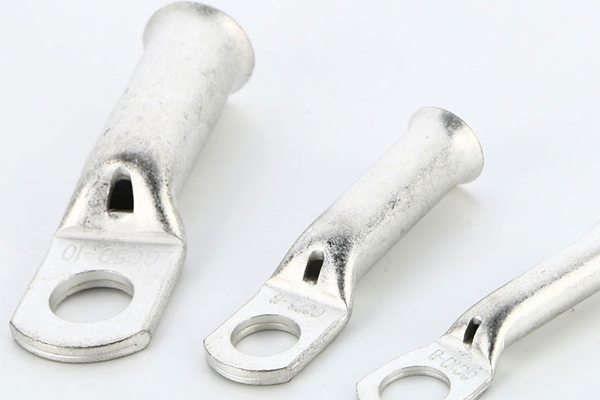

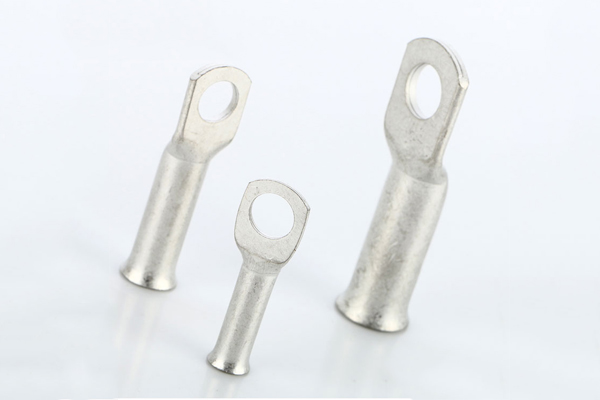

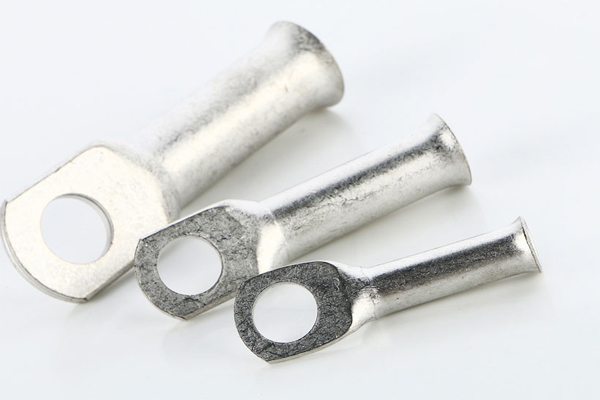

The Bell Mouth Copper Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Bell Mouth Copper Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. E Dφ dφ W B L
HESL1.5-3 3.2 3.7 1.8 8 11 21
HESL1.5-4 4.3 3.7 1.8 8 11 22
HESL1.5-5 5.3 3.7 1.8 10 12 24
HESL1.5-6 6.5 3.7 1.8 10 12 25
HESL2.5-3 3.2 3.9 2.3 8 12 22
HESL2.5-4 4.3 3.9 2.3 8 12 23
HESL2.5-5 5.3 3.9 2.3 10 12 25
HESL2.5-6 6.5 3.9 2.3 10 12 25
HESL2.5-8 8.3 4.3 2.3 12.5 12 27.5
HESL4-4 4.3 4.7 3 10 13 26
HESL4-5 5.3 4.7 3 10 13 27
HESL4-6 6.5 4.7 3 10 13 28
HESL4-8 8.3 4.7 3 12.5 13 29
HESL6-4 4.3 5.9 4 10 18.5 33.6
HESL6-5 5.3 5.9 4 10 18.5 33.6
HESL6-6 6.5 5.9 4 11 18.5 33.6
HESL6-8 8.3 5.9 4 12.5 18.5 36.3
HESL6-10 10.3 6.2 4 15 18.5 37.3
HESL10-5 5.3 6.6 4.5 11 22 39
HESL10-6 6.5 6.6 4.5 11 22 39
HESL10-8 8.3 6.6 4.5 12.5 22 39
HESL10-10 10.3 6.9 4.5 16 22 43.1
HESL10-12 12.7 6.9 4.5 18 21 43.1
HESL16-5 5.3 7.5 5.5 11 23 39.7
HESL16-6 6.5 7.5 5.5 11 23 39.7
HESL16-8 8.3 7.5 5.5 12.5 22 39.7
HESL16-10 10.3 7.5 5.5 16 23 44.9
HESL16-12 12.7 8.1 5.5 18 22 44.9
HESL25-5 5.3 9.1 6.7 13 28 47.2
HESL25-6 6.5 9.1 6.7 13 28 47.2
HESL25-8 8.3 9.1 6.7 13 28 47.2
HESL25-10 10.3 9.1 6.7 16 29 51.9
HESL25-12 12.7 9.1 6.7 18 28 51.9
HESL25-14 14.8 9.1 6.7 20 28 53.9
HESL35-5 5.3 11 8.6 16 31 52.6
HESL35-6 6.5 11 8.6 16 31 52.6
HESL35-8 8.3 11 8.6 16 31 52.6
HESL35-10 10.3 11 8.6 16.7 31 56.5
HESL35-12 12.7 11 8.6 18 31 56.5
HESL35-14 14.8 11 8.6 20 31 58.5
HESL35-16 16.5 11 8.6 23 31 60.5
HESL50-5 5.3 12.4 9.5 18 32 56
HESL50-6 6.5 12.4 9.5 18 32 56
HESL50-8 8.3 12.4 9.5 18 32 56
HESL50-10 10.3 12.4 9.5 18 32 59
HESL50-12 12.7 12.4 9.5 19 32 59
HESL50-14 14.8 12.4 9.5 21 34 67.8
HESL50-16 16.5 12.4 9.5 23 34 67.8
HESL70-5 5.3 15 12 22 36.5 67.4
HESL70-6 6.3 15 12 22 36.5 67.4
HESL70-8 8.3 15 12 22 36.5 67.4
HESL70-10 10.3 15 12 22 36.5 67.4
HESL70-12 12.7 15 12 22 36.5 67.4
HESL70-14 14.8 15 12 22 36.5 70
HESL70-16 16.5 15 12 24 35 70
HESL95-8 8.3 17 13.4 25 37.5 69.7
HESL95-10 10.3 17 13.4 25 37.5 69.7
HESL95-12 12.7 17 13.4 25 37.5 69.7
HESL95-14 14.8 17 13.4 25 37.5 73.3
HESL95-16 16.8 17 13.4 25 37.5 73.3
HESL95-20 20.9 17 13.4 28 34.5 73.3
HESL120-8 8.3 19 15 27.5 38 75
HESL120-1 10.3 19 15 27.5 38 75
HESL120-1 12.7 19 15 27.5 38 75
HESL120-1 14.8 19 15 27.5 38 79
HESL120-1 16.5 19 15 27.5 38 79
HESL120-2 20.9 19 15 27.5 38 79
HESL150-1 10.3 21.2 16.5 30.8 42 82
HESL150-1 12.7 21.2 16.5 30.8 42 82
HESL150-1 14.8 21.2 16.5 30.8 42 82
HESL150-1 16.5 21.2 16.5 30.8 42 86.4
HESL150-2 20.9 21.2 16.5 30.8 42 86.4
HESL185-1 10.3 23 19 34 45 88
HESL185-1 12.7 23 19 34 45 88
HESL185-1 14.8 23 19 34 45 88
HESL185-1 16.5 23 19 34 45 91.2
HESL185-2 20.9 23 19 34 45 91.2
HESL240-1 10.3 26.5 21 38.6 53 106.4
HESL240-1 12.7 26.5 21 38.6 53 106.4
HESL240-1 14.8 26.5 21 38.6 53 106.4
HESL240-1 16.5 26.5 21 38.6 53 106.4
HESL240-2 20.9 26.5 21 38.6 53 106.4
HESL300-1 12.7 30 24.5 43.8 57 113
HESL300-1 14.8 30 24.5 43.8 57 113
HESL300-1 16.5 30 24.5 43.8 57 113
HESL300-2 20.9 30 24.5 43.8 57 113
HESL400-1 12.7 35 27 49 59 119
HESL400-1 14.8 35 27 49 59 119
HESL400-1 16.5 35 27 49 59 119
HESL400-2 20.9 35 27 49 59 119
