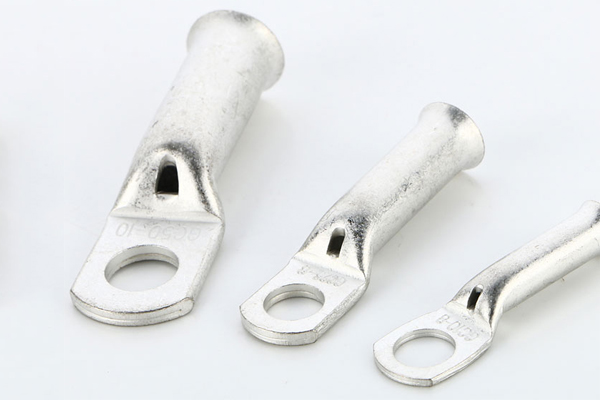

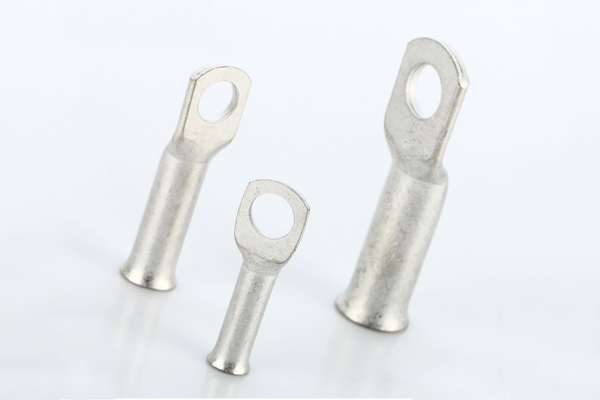

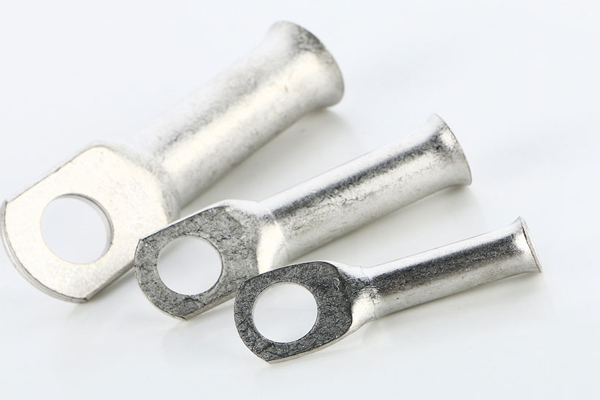

Bell Mouth Cable Lugs Copper Lug Terminals Crimping Lug HES
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Bell Mouth Cable Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Bell Mouth Cable Lugs tin plated to provide excellent corrosion resistance.
(In mm)
| Item No. | E | Dφ | dφ | W | B | L |
| HES10-4 | 4.3 | 6.6 | 4.5 | 11 | 13 | 30 |
| HES10-5 | 5.3 | 6.6 | 4.5 | 11 | 13 | 30 |
| HES10-6 | 6.5 | 6.6 | 4.5 | 11 | 13 | 30 |
| HES10-8 | 8.3 | 6.6 | 4.5 | 12.5 | 13 | 30 |
| HES10-10 | 10.3 | 6.9 | 4.5 | 16 | 13 | 34.1 |
| HES10-12 | 12.7 | 6.9 | 4.5 | 18 | 12 | 34.1 |
| HES16-5 | 5.3 | 7.5 | 5.5 | 11 | 14 | 30.7 |
| HES16-6 | 6.5 | 7.5 | 5.5 | 11 | 14 | 30.7 |
| HES16-8 | 8.3 | 7.5 | 5.5 | 12.5 | 13 | 30.7 |
| HES16-10 | 10.3 | 7.5 | 5.5 | 16 | 14 | 35.9 |
| HES16-12 | 12.7 | 8.1 | 5.5 | 18 | 13 | 35.9 |
| HES25-5 | 5.3 | 9.1 | 6.7 | 13 | 13 | 32.2 |
| HES25-6 | 6.5 | 9.1 | 6.7 | 13 | 13 | 32.2 |
| HES25-8 | 8.3 | 9.1 | 6.7 | 13 | 13 | 32.2 |
| HES25-10 | 10.3 | 9.1 | 6.7 | 16 | 14 | 36.9 |
| HES25-12 | 12.7 | 9.1 | 6.7 | 18 | 13 | 36.9 |
| HES25-14 | 14.8 | 9.1 | 6.7 | 20 | 13 | 38.9 |
| HES35-5 | 5.3 | 11 | 8.6 | 16 | 16 | 37.6 |
| HES35-6 | 6.5 | 11 | 8.6 | 16 | 16 | 37.6 |
| HES35-8 | 8.3 | 11 | 8.6 | 16 | 16 | 37.6 |
| HES35-10 | 10.3 | 11 | 8.6 | 17 | 16 | 41.5 |
| HES35-12 | 12.7 | 11 | 8.6 | 18 | 16 | 41.5 |
| HES35-14 | 14.8 | 11 | 8.6 | 20 | 16 | 43.5 |
| HES35-16 | 16.5 | 11 | 8.6 | 23 | 16 | 45.5 |
| HES50-5 | 5.3 | 12.4 | 9.5 | 18 | 17 | 41 |
| HES50-6 | 6.5 | 12.4 | 9.5 | 18 | 17 | 41 |
| HES50-8 | 8.3 | 12.4 | 9.5 | 18 | 17 | 41 |
| HES50-10 | 10.3 | 12.4 | 9.5 | 18 | 17 | 44 |
| HES50-12 | 12.7 | 12.4 | 9.5 | 19 | 17 | 44 |
| HES50-14 | 14.8 | 12.4 | 9.5 | 21 | 19 | 52.8 |
| HES50-16 | 16.5 | 12.4 | 9.5 | 23 | 19 | 52.8 |
| HES70-5 | 5.3 | 15 | 12 | 22.5 | 21.5 | 52.4 |
| HES70-6 | 6.3 | 15 | 12 | 22.5 | 21.5 | 52.4 |
| HES70-8 | 8.3 | 15 | 12 | 22.5 | 21.5 | 52.4 |
| HES70-10 | 10.3 | 15 | 12 | 22.5 | 21.5 | 52.4 |
| HES70-12 | 12.7 | 15 | 12 | 22 | 21.5 | 52.4 |
| HES70-14 | 14.8 | 15 | 12 | 22 | 21.5 | 55 |
| HES70-16 | 16.5 | 15 | 12 | 24 | 20 | 55 |
| HES95-8 | 8.3 | 17 | 13.4 | 25 | 22.5 | 54.7 |
| HES95-10 | 10.3 | 17 | 13.4 | 25 | 22.5 | 54.7 |
| HES95-12 | 12.7 | 17 | 13.4 | 25 | 22.5 | 54.7 |
| HES95-14 | 14.8 | 17 | 13.4 | 25 | 22.5 | 58.3 |
| HES95-16 | 16.5 | 17 | 13.4 | 25 | 22.5 | 58.3 |
| HES120-8 | 8.3 | 19 | 15 | 27.5 | 23 | 60 |
| HES120-10 | 10.3 | 19 | 15 | 27.5 | 23 | 60 |
| HES120-12 | 12.7 | 19 | 15 | 27.5 | 23 | 60 |
| HES120-14 | 14.8 | 19 | 15 | 27.5 | 23 | 64 |
| HES120-16 | 16.5 | 19 | 15 | 27.5 | 23 | 64 |
| HES150-10 | 10.3 | 21.2 | 16.5 | 30 | 27 | 67 |
| HES150-12 | 12.7 | 21.2 | 16.5 | 30 | 27 | 67 |
| HES150-14 | 14.8 | 21.2 | 16.5 | 30 | 27 | 67 |
| HES150-16 | 16.5 | 21.2 | 16.5 | 30 | 27 | 71.4 |
| HES150-20 | 20.9 | 21.2 | 16.5 | 30 | 27 | 71.4 |
| HES185-10 | 10.3 | 23 | 19 | 34 | 30 | 73 |
| HES185-12 | 12.7 | 23 | 19 | 34 | 30 | 73 |
| HES185-14 | 14.8 | 23 | 19 | 34 | 30 | 73 |
| HES185-16 | 16.5 | 23 | 19 | 34 | 30 | 76.2 |
| HES185-20 | 20.9 | 23 | 19 | 34 | 30 | 76.2 |
| HES240-10 | 10.3 | 26.5 | 21 | 38.6 | 38 | 91.4 |
| HES240-12 | 12.7 | 26.5 | 21 | 38.6 | 38 | 91.4 |
| HES240-14 | 14.8 | 26.5 | 21 | 38.6 | 38 | 91.4 |
| HES240-16 | 16.5 | 26.5 | 21 | 38.6 | 38 | 91.4 |
| HES240-20 | 20.9 | 26.5 | 21 | 38.6 | 38 | 91.4 |
| HES300-12 | 12.7 | 30 | 24.5 | 43.8 | 42 | 98 |
| HES300-14 | 14.8 | 30 | 24.5 | 43.8 | 42 | 98 |
| HES300-16 | 16.5 | 30 | 24.5 | 43.8 | 42 | 98 |
| HES300-20 | 20.9 | 30 | 24.5 | 43.8 | 42 | 98 |
| HES400-12 | 12.7 | 35 | 27 | 49 | 44 | 104 |
| HES400-14 | 14.8 | 35 | 27 | 49 | 44 | 104 |
| HES400-16 | 16.5 | 35 | 27 | 49 | 44 | 104 |
| HES400-20 | 20.9 | 35 | 27 | 49 | 44 | 104 |
