Battery Cable Lugs Wire Lugs Crimping Lugs DT

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

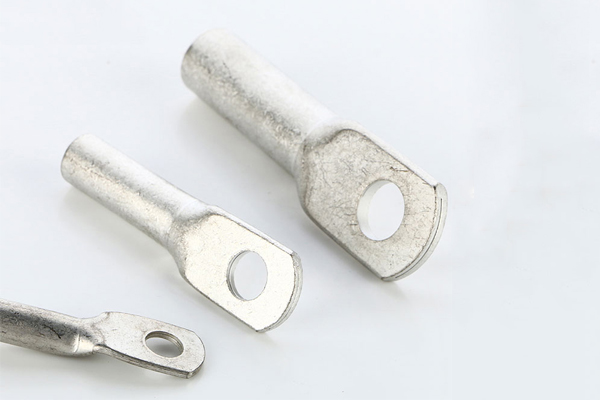

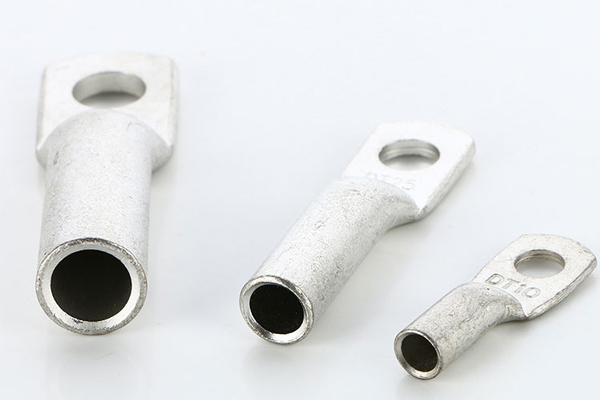

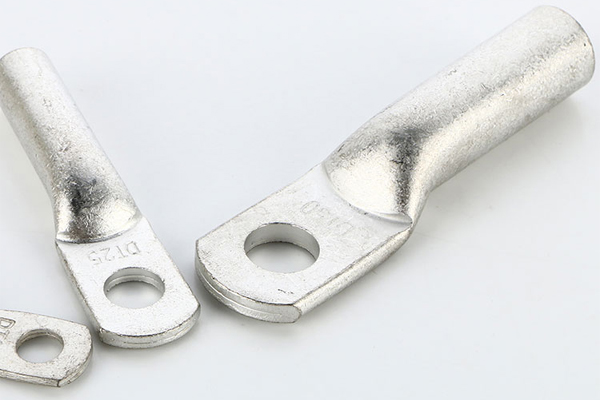

The Battery Cable Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Battery Cable Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. E Dφ dφ W B L
DT1.5-5 5.2 4 2.2 8 10 23
DT2.5-4 4.2 4.5 2.9 8 13 27
DT2.5-5 5.2 4.5 2.9 8 13 27
DT2.5-6 6.4 4.5 2.9 10 13 27
DT4-5 5.2 5.2 3.6 10 13 28
DT4-6 6.4 5.2 3.6 10 13 28
DT6-5 5.2 6 4.2 10 17 35
DT6-6 6.4 6 4.2 10 17 35
DT6-8 8.4 6 4.2 12 17 35
DT10-6 6.4 7 5 12.4 17 36
DT10-8 8.4 7 5 12.4 17 36
DT16-6 6.4 9 6 14 32 58
DT16-8 8.4 9 6 14 32 58
DT25-6 6.4 10 7 15 32 58
DT25-8 8.4 10 7 15 32 58
DT25-10 10.5 10 7 17.5 32 58
DT35-6 6.4 12 9 17.1 36 62
DT35-8 8.4 12 9 17.1 36 62
DT35-10 10.5 12 9 18 36 62
DT50-8 8.4 14 10 20 40 72
DT50-10 10.5 14 10 20 40 72
DT70-8 8.4 16 12 23 42 76
DT70-10 10.5 16 12 23 42 76
DT70-12 13 16 12 23 42 76
DT95-10 10.5 18 14 26 44 84
DT95-12 13 18 14 26 44 84
DT120-12 13 21 16 30 46 90
DT120-16 17 21 16 30 46 90
DT150-12 13 23 17 33 50 98
DT150-16 17 23 17 33 50 98
DT185-12 13 25 19 36 52 101
DT185-16 17 25 19 36 52 101
DT240-12 13 28 21.6 40 52 110
DT240-16 17 28 21.6 40 52 112
DT240-20 21 28 21.6 40 52 112
DT300-16 17 31 24 45 58 116
DT300-20 21 31 24 45 58 120
DT400-16 17 36.5 28.5 52 66 126
DT400-20 21 36.5 28.5 52 66 131
DT500-16 17 39 30.5 56 70 141
DT500-20 21 39 30.5 56 70 146
DT630-20 21 45 35.5 65 80 168
