Aluminum DIN Rail 35mm
Specification:
Material: Metal Aluminum
Product standard: EN50022
Working temperature: -40°C standing heat to 100°C
Color: Silver white

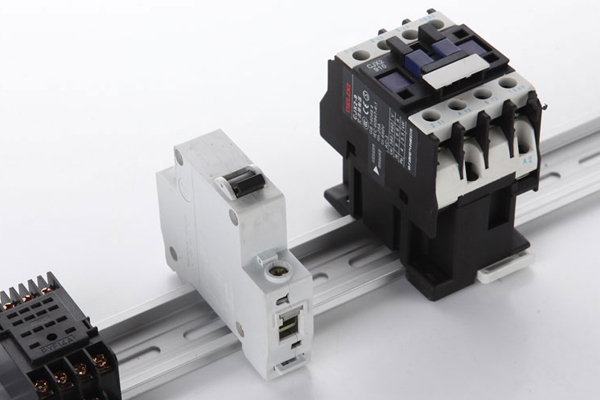

Usage: fixed on the panel then installed with electric parts
Features: perfect design, with huge pressure, rust resistant
The special length or special hole comes with MOQ., Rohs Available
| Item No. | Item No. | Material | Supporting | Packing/ |
| Outer width/Outer height/ | Outer width/Outer height/ | tools | carton | |
| Thickness/Length | Thickness/Length | |||
| ALC-35/7.5/1.1Catena | LSC-35/7.5/1.1Catena | |||
| ALC-35/7.5/1.1/1M | LSC-35/7.5/1.1/1M | Rohs approved Alu. metal | LS-1 | 50M |
| ALC-35/7.5/1.1/2M | LSC-35/7.5/1.1/2M | Rohs approved Alu. metal | 100M | |
| ALC-35/7.5/1.1/1M-N | LSC-35/7.5/1.1/1M-N | Rohs approved Alu. metal | 50M | |
| -Without hole | ||||
| ALC-35/7.5/1.1/2M-N | LSC-35/7.5/1.1/2M-N | Rohs approved Alu. metal | 100M | |
| -Without hole | ||||
| AL-35/7.5/1.5Catena | LS-35/7.5/1.5Catena | |||
| AL-35/7.5/1.5/1M | LS-35/7.5/1.5/1M | Rohs approved Alu. metal | LS-2 | 50M |
| AL-35/7.5/1.5/2M | LS-35/7.5/1.5/2M | Rohs approved Alu. metal | 100M | |
| AL-35/7.5/1.5/1M-N | LS-35/7.5/1.5/1M-N | Rohs approved Alu. metal | 50M | |
| -Without hole | ||||
| AL-35/7.5/1.5/2M-N | LS-35/7.5/1.5/2M-N | Rohs approved Alu. metal | 100M | |
| -Without hole | ||||
| AL-35/15/1.5Catena | LS-35/15/1.5Catena | |||
| AL-35/15/1.5/1M | LS-35/15/1.5/1M | Rohs approved Alu. metal | LS-3 | 30M |
| AL-35/15/1.5/2M | LS-35/15/1.5/2M | Rohs approved Alu. metal | 60M | |
| AL-35/15/1.5/1M-N | LS-35/15/1.5/1M-N | Rohs approved Alu. metal | 30M | |
| -Without hole | ||||
| AL-35/15/1.5/2M-N | LS-35/15/1.5/2M-N | Rohs approved Alu. metal | 60M | |
| -Without hole |
