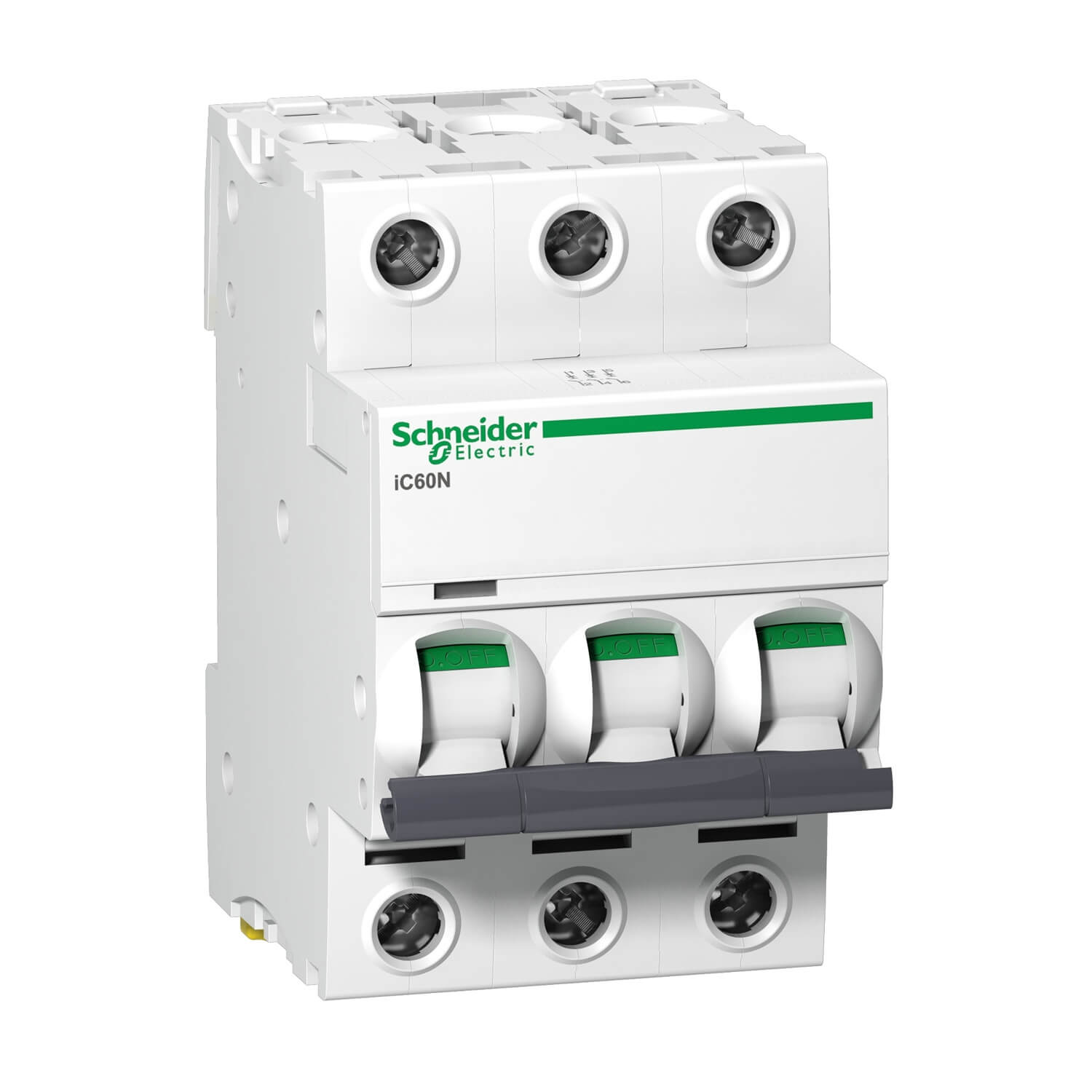

A9F44320 Acti9 iC60N 3P 20A C Miniature Circuit breaker
Specification:
| range |
Acti 9
|
|---|---|
| product name |
Disbo iC60
|
| product or component type |
Miniature circuit-breaker
|
| device short name |
IC60N
|
| poles description |
3P
|
| number of protected poles |
3
|
| [In] rated current |
20 A
|
| network type |
AC
|
| trip unit technology |
Thermal-magnetic
|
| curve code |
C
|
| breaking capacity |
6000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12…133 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 100…133 V DC conforming to EN/IEC 60947-2 |
| utilisation category |
Category A conforming to EN/IEC 60947-2
|
| network frequency |
50/60 Hz
|
|---|---|
| [Ue] rated operational voltage |
440 V AC 50/60 Hz
|
| magnetic tripping limit |
8 x In +/- 20 %
|
| [Ics] rated service breaking capacity |
27 kA 75 % conforming to EN/IEC 60947-2 – 12…133 V AC 50/60 Hz
15 kA 75 % conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz 4.5 kA 75 % conforming to EN/IEC 60947-2 – 440 V AC 50/60 Hz 6000 A 100 % conforming to EN/IEC 60898-1 – 415 V AC 50/60 Hz 15 kA 100 % conforming to EN/IEC 60947-2 – 100…133 V DC |
| limitation class |
3 conforming to EN/IEC 60947-2
|
| [Ui] rated insulation voltage |
500 V AC 50/60 Hz
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN/IEC 60947-2
|
| contact position indicator |
Yes
|
| control type |
Toggle
|
| local signalling |
Trip indicator
|
| mounting mode |
Clip-on
|
| mounting support |
Rail
|
| 9 mm pitches |
6
|
| height |
85 mm
|
| width |
54 mm
|
| depth |
78.5 mm
|
| net weight |
0.375 kg
|
| colour |
White
|
| mechanical durability |
20000 cycles
|
| electrical durability |
10000 cycles
|
| provision for padlocking |
Padlockable
|
| connections – terminals |
Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible |
| wire stripping length |
14 mm for top or bottom connection
|
| tightening torque |
2 N.m top or bottom
|
| earth-leakage protection |
Separate block
|
| standards |
EN/IEC 60898-1
EN/IEC 60947-2 |
|---|---|
| IP degree of protection |
IP20 conforming to IEC 60529
|
| pollution degree |
3 conforming to EN/IEC 60947-2
|
| tropicalisation |
2 conforming to IEC 60068-1
|
| relative humidity |
95 % at 55 °C
|
| ambient air temperature for operation |
-35…70 °C
|
| ambient air temperature for storage |
-40…85 °C
|
