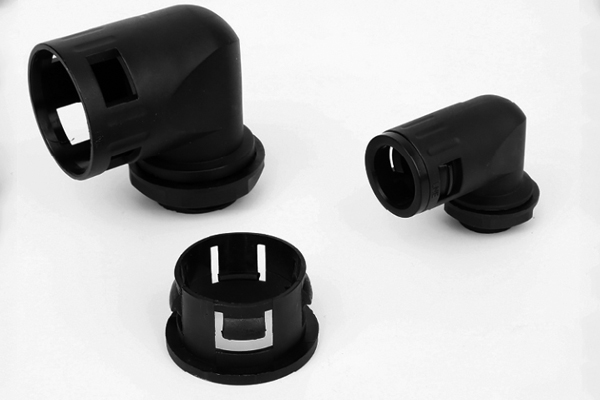

90 Degree Elbow Pipe Fittings Flexible NFM NFPG
Specification:
Material: Nylon PA66
Flammability Rating: UL94-2
Certificate: CE, RoHS
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic temperature: -20°C to 80°C, short time to 100°C
(In mm)
| Item | Conduit size | Thread O.D. AG |
Thread Length GL |
Item No. | |
| M12X1.5 | AD 10.0 | 12 | 10 | NFM12-10 | |
| M16X1.5 | AD 13.0 | 16 | 11.5 | NFM16-13 | |
| M16X1.5 | AD 15.8 | 16 | 12 | NFM16-15.8 | |
| M20X1.5 | AD 18.5 | 20 | 12 | NFM20-18.5 | |
| M20X1.5 | AD21.2 | 20 | 13 | NFM20-21.2 | |
| M25X1.5 | AD25.0 | 25 | 13 | NFM25-25 | |
| M25X1.5 | AD28.5 | 25 | 13 | NFM25-28.5 | |
| M32X1.5 | AD34.5 | 32 | 15 | NFM32-34.5 | |
| M40X1.5 | AD42.5 | 40 | 15 | NFM40-42.5 | |
| M50X1.5 | AD54.5 | 50 | 15 | NFM50-54.5 | |
| PG7 | AD 10.0 | 12.3 | 10 | NFPG7-10 | |
| PG9 | AD 13.0 | 15 | 11.5 | NFPG9-13 | |
| PG11 | AD 15.8 | 18.4 | 12 | NFPG 11-15.8 | |
| PG13.5 | AD 18.5 | 20.4 | 12 | NFPG 13.5-18.5 | |
| PG16 | AD21.2 | 22.3 | 13 | NFPG 16-21.2 | |
| PG19 | AD25.0 | 25 | 13 | NFPG 19-25 | |
| PG21 | AD28.5 | 28 | 13 | NFPG21-28.5 | |
| PG29 | AD34.5 | 36.7 | 15 | NFPG29-34.5 | |
| PG36 | AD42.5 | 46.7 | 15 | NFPG36-42.5 | |
| PG48 | AD54.5 | 59 | 16 | NFPG48-54.5 | |
