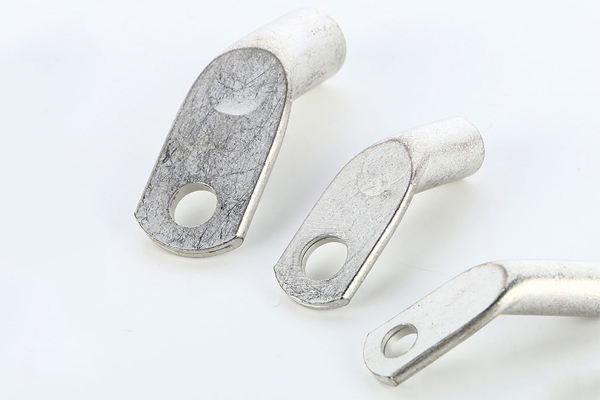

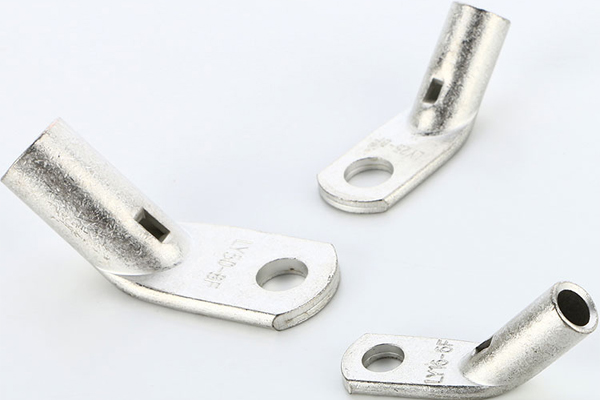

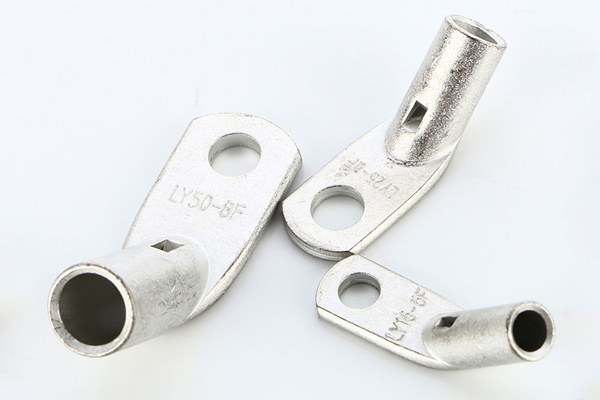

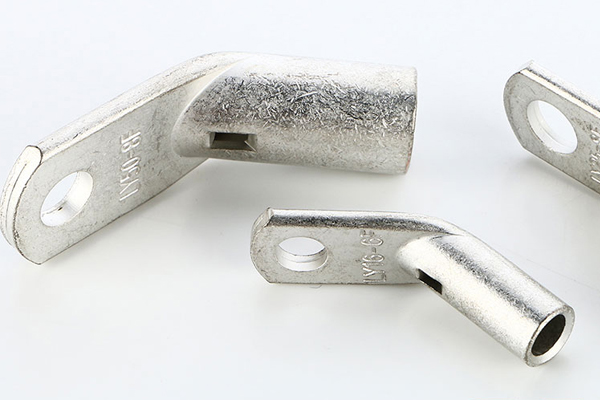

45 Degree Lugs Tin-plated Copper Wire Lugs LYF45
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The 45 Degree Lugs are made of the high-quality copper which ensures good conductivity at its user end. The 45 Degree Lugs are tin plated to provide excellent corrosion resistance.
(In mm)
| Item No. | DIMENSION | |||||
| E | DΦ | dΦ | W | B | L1 | |
| LYF45-10/6 | 6.5 | 8 | 5 | 13 | 19 | 18 |
| LYF45-10/8 | 8.4 | 8 | 5 | 13.5 | 19 | 20.5 |
| LYF45-16/6 | 6.5 | 9 | 6 | 13 | 23 | 18 |
| LYF45-16/8 | 8.4 | 9 | 6 | 13.5 | 23 | 20.5 |
| LYF45-25/6 | 6.5 | 11 | 8 | 17 | 24 | 18 |
| LYF45-25/8 | 8.4 | 11 | 8 | 17 | 24 | 20.5 |
| LYF45-25/10 | 10.5 | 11 | 8 | 17 | 24 | 25 |
| LYF45-35/6 | 6.5 | 13 | 9 | 18 | 30 | 18 |
| LYF45-35/8 | 8.4 | 13 | 9 | 18 | 30 | 20.5 |
| LYF45-35/10 | 10.5 | 13 | 9 | 18 | 30 | 25 |
| LYF45-50/8 | 8.4 | 14.5 | 11 | 21 | 31 | 26 |
| LYF45-50/10 | 10.5 | 14.5 | 11 | 21 | 31 | 30 |
| LYF45-50/12 | 13 | 14.5 | 11 | 21 | 31 | 32 |
| LYF45-70/8 | 8.4 | 17 | 13 | 25 | 35 | 26 |
| LYF45-70/10 | 10.5 | 17 | 13 | 25 | 35 | 30 |
| LYF45-70/12 | 13 | 17 | 13 | 25 | 35 | 32 |
| LYF45-95/10 | 10.5 | 20 | 15 | 29 | 40 | 30 |
| LYF45-95/12 | 13 | 20 | 15 | 29 | 40 | 32 |
| LYF45-95/16 | 17 | 20 | 15 | 29 | 40 | 36 |
| LYF45-120/10 | 10.5 | 22 | 17 | 32 | 43 | 30 |
| LYF45-120/12 | 13 | 22 | 17 | 32 | 43 | 32 |
| LYF45-120/16 | 17 | 22 | 17 | 32 | 43 | 36 |
