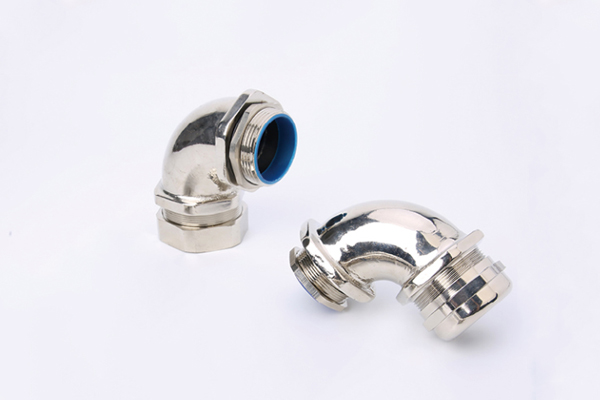

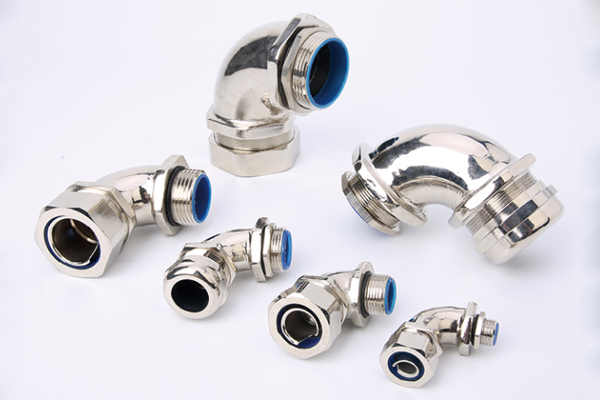

45 90 Degree Elbow Nickel-plated Brass Conduit Pipe Fitting Flexible BPF

Specification:

Material:
Nickel-Plated Brass
Retainer: TPE
Sealer: Modified RUbber
Mouth: Galvanized Iron sheet
Protection Rating: IP66
Work / Operating Temperature: -40 °C to 105 °C
90° degree connector mainly used for the connector with
SPR-AS flexible conduit.

45° degree connector mainly used for the connector with
SPR-PVC-AS, SPR-PU-AS, metal flexible conduit.

(In mm)

90° 45° Item Conduit Size ΦB GL D Spanner size Item No.
6.5 6 M12/M14/M16 AD10 19 8 33 17 BPF
10.0 8.5 M14/M16/M18 ADM 24 9 43 21
12.5 11.5 M18/M20/M22 AD17/AD19 28 10 55 25
16.5 15.5 M20/M22/25/M27 AD21 32.5 10 56 29
21.5 20.5 M25/M27/M30/M32 AD27 39 14 73 34
29.5 27.5 M32/M36/M40/M42 AD36 48 14 90 43
38.0 36.5 M40/M42/M48/M50 AD45 58 14 105 55
6.5 6 G1/47G3/8′ AD10 19 8 33 17
10.0 8.5 G3I8″ ADM 24 9 43 21
12.5 11.5 G3/87G1/2– AD17/AD19 28 10 55 25
16.5 15.5 G1/27G3/4– AD21 32.5 10 56 29
21.5 20.5 G3/4″ AD27 39 14 73 34
29.5 27.5 G17G1-1/4– AD36 48 14 90 43
38.0 36.5 G1-1/47G1-1/2″ AD45 58 14 105 55
6.5 6 PG7/PG9 AD10 19 8 33 17
10.0 8.5 PG9/PG11 ADM 24 9 43 21
12.5 11.5 PG11/PG13.5 AD17/AD19 28 10 55 25
16.5 15.5 PG13.5/PG16 AD21 32.5 10 56 29
21.5 20.5 PG16/PG21 AD27 39 14 73 34
29.5 27.5 PG21/PG29 AD36 48 14 90 43
38.0 36.5 PG29/PG36 AD45 58 14 105 55
