2 Hole Cable Lugs High Voltage Wire Lugs Terminal CLH2

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

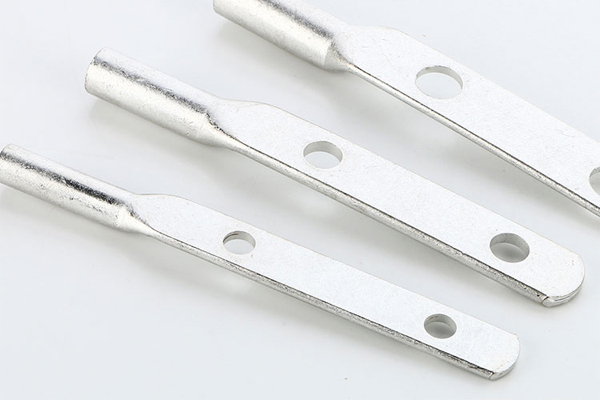

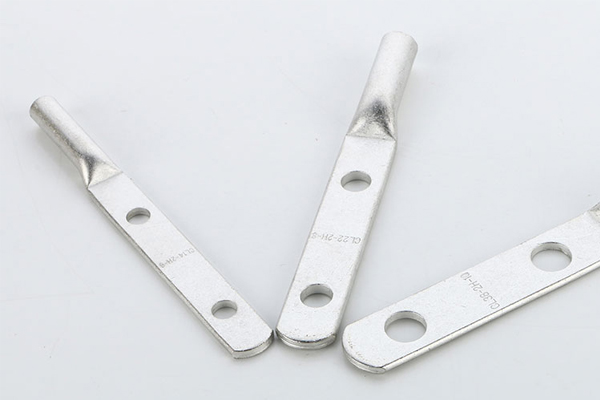

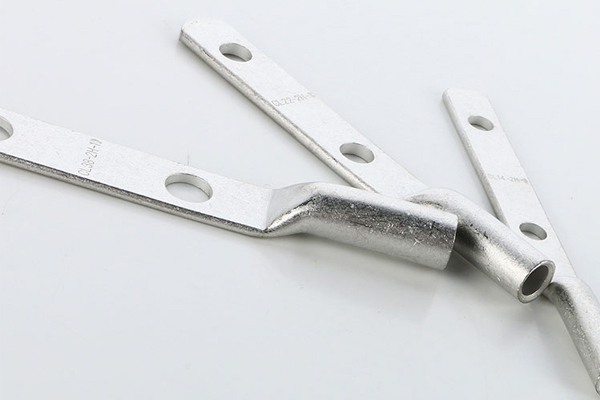

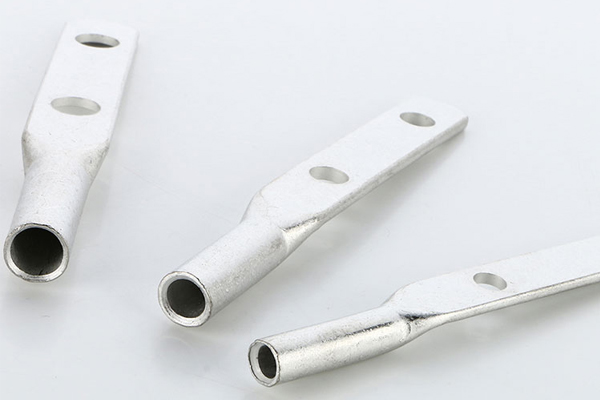

The 2 Hole Cable Lugs are made of the high-quality copper which ensures good conductivity at its user end. The 2 Hole Cable Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. E Dφ dφ W B L H
CL14-6-2D 6.4 8.8 5.8 13 28.5 117.5 45
CL22-8-2D 8.4 11.3 7.7 16 28.5 119.2 45
CL38-10-2D 10.5 12.4 9.8 18.3 31.7 120 45
CL38-12-2D 13 12.4 9.8 18.3 31.7 120 45
CL60-10-2D 10.5 14 11 20.5 40 130 45
CL60-12-2D 13 14 11 20.5 40 130 45
CL70-10-2D 10.5 15 12 21.4 40 130 45
CL70-12-2D 13 15 12 21.4 40 130 45
CL80-12-2D 13 16 13 23.2 40 130 45
CL100-12-2D 13 18 14 26 42 132 45
CL125-12-2D 13 20 16 29 42 135 45
CL150-12-2D 13 22 17 31 50 150 45
CL180-12-2D 13 23 18.2 33 50 150 45
CL200-12-2D 13 26 20 37 52.5 150 45
CL250-12-2D 13 28 22 40 50 150 45
CL325-12-2D 13 32 25 46 68 180 45
CL400-12-2D 13 37 30 54 60 180 45
CL500-12-2D 13 40 31 57.5 60 180 45
B-CL14-6-2D 6.4 8.3 5.8 13 28.5 117.5 45
B-CL22-8-2D 8.4 10.7 7.7 16 28.5 119.2 45
B-CL38-10-2D 10.5 11.9 9.8 17.5 31.7 120 45
B-CL38-12-2D 13 11.9 9.8 17.5 31.7 120 45
B-CL60-10-2D 10.5 13.5 11 19.5 40 130 45
B-CL60-12-2D 13 13.5 11 19.5 40 130 45
B-CL70-10-2D 10.5 14.5 12 21.4 40 130 45
B-CL70-12-2D 13 14.5 12 21.4 40 130 45
B-CL80-12-2D 13 15.5 13 23.2 40 130 45
B-CL100-12-2D 13 17.3 14 26 42 132 45
B-CL125-12-2D 13 19.3 16 28 42 135 45
B-CL150-12-2D 13 21.1 17 31 50 150 45
B-CL180-12-2D 13 22.1 18.2 33 50 150 45
B-CL200-12-2D 13 24.9 20 36 50 150 45
B-CL250-12-2D 13 26.9 22 39 50 150 45
B-CL325-12-2D 13 30.7 25 45 68 180 45
B-CL400-12-2D 13 35.7 30 54 60 180 45
B-CL500-12-2D 13 38.4 31 56 60 180 45
